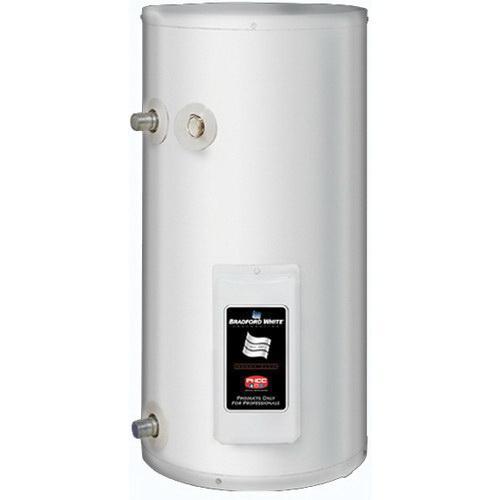

Bradford White® Electric Water Heater, 19 gal Capacity, 7 gph Recovery Rate, 1 Elements, 1500 to 6000 W Element Wattage, 120 V, 1 ph Phase, NPT Connection, 3/4 in Connection, 150 psi, Floor Mounting, 18 in Dia x 24-7/16 in H, Domestic/Import: Domestic, Screw-Type Immersion Element, Copper Element, Additional Information: Electric-Resistance Fuel
| Additional Information | : | Electric-Resistance Fuel |
| Capacity | : | 19 gal |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Dimensions | : | 18 in Dia x 24-7/16 in H |
| Domestic/Import | : | Domestic |
| Element Material | : | Copper |
| Element Type | : | Screw-Type Immersion |
| Element Wattage | : | 1500 to 6000 W |
| Lead-Free/Contains Lead | : | Lead-Free |
| Mounting Type | : | Floor |
| Number of Elements | : | 1 |
| Phase | : | 1 ph |
| Pressure Rating | : | 150 psi |
| Recovery Rate | : | 7 gph |
| Voltage Rating | : | 120 V |
- Fast-acting surface-mount thermostat with high-limit energy cut-off (manual reset) for safety
- Transfers heat directly and efficiently to the water. Screw-in style element
- An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining
- 1 in (25 mm) non-CFC foam insulation covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity
- 3/4 in (19 mm) NPT factory installed true dielectric fittings extend water heater life and simplify water line connections, located on the side for easier installation (fittings packaged separately inside carton)
- Provides added protection against corrosion for long-term, trouble-free service
