BrassCraft® SWB00-18N 71769

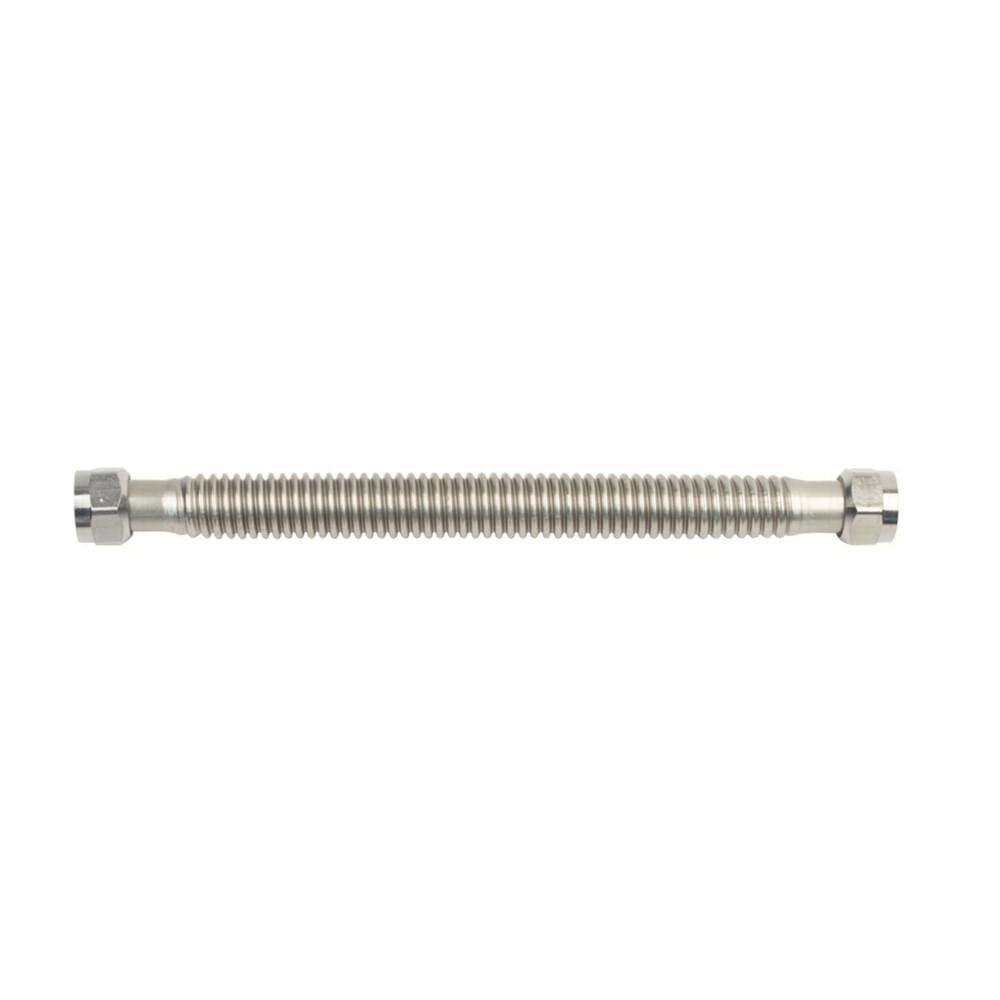

BrassCraft® SWB00 Series SWB00-18N Water Heater Connector, 3/4 in, FIP, 18 in L, 3/4 in ID, Stainless Steel
- Manufacturer: BrassCraft Manufacturing Company
- Brand Name: BrassCraft®
- Part#: 71769
- MPN: SWB00-18N
- UPC: 026613142586
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
BrassCraft® ProCoat® 3/4 in FIP inlet x 3/4 in FIP outlet stainless steel connector. Used to connect the water supply to your water heater, this connector delivers outstanding flexibility with advanced corrosion-resistance, both inside and outside. BrassCraft® patented integrated dielectric sleeve isolates dissimilar metals within the waterway, where galvanic and electrolytic corrosion have their greatest potential. This separation provides complete protection against galvanic corrosion that can deteriorate the connector and cause leaks. In addition, the integrated dielectric sleeve eliminates the need to install an additional dielectric union, reducing time and installation costs.
BrassCraft® Water Heater Connector, SWB00 Series, 3/4 in Connection, FIP Connection, 18 in Length, 3/4 in Inside Diameter, Stainless Steel, 125 psi, 40 to 180 deg F, For Use With: Water Softeners and Water Heaters
| Connection Size | : | 3/4 in |
| Connection Type | : | FIP |
| Inside Diameter | : | 3/4 in |
| Length | : | 18 in |
| Material | : | Stainless Steel |
| Pressure Rating | : | 125 psi |
| Series | : | SWB00 Series |
| Suitable For Use With | : | Water Softeners and Water Heaters |
| Temperature Rating | : | 40 to 180 deg F |
- Coated stainless steel tube
- Use to connect water supply to water heater
- Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixtures
- Exclusive ProCoat® clear coat, provides corrosion-resistance to deterioration from most common household chemicals, UV-rays and salt
- Designed, machined and assembled in the USA
