Intelligent gas control with proven millivolt powered technology and built-in piezo igniter. A standard, off-the-shelf thermopile converts heat energy from the pilot flame into electrical energy to operate the gas valve and microprocessor. No need for external electricity.

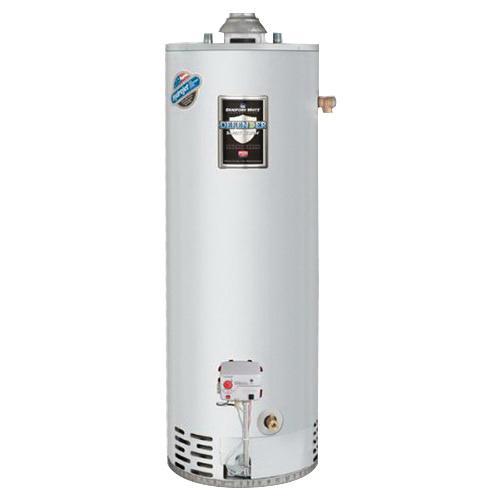

Bradford White® Gas Water Heater, 50 gal Capacity, 36000 Btu/hr, 10.6 kW, 81 gal First Hour Delivery, 0.63 Energy Factor, 41 gph Recovery Rate, 3 in, 4 in Vent, Atmospheric Vent, NPT Connection, 150 psi, Recovery Efficiency: 80 %, Floor Mounting, Liquid Propane Gas Fuel, Piezo Ignition, 160 deg F, 22 in Dia x 60-1/8 in H x 25-1/2 in D, Domestic/Import: Domestic
| BTU Rating | : | 36000 Btu/hr |
| Capacity | : | 50 gal |
| Connection Type | : | NPT |
| Dimensions | : | 22 in Dia x 60-1/8 in H x 25-1/2 in D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 80 % |
| Energy Factor | : | 0.63 |
| First Hour Delivery | : | 81 gal |
| Fuel Type | : | Liquid Propane Gas |
| Ignition System | : | Piezo |
| Ignition Type | : | Piezo |
| Lead-Free/Contains Lead | : | Lead-Free |
| Mounting Type | : | Floor |
| Power Rating | : | 10.6 kW |
| Pressure Rating | : | 150 psi |
| Recovery Efficiency | : | 80 % |
| Recovery Rate | : | 41 gph |
| Temperature Rating | : | 160 deg F |
| Vent Size | : | 3 in, 4 in |
| Vent Type | : | Atmospheric |
- Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
- Microprocessor controls burner operation for consistent and accurate water temperature levels up to 160 deg F (71 deg C)
- Exclusive multi-color LED light indicates operation status/service required
- Designed to be the safest, most reliable flammable vapor ignition-resistant system in the industry with a proven track record since 2003
- Flame arrestor is designed to prevent ignition of flammable vapor outside of the water heater
- Proven and reliable bi-metallic switch prevents burner and pilot operation in case of ongoing flammable vapors burning inside of the combustion chamber or restricted air flow
- No regular cleaning of air inlet openings or flame arrestor is required under normal conditions
- Offers a view into the combustion chamber to observe the operation of the pilot and burner
- An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining
- Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank
- NPT factory installed dielectric waterway with heat traps
- Provides added protection against corrosion for long-term, trouble-free service
- Durable tamper-proof design
