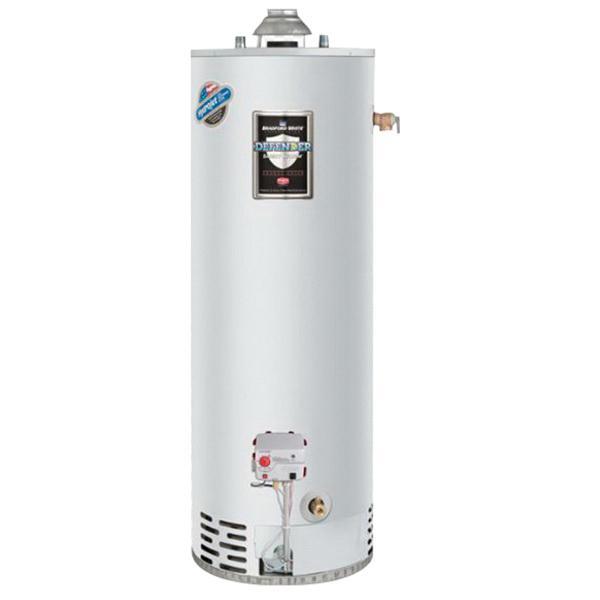

Bradford White® Gas Water Heater, 40 gal Capacity, 40000 Btu/hr, 11.7 kW, 75 gal First Hour Delivery, 0.64 Energy Factor, 43 gph Recovery Rate, 3 in, 4 in Vent, Atmospheric Vent, NPT Connection, 150 psi, Recovery Efficiency: 80 %, Floor Mounting, Natural Gas Fuel, Piezo Ignition, 160 deg F, 20 in Dia x 60-1/8 in H x 23-1/2 in D, Domestic/Import: Domestic
| BTU Rating | : | 40000 Btu/hr |
| Capacity | : | 40 gal |
| Connection Type | : | NPT |
| Dimensions | : | 20 in Dia x 60-1/8 in H x 23-1/2 in D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 80 % |
| Energy Factor | : | 0.64 |
| First Hour Delivery | : | 75 gal |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Piezo |
| Ignition Type | : | Piezo |
| Lead-Free/Contains Lead | : | Lead-Free |
| Mounting Type | : | Floor |
| Power Rating | : | 11.7 kW |
| Pressure Rating | : | 150 psi |
| Recovery Efficiency | : | 80 % |
| Recovery Rate | : | 43 gph |
| Temperature Rating | : | 160 deg F |
| Vent Size | : | 3 in, 4 in |
| Vent Type | : | Atmospheric |
- Intelligent gas control with proven millivolt powered technology
- Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
- Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
- An exclusive green LED light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting
- Flashing green LED provides positive indication that pilot is on
- High-strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
- Advanced ScreenLok® technology flame arrestor is designed to prevent ignition of flammable vapors outside of the water heater
- Proven and reliable bi-metallic switch prevents burner and pilot operation in case of ongoing flammable vapors burning inside of the combustion chamber or restricted air flow
- Maintenance-free, no regular cleaning of air inlet openings or flame arrestor is required under normal conditions
- Sight window offers a view into the combustion chamber to observe the operation of the pilot and burner
- Factory installed Hydrojet® total performance system
- Tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- Non-CFC foam insulation covers the sides and top of tank, reducing the amount of heat loss
- Pedestal base, factory installed heat traps
- Protective magnesium anode rods
- 3 x 4 in snaplock draft diverter
- Durable tamper-proof design low restriction brass drain valve
Instruction/Installation Manual
