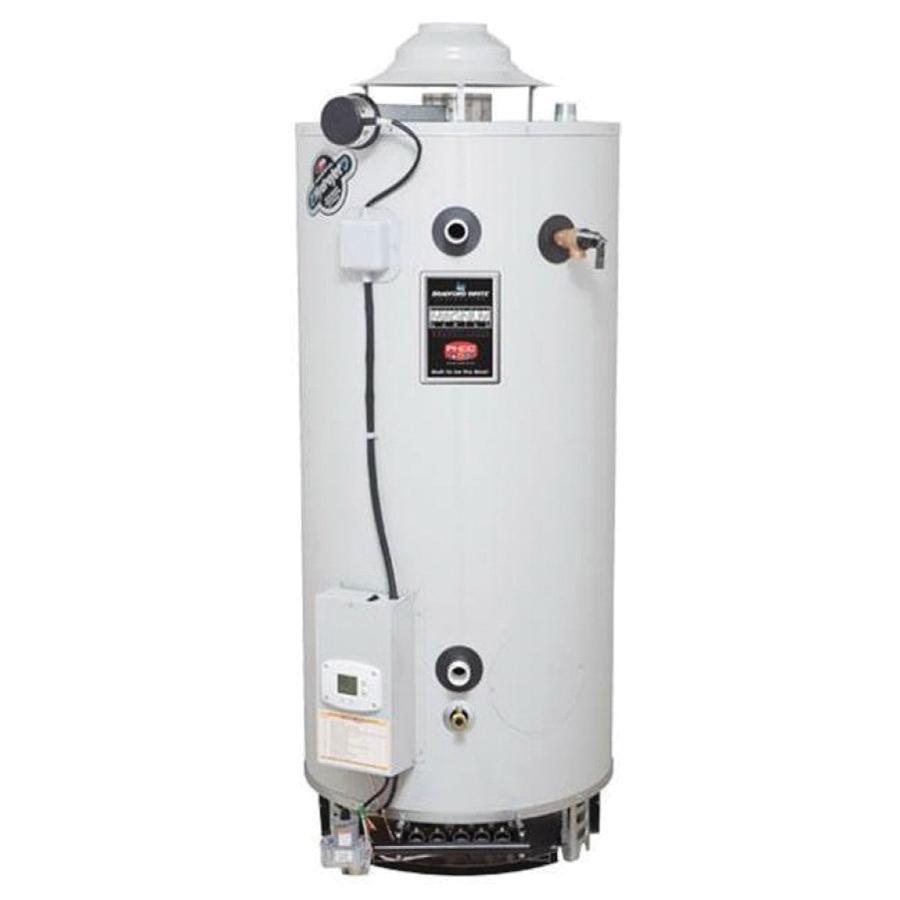

Bradford White® Gas Water Heater, 100 gal Capacity, 199999 Btu/hr, 58.6 kW, 139 gph, 194 gph, 485 gph Recovery Rate, 6 in Vent, Atmospheric Vent, 15 A, 120 V, 60 Hz, NPT Connection, 150 psi, Recovery Efficiency: 80 %, Floor Mounting, Natural Gas Fuel, Electronic Ignition System, 180 deg F, 30-1/4 in Dia x 73-1/4 in H x 34-1/2 in D, Domestic/Import: Domestic
| Amperage Rating | : | 15 A |
| BTU Rating | : | 199999 Btu/hr |
| Capacity | : | 100 gal |
| Connection Type | : | NPT |
| Dimensions | : | 30-1/4 in Dia x 73-1/4 in H x 34-1/2 in D |
| Domestic/Import | : | Domestic |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Electronic |
| Mounting Type | : | Floor |
| Power Rating | : | 58.6 kW |
| Pressure Rating | : | 150 psi |
| Recovery Efficiency | : | 80 % |
| Recovery Rate | : | 139 gph, 194 gph, 485 gph |
| Temperature Rating | : | 180 deg F |
| Vent Size | : | 6 in |
| Vent Type | : | Atmospheric |
| Voltage Rating | : | 120 V |
- Intelligent proven design combines temperature control, diagnostic codes and system ignition functions into a single control board with a digital LCD display, control panel cover tilts down for ease of wiring and service
- Two different digitally displayed operation modes have the capability of adjusting the temperature setting up to 180 deg F (82 deg C) and adjusting the degree setting (deg F to deg C or deg C to deg F)
- Eight different digitally displayed service modes can be easily cycled through by pressing the select button
- Lock the maximum temperature setting that can be adjusted in operation mode
- Display the average water temperature (for two sensor models) and see the upper and lower temperature sensor readings
- High voltage, low current electricity is sent to the pilot electrode initiating a spark to ignite the pilot gas, saves pilot gas during standby periods, the pilot flame only operates when there's a call for heat
- Reduces stand-by loss, saving gas consumption and improving overall efficiency
- Cold-water inlet sediment reducing device helps prevent sediment build-up in the tank
- An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining
- Non-CFC foam covers the sides and top of the tank, reducing heat loss
- This results in less energy consumption, improved efficiencies and jacket rigidity
- 1-1/2 in (38 mm) NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
- Allows inspection of tank interior and facilitates the removal of sediment deposits
