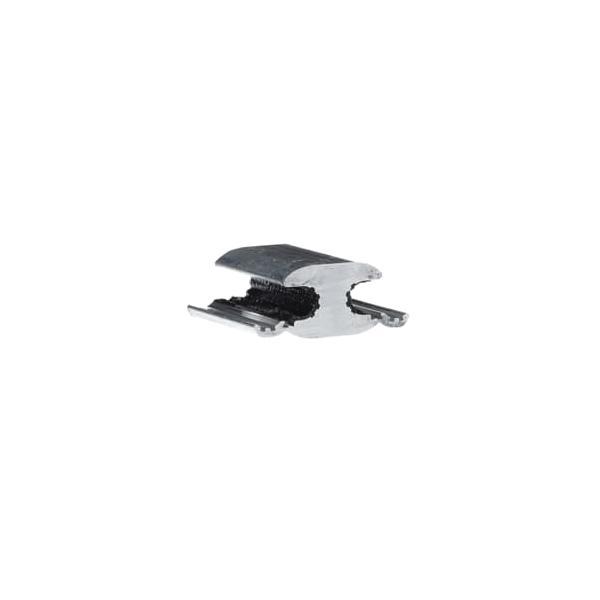

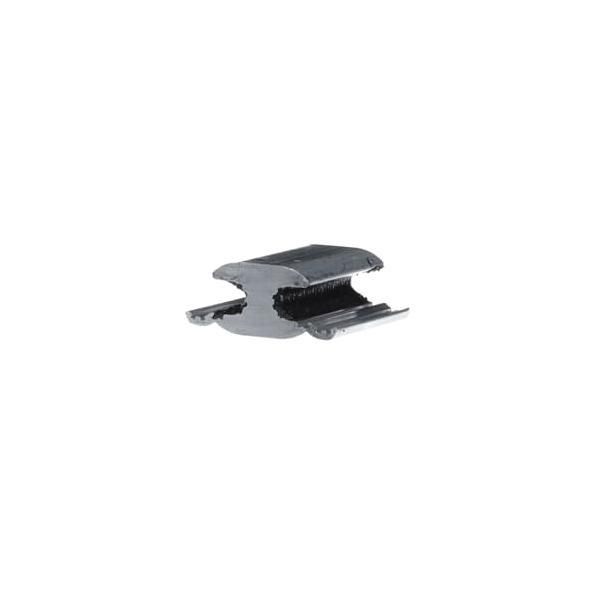

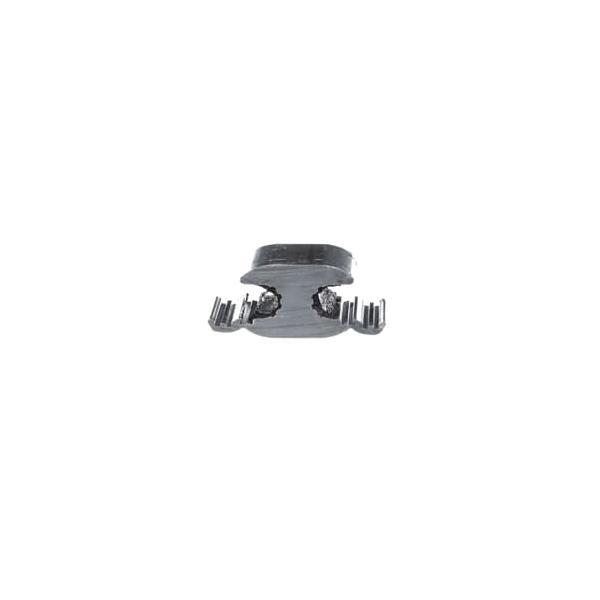

Blackburn® Tap Connector, Series: WR Series, H-Type Connector, O Die Index, Solid, Stranded Conductor, 6 to 2/0 AWG Tap Wire Size Range, 6 to 1 AWG Stranded, 6 to 2 AWG Solid Branch Wire Size Range, Aluminum, 90 deg C, 1-7/16 in Length, Additional Information: 2-Conductor
| Additional Information | : | 2-Conductor |
| Branch Wire Size Range | : | 6 to 1 AWG Stranded, 6 to 2 AWG Solid |
| Conductor Type | : | Solid, Stranded |
| Connector Type | : | H-Type |
| Die Index | : | O |
| Length | : | 1-7/16 in |
| Material | : | Aluminum |
| Series | : | WR Series |
| Tap Wire Size Range | : | 6 to 2/0 AWG |
| Temperature Rating | : | 90 deg C |
- Made of 1350 aluminum alloy for high strength and high conductivity
- Standard compression tools and dies install all sizes - no special tools needed
- Field proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape
- Fold-in tabs provide tab interlock as tool closes
- Pre-filled with oxide inhibitor held captive in the rib/connection area
