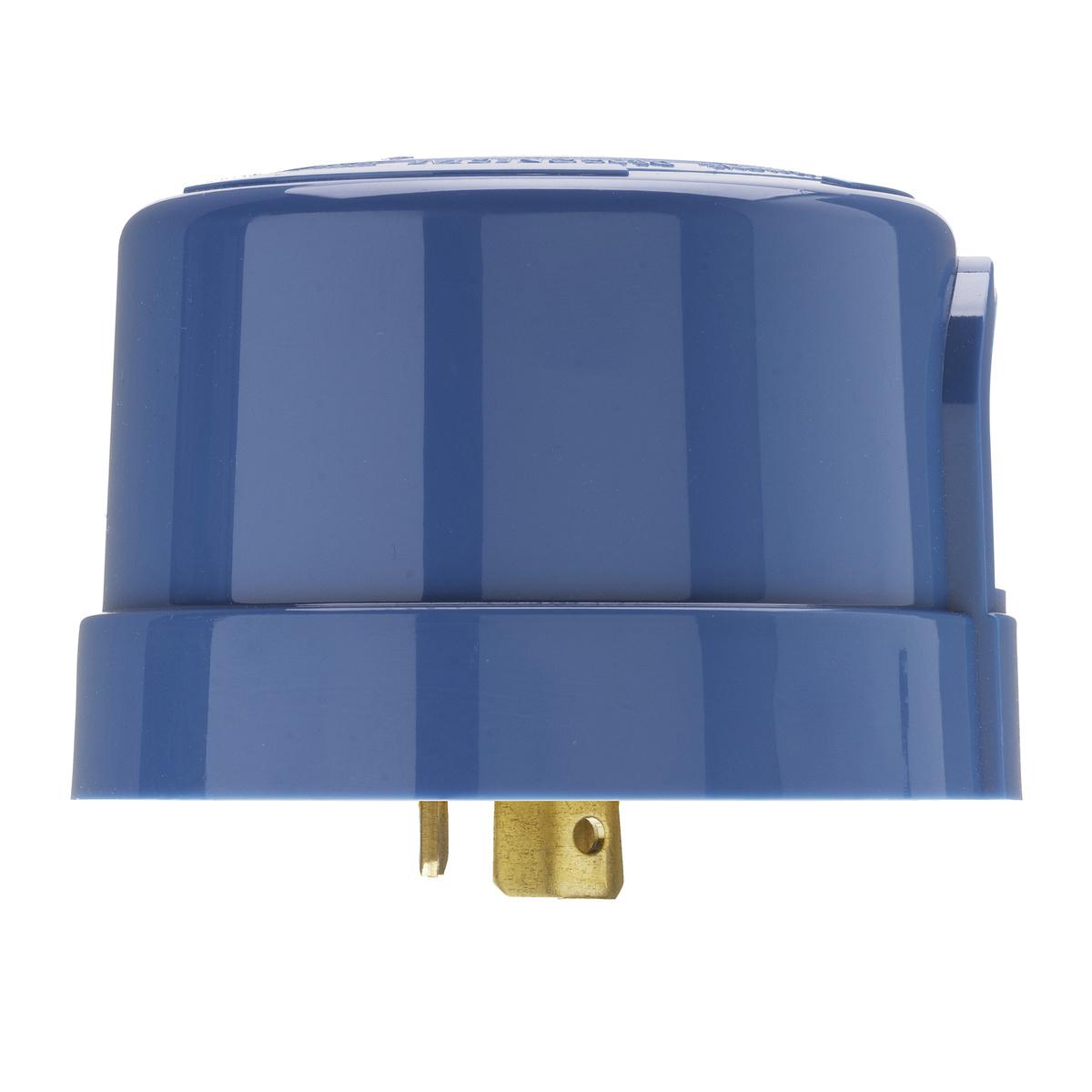

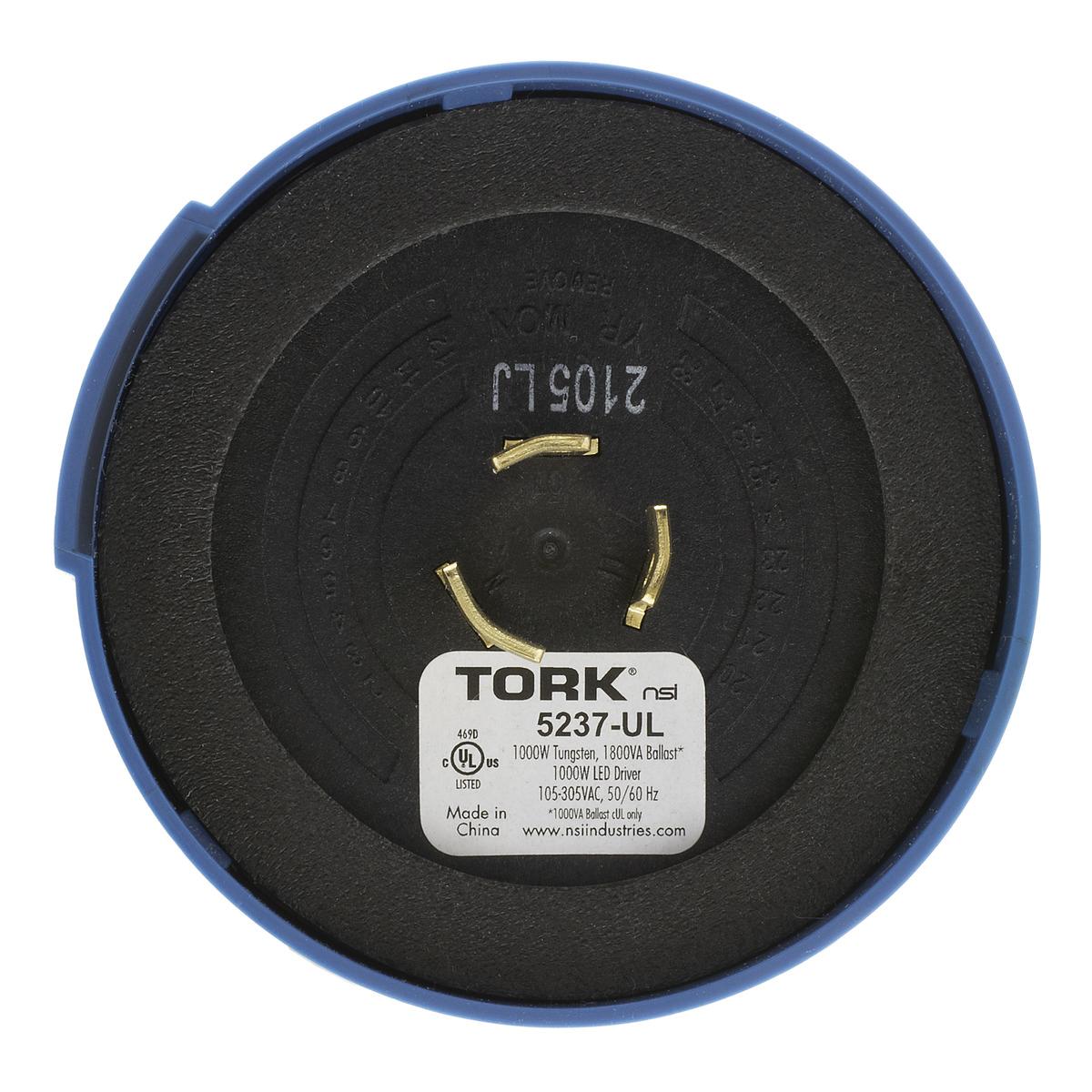

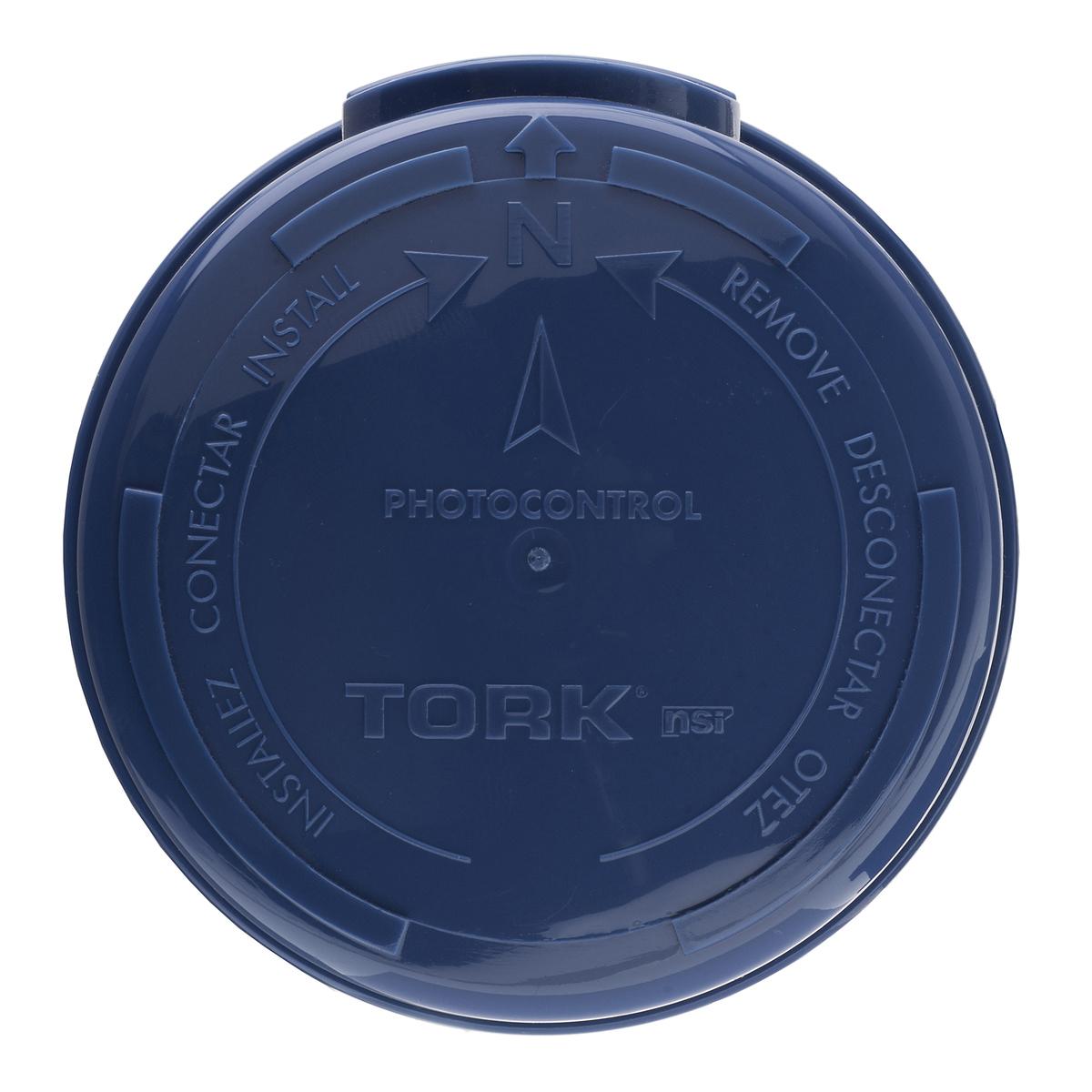

Tork® turn lock photocontrol light sensors provide a simple way to automate street and highway lighting controls with locking-type receptacles. Use these sensors on lighting fixtures requiring an instant response to changes in ambient light level.
Tork® Photocontrol, 105/305 VAC, 1000 W, 1800 VA Tungsten, 50/60 Hz, Electronic Sensor, 1.5 fc Foot Candle On, 2.25 fc Foot Candle Off, 3 to 5 s Delay, 10000 cycles Operating Cycles, -40 to 158 deg F, Polycarbonate Housing, Blue
| Color | : | Blue |
| Foot Candle Off | : | 2.25 fc |
| Foot Candle On | : | 1.5 fc |
| Frequency Rating | : | 50/60 Hz |
| Housing Material | : | Polycarbonate |
| Operating Cycles | : | 10000 cycles |
| Sensor Type | : | Electronic |
| Temperature Rating | : | -40 to 158 deg F |
| Time Delay | : | 3 to 5 s |
| Tungsten Rating | : | 1000 W, 1800 VA |
| Voltage Rating | : | 105/305 VAC |
- Use turn lock photocontrol light sensors on streets, highways and other luminaries equipped with locking-type receptacles where the most stringent surge protection is needed
- This photocontrol's superior light sensing technology is driven by a molded, sealed, IR filtered non-drifting silicone sensor designed to duplicate a human eye response
- Key features include a time delay which prevents stray lights from turning the control off and a UV stabilized polycarbonate housing to protect against extreme weather elements
