Leviton®'s black and white line of industrial-grade plugs, connectors, flanged inlets and outlets offer superior performance, long-lasting reliability and features that are backed by a limited lifetime warranty.

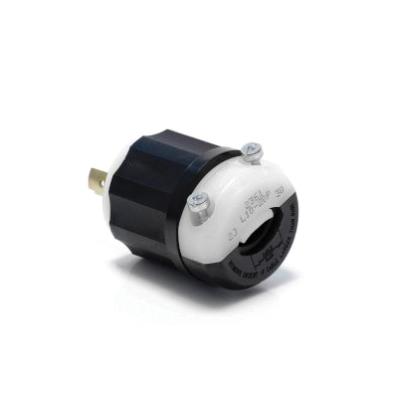

Leviton® Black & White® Locking Plug, Black & White Series, 125/250 V, 20 A, 1 hp, 2 hp, 3 Poles, 3 Wires, 0.385 to 0.78 in Cord Diameter, 16 to 10 AWG Wire, NEMA Rating: NEMA L10-20P, Screw Terminal, 2000 V Dielectric Strength, Nylon Housing, Brass Blade, Brass Contact, Thermoplastic Back Cover, Brass Screw, Black/White, 2.08 in Width, -40 to 60 deg C
| Amperage Rating | : | 20 A |
| Back Cover Material | : | Thermoplastic |
| Blade Material | : | Brass |
| Color | : | Black/White |
| Contact Material | : | Brass |
| Cord Diameter | : | 0.385 to 0.78 in |
| Dielectric Strength | : | 2000 V |
| HP Rating | : | 1 hp, 2 hp |
| Housing Material | : | Nylon |
| NEMA Rating | : | NEMA L10-20P |
| Number of Poles | : | 3 |
| Number of Wires | : | 3 |
| Screw Material | : | Brass |
| Series | : | Black & White Series |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 125/250 V |
| Width | : | 2.08 in |
| Wire Size | : | 16 to 10 AWG |
- One-piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
