Commercial-grade receptacles are rated for variety of standard configurations. Each duplex is equipped with break-off plaster ears and tabs to allow for easy alignment and 2-circuit conversion. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room.

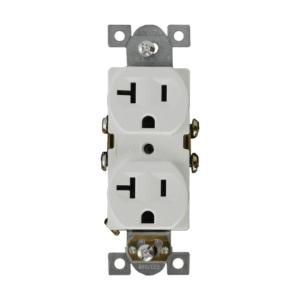

ENERLITES Duplex Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Commercial Grade, NEMA Rating: NEMA 5-20R, Shallow Construction, Self-Grounding Grounding, Side Wired Terminal, 14 AWG Conductor, Screw Mounting, Thermoplastic Housing, Steel Strap, Thermoplastic Cover, White, -104 to 160 deg F, 1.31 in Length, 1.08 in Width, 4.06 in Height
| Amperage Rating | : | 20 A |
| Color | : | White |
| Conductor Size | : | 14 AWG |
| Construction | : | Shallow |
| Cover Material | : | Thermoplastic |
| Grade | : | Commercial |
| Grounding | : | Self-Grounding |
| Height | : | 4.06 in |
| Housing Material | : | Thermoplastic |
| Length | : | 1.31 in |
| Mounting Type | : | Screw |
| NEMA Rating | : | NEMA 5-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Strap Material | : | Steel |
| Temperature Rating | : | -104 to 160 deg F |
| Terminal Type | : | Side Wired |
| Voltage Rating | : | 125 V |
| Width | : | 1.08 in |
- Impact-resistant thermoplastic material
- Removable yoke tabs
- Automatically ground to outlet metal box
