Peace of mind, all the time. The SmartlockPro self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton®'s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro self-test GFCI is the smart choice in ground fault circuit interrupter protection.

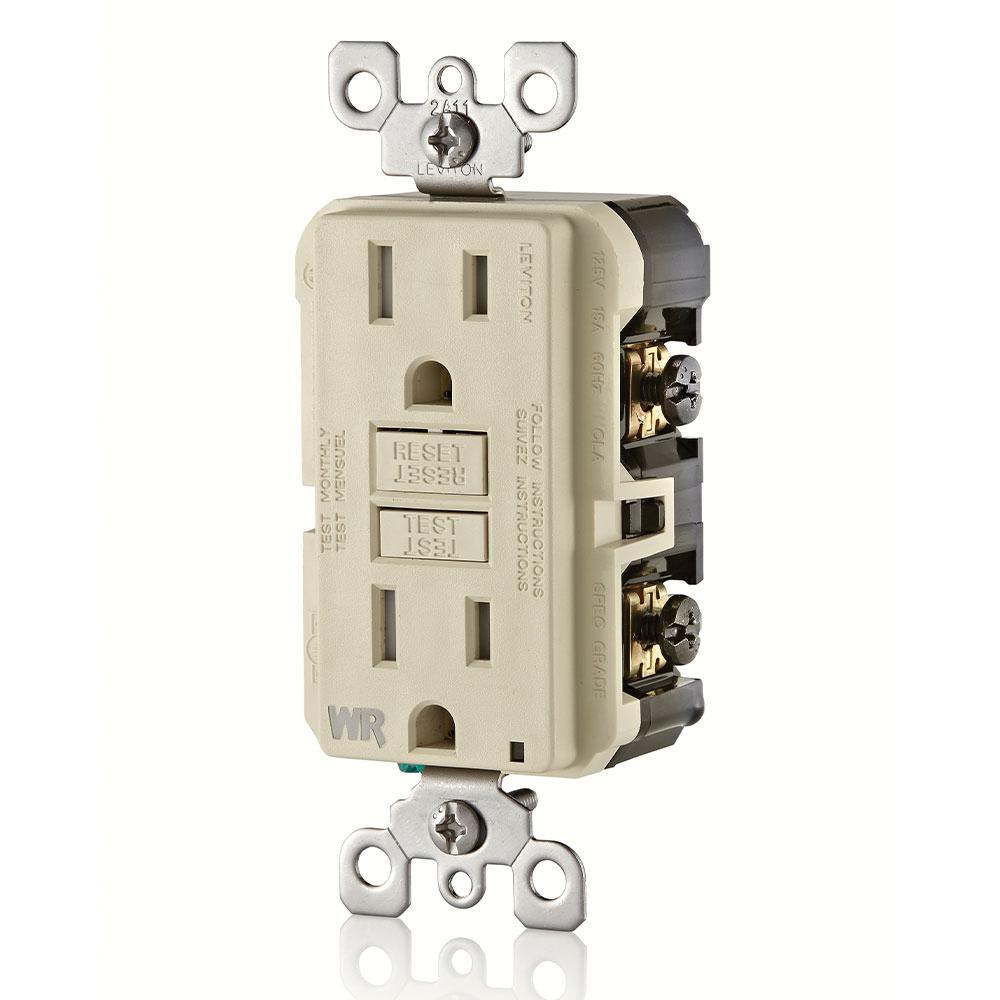

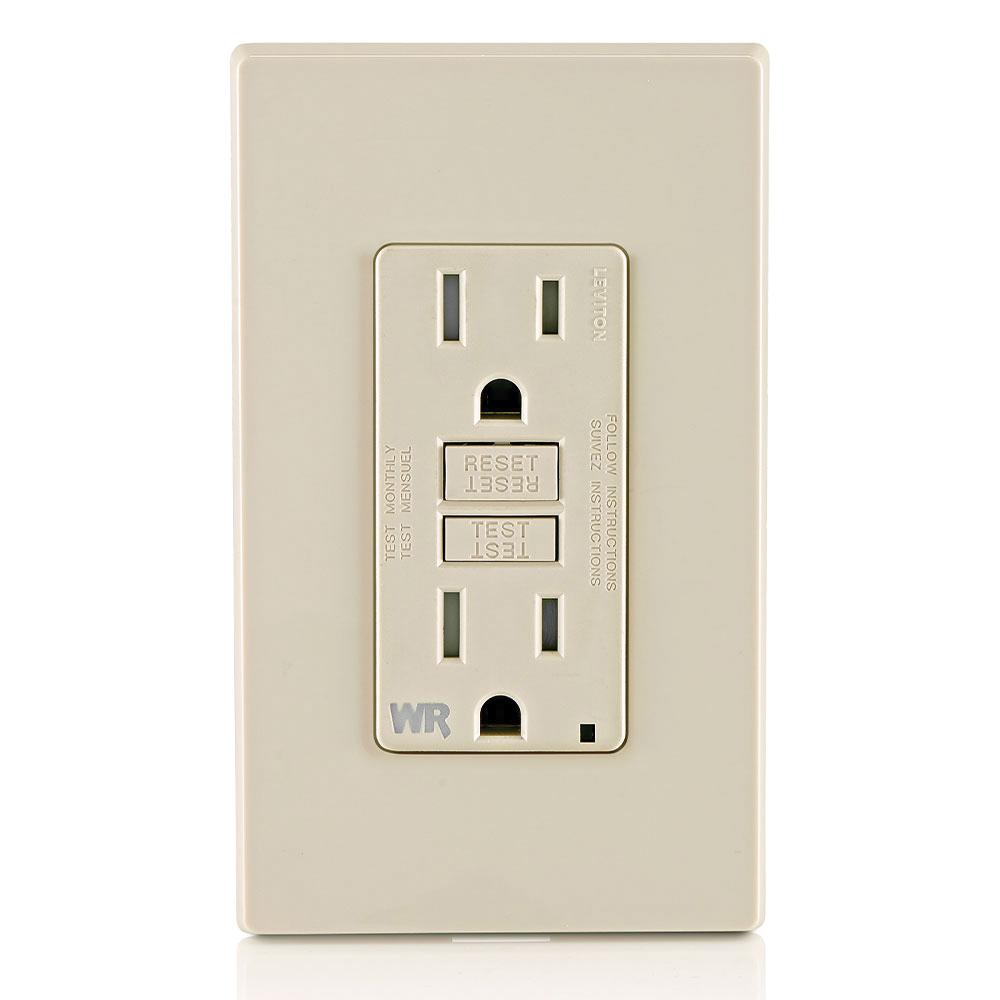

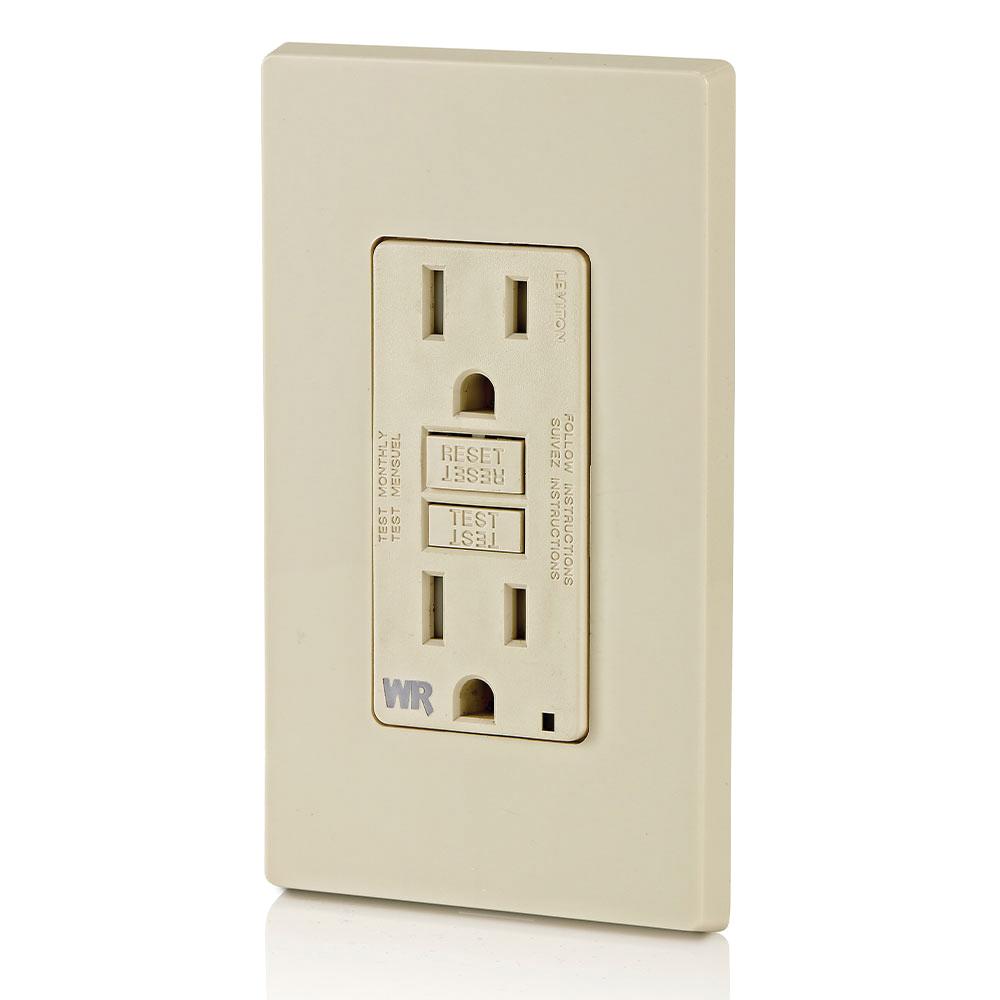

SmartlockPro® GFCI Receptacle, 120 VAC, 5 A, 1 hp, 10 kA Short Circuit, 2 Poles, 3 Wires, 14 to 10 AWG Wire, Green-Grounding Grounding, NEMA Rating: NEMA 5-15R, 1250 V Dielectric Strength, LED Indicator, Screw Terminal, Polycarbonate Body, Brass Contact, Light Almond, -35 to 66 deg C
| Amperage Rating | : | 5 A |
| Body Material | : | Polycarbonate |
| Color | : | Light Almond |
| Contact Material | : | Brass |
| Dielectric Strength | : | 1250 V |
| Grounding | : | Green-Grounding |
| Indicator Type | : | LED |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Power Rating | : | 1 hp |
| Short Circuit Rating | : | 10 kA |
| Temperature Rating | : | -35 to 66 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 120 VAC |
| Wire Size | : | 14 to 10 AWG |
- Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 sec
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pull-out
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
