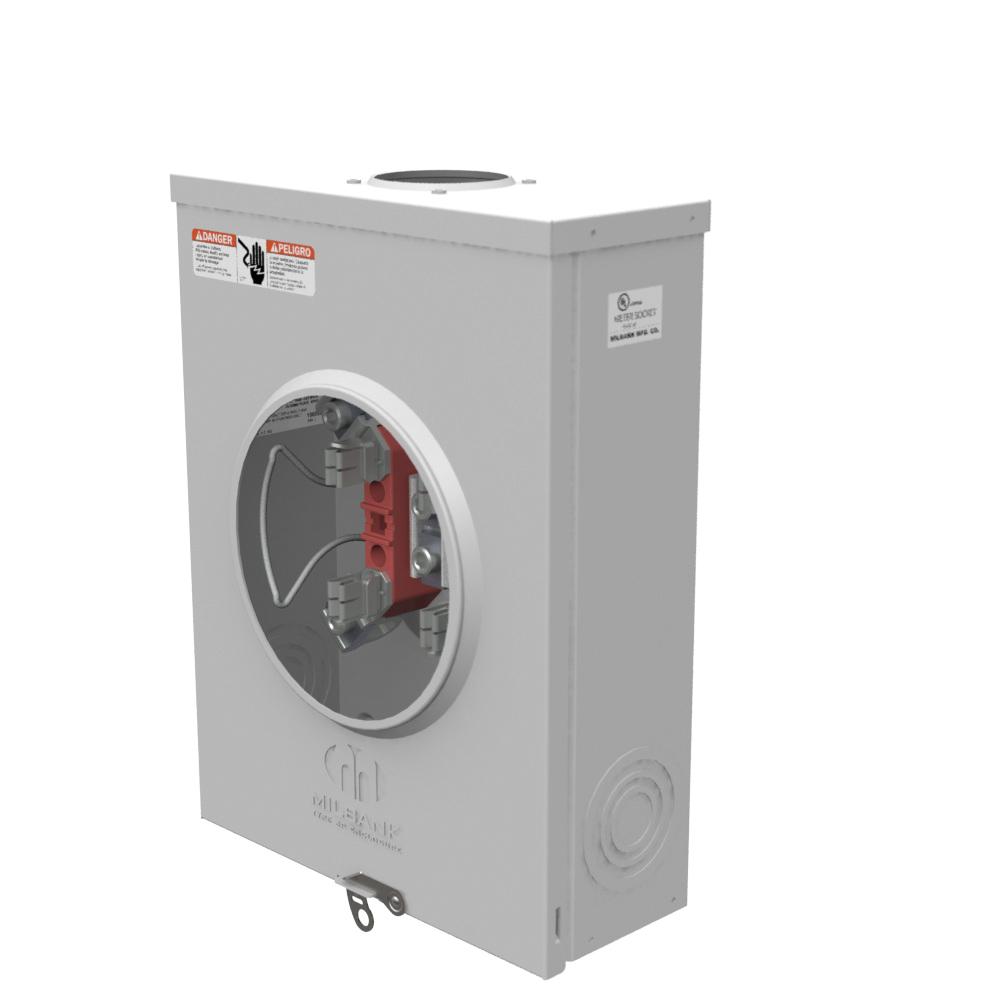

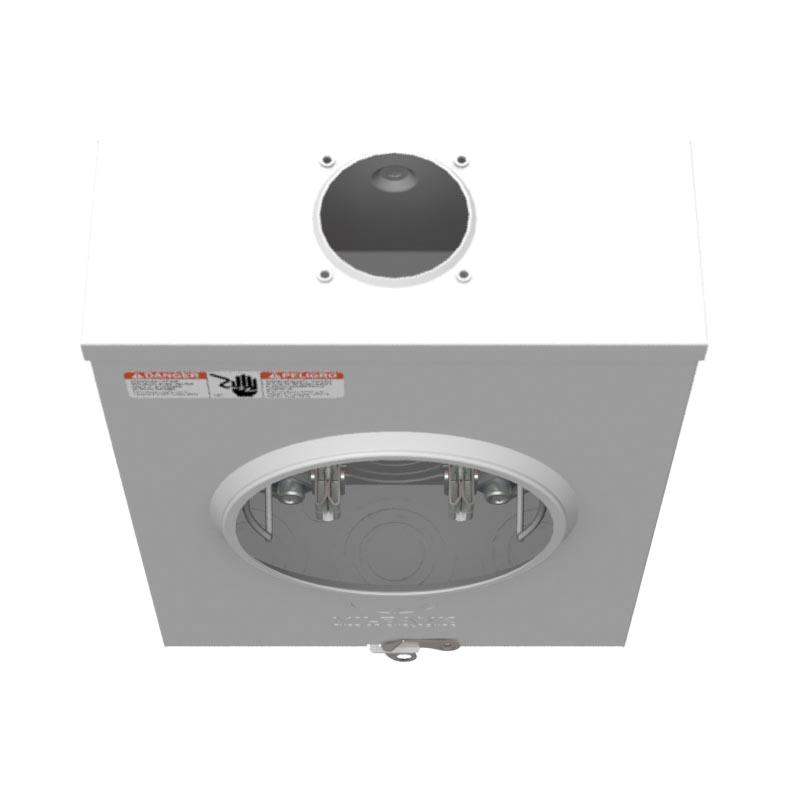

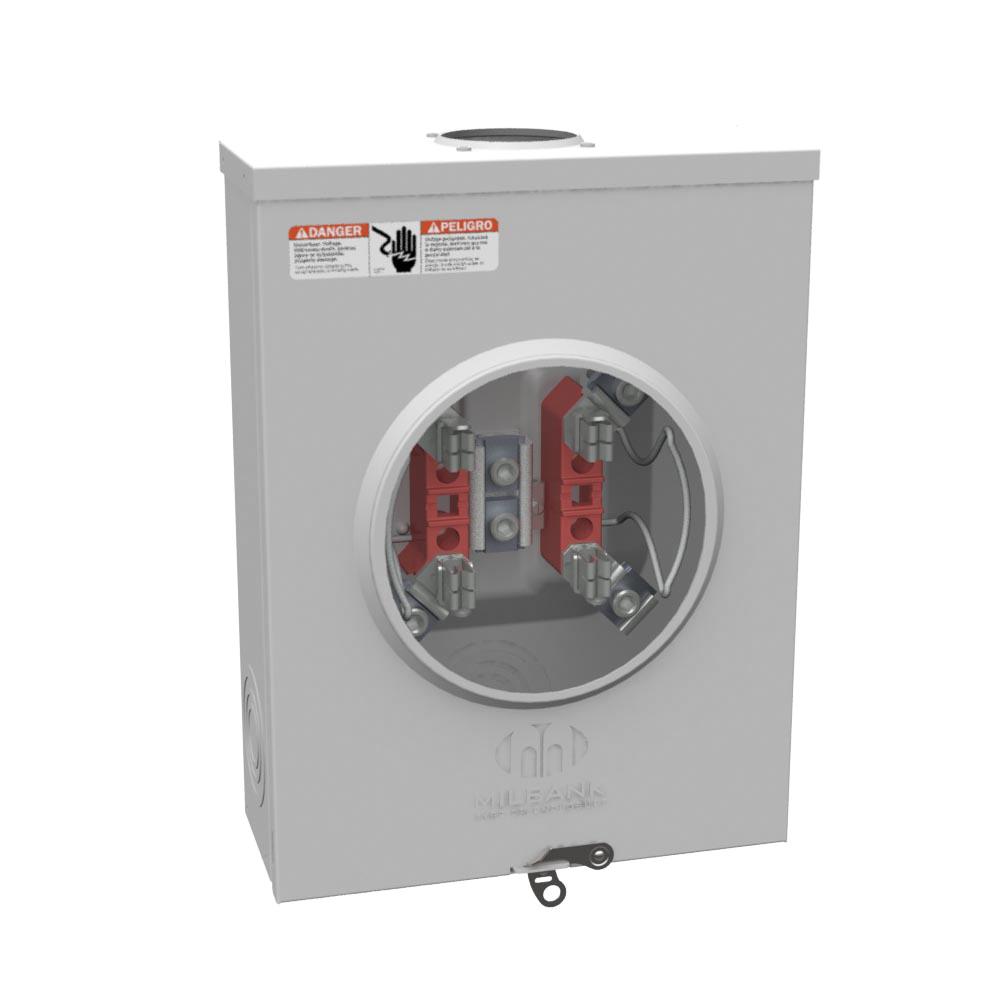

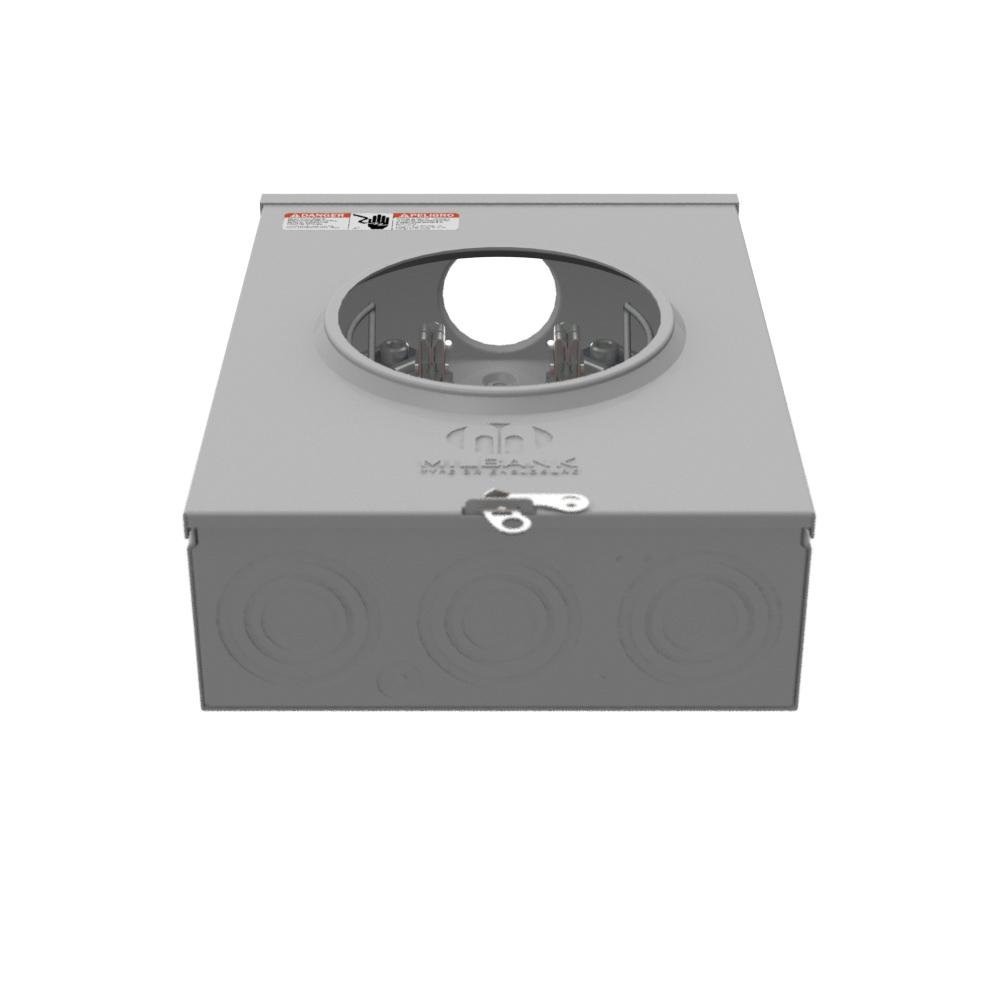

Milbank® Meter Socket, 200 A, 600 VAC, 60 Hz, Ringless Cover, 1 ph, Side Wireway, Underground Feed, 4 Jaws, Small Open, Lay-In Terminal, Glass Polyester Insulation, Steel, 6 AWG to 350 kcmil Wire, Surface Mount, NEMA 3R, 4.125 in L x 11 in W x 14.563 in H, Powder-Coated, Additional Information: No Bypass
| Additional Information | : | No Bypass |
| Amperage Rating | : | 200 A |
| Cover Type | : | Ringless |
| Dimensions | : | 4.125 in L x 11 in W x 14.563 in H |
| Feed Type | : | Side Wireway, Underground |
| Finish | : | Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Hub Type | : | Small Open |
| Insulation Type | : | Glass Polyester |
| Material | : | Steel |
| Mounting Type | : | Surface |
| NEMA Rating | : | NEMA 3R |
| Number of Jaws | : | 4 |
| Phase | : | 1 ph |
| Terminal Type | : | Lay-In |
| Voltage Rating | : | 600 VAC |
| Wire Size | : | 6 AWG to 350 kcmil |
