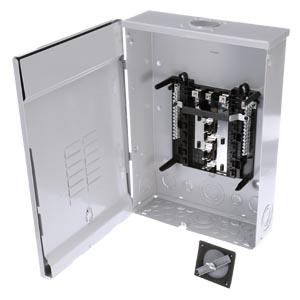

Siemens low voltage ES Series load center. Main lug with 12 1 in spaces allowing max 24 circuits. 3-phase 4-wire system rated 120/240 V or 120/208 V (125 A) 100 kA interrupt. Special features - aluminum bus, gray trim, NEMA Type 3R enclosure for outdoor use.
Siemens Main Lug Load Center, Series: ES Series, 125 A, 120/240 V, 100 kA Interrupt, 4-Wire Wiring Configuration, 3 ph, 12 Spaces, 24 Circuits, Aluminum Bus, Surface Mount, NEMA 3R, 21 in L x 14.25 in W x 3.88 in D Enclosure Type Box Size, Powder-Coated, Gray
| Amperage Rating | : | 125 A |
| Bus Material | : | Aluminum |
| Color | : | Gray |
| Enclosure Type Box Size | : | 21 in L x 14.25 in W x 3.88 in D |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Powder-Coated |
| Interrupt Rating | : | 100 kA |
| Mounting Type | : | Surface |
| Number of Circuits | : | 24 |
| Number of Spaces | : | 12 |
| Phase | : | 3 ph |
| Series | : | ES Series |
| Voltage Rating | : | 120/240 V |
| Wiring Configuration | : | 4-Wire |
