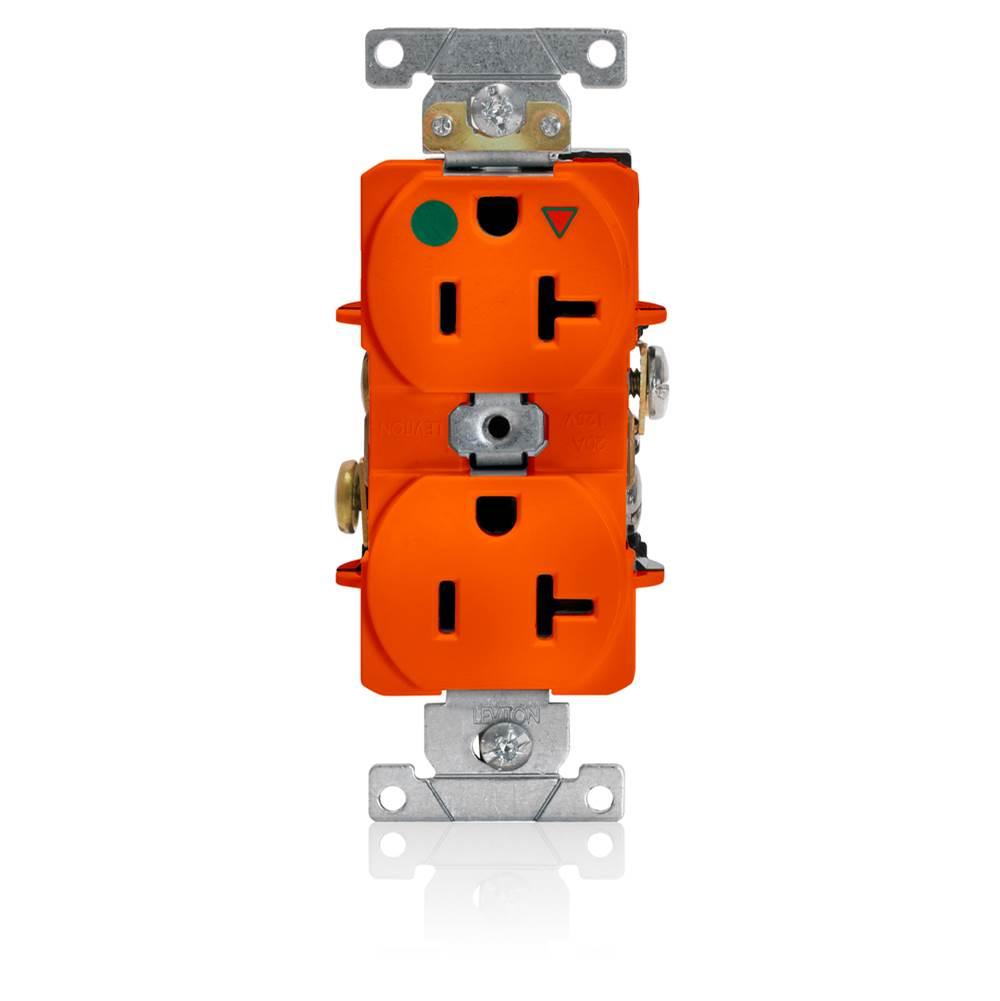

Leviton® Duplex Receptacle, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, Heavy-Duty, Hospital Grade, NEMA Rating: NEMA 5-20R, 3000 V Dielectric Strength, Self-Grounding Grounding, Back Wired, Side Wired Terminal, 14 to 10 AWG Conductor, Screw Mounting, PBT Housing, Phosphor Bronze Contact, Steel Strap, Orange, -40 to 60 deg C, 1.71 in Length, 1.11 in Width, 4.06 in Height, Additional Information: 14 to 18 in-lb Screw Terminal Torque
| Additional Information | : | 14 to 18 in-lb Screw Terminal Torque |
| Amperage Rating | : | 20 A |
| Color | : | Orange |
| Conductor Size | : | 14 to 10 AWG |
| Contact Material | : | Phosphor Bronze |
| Dielectric Strength | : | 3000 V |
| Grade | : | Heavy-Duty, Hospital |
| Grounding | : | Self-Grounding |
| HP Rating | : | 1 hp |
| Height | : | 4.06 in |
| Housing Material | : | PBT |
| Length | : | 1.71 in |
| Mounting Type | : | Screw |
| NEMA Rating | : | NEMA 5-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Strap Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Back Wired, Side Wired |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.11 in |
Instruction/Installation Manual
