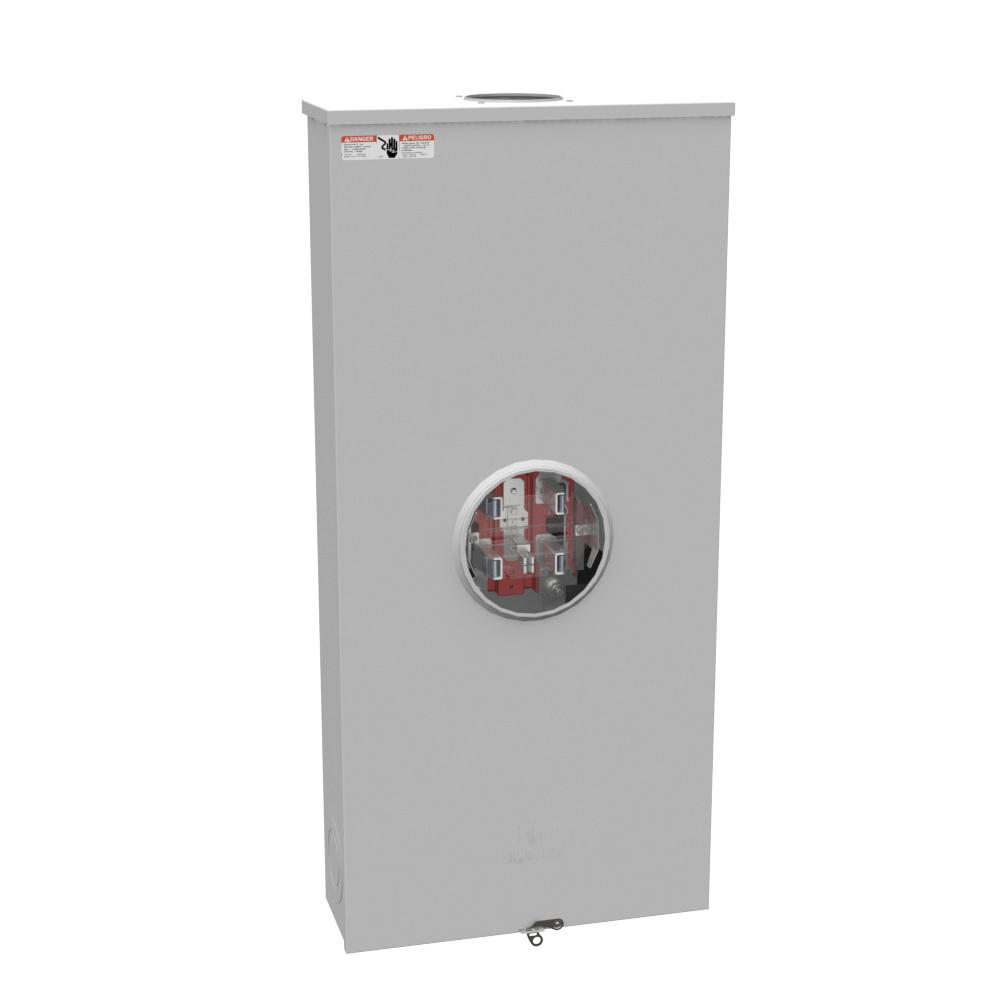

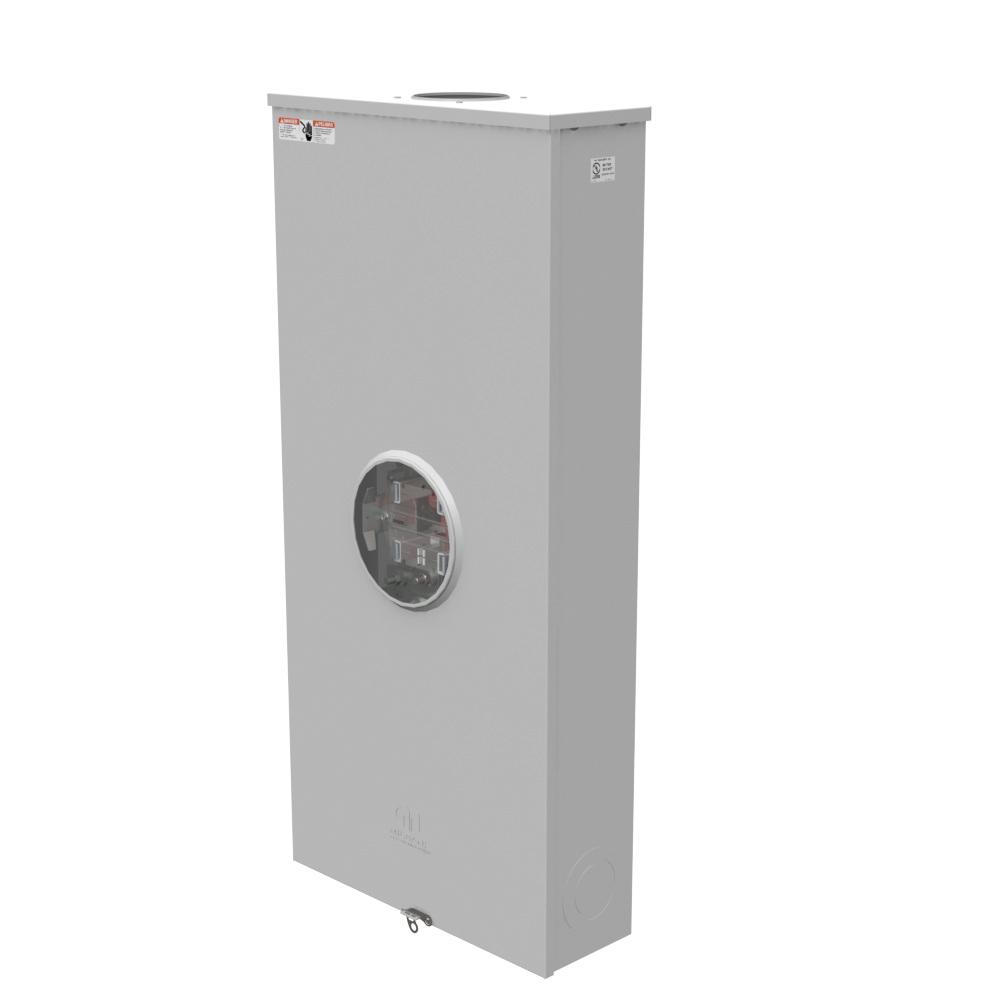

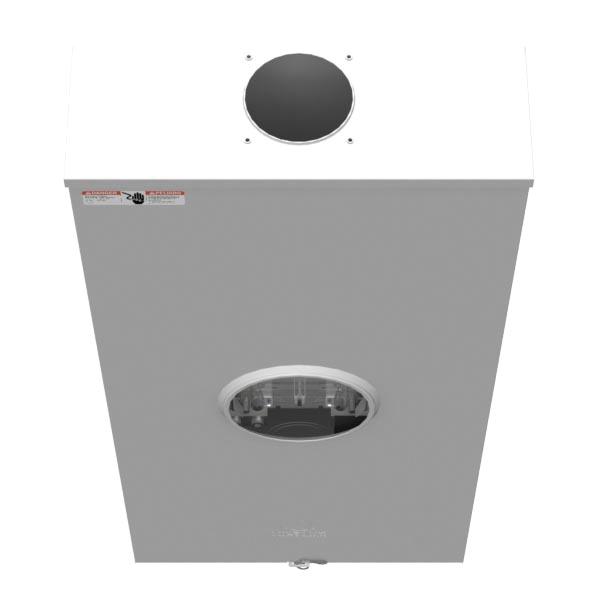

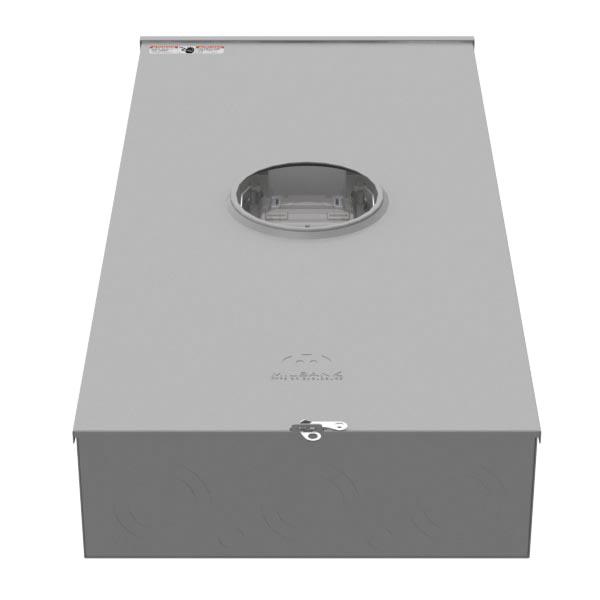

Milbank® Meter Socket, 320 A, 600 VAC, 60 Hz, Ringless Cover, 1 ph, Overhead, Underground Feed, 5 Jaws, Large Open, Single Mechanical Terminal, Glass Polyester Insulation, Steel, 4 AWG to 600 kcmil Line Side, 6 AWG to 350 kcmil Load Side Wire, Surface Mount, NEMA 3R, 6 in L x 17-3/4 in W x 38-3/8 in H, Powder-Coated, Additional Information: Lever Bypass
| Additional Information | : | Lever Bypass |
| Amperage Rating | : | 320 A |
| Cover Type | : | Ringless |
| Dimensions | : | 6 in L x 17-3/4 in W x 38-3/8 in H |
| Feed Type | : | Overhead, Underground |
| Finish | : | Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Hub Type | : | Large Open |
| Insulation Type | : | Glass Polyester |
| Material | : | Steel |
| Mounting Type | : | Surface |
| NEMA Rating | : | NEMA 3R |
| Number of Jaws | : | 5 |
| Phase | : | 1 ph |
| Terminal Type | : | Single Mechanical |
| Voltage Rating | : | 600 VAC |
| Wire Size | : | 4 AWG to 600 kcmil Line Side, 6 AWG to 350 kcmil Load Side |
