Residential-grade toggle switch is designed for faster installation with the combination of side wiring and push-in wiring. The steel mounting strap is made of galvanized steel sheet for corrosion resistance.

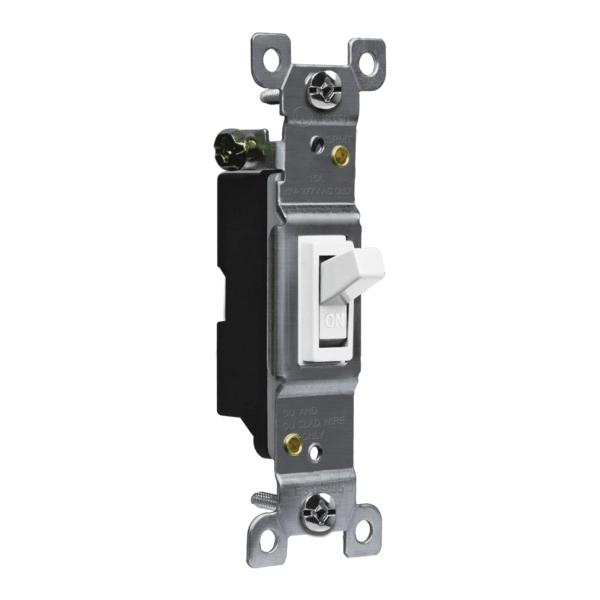

ENERLITES Toggle Switch, Model: 88115, 120/277 V, 15 A, 1 Pole, Screw Mount, Steel Body, Thermoplastic Actuator Material, 14 AWG Wire, White, Galvanized, 4.17 in Height, 1.31 in Width, 1-1/2 in D
| Actuator Material | : | Thermoplastic |
| Amperage Rating | : | 15 A |
| Body Material | : | Steel |
| Color | : | White |
| Depth | : | 1-1/2 in |
| Finish | : | Galvanized |
| Height | : | 4.17 in |
| Model | : | 88115 |
| Mounting Type | : | Screw |
| Number of Poles | : | 1 |
| Voltage Rating | : | 120/277 V |
| Width | : | 1.31 in |
| Wire Size | : | 14 AWG |
- Impact-resistant thermoplastic material
- Push-in terminals accept #14 solid wire only, side wired also
- Easy access green hex head ground screw
- Steel mounting strap, made of galvanized steel sheet
- Removable yoke tabs
Specification Sheet
