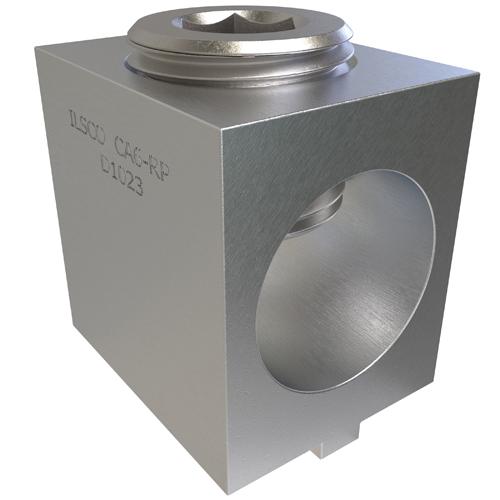

ILSCO® Mechanical Lug, 35 kV, 6 AWG to 250 kcmil Conductor, Stranded Conductor, 1 Mounting Holes, 1 Conductors, 1 Pole, 1/4-20 Stud, Aluminum, Tin-Plated, Silver, 75 deg C, 1 in Length, 0.812 in Width, 1.062 in Height
| Color | : | Silver |
| Conductor Size | : | 6 AWG to 250 kcmil |
| Conductor Type | : | Stranded |
| Finish | : | Tin-Plated |
| Height | : | 1.062 in |
| Length | : | 1 in |
| Material | : | Aluminum |
| Number of Conductors | : | 1 |
| Number of Mounting Holes | : | 1 |
| Number of Poles | : | 1 |
| Stud Size | : | 1/4-20 |
| Temperature Rating | : | 75 deg C |
| Voltage Rating | : | 35 kV |
| Width | : | 0.812 in |
Line Drawing
