BrassCraft® OR17X C1 70486
  1. pin-int

BrassCraft® OR17X C1 70486

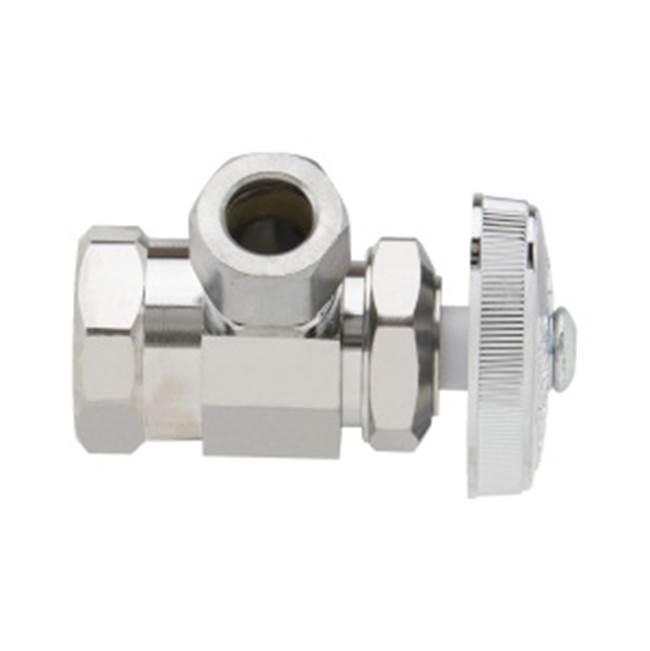

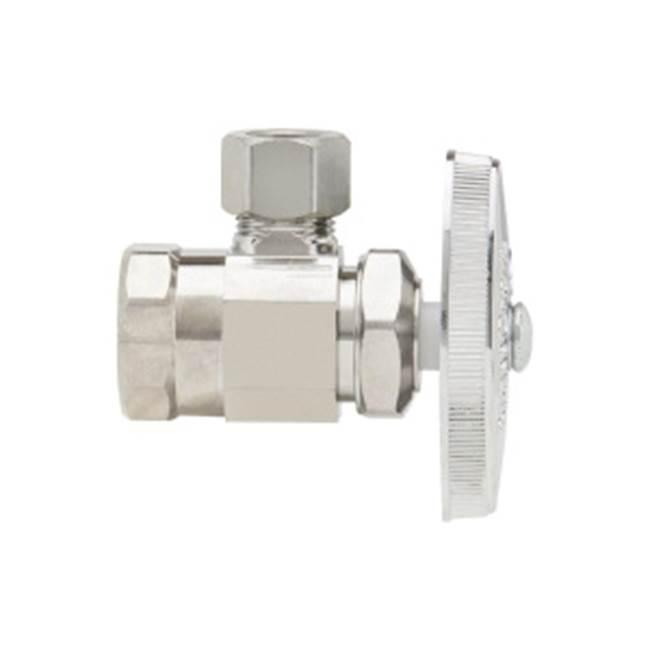

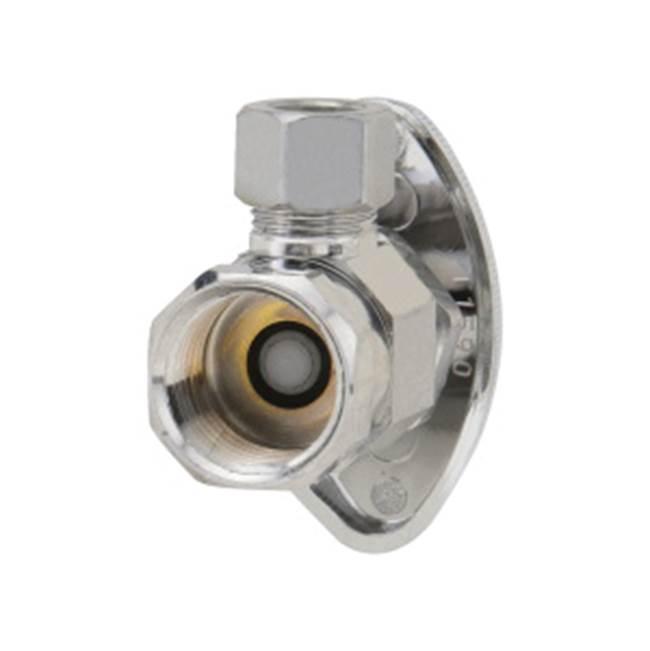

BrassCraft® OR17X C1 Angle Supply Stop, 1/2 x 3/8 in Nominal, FIP x Compression, 125 psi, Brass Body, Chrome

  • Manufacturer: BrassCraft Manufacturing Company
  • Brand Name: BrassCraft®
  • Part#: 70486
  • MPN: OR17X C1
  • UPC: 026613135793
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

BrassCraft® 1/2 in FIP inlet x 3/8 in OD compression outlet multi-turn angle valve controls water flow to household plumbing fixtures faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.

BrassCraft® Angle Supply Stop, 1/2 x 3/8 in Nominal, FIP x Compression Connection, 125 psi, Brass Body, Finish: Chrome, 40 to 160 deg F, Domestic/Import: Domestic, For Use With: Iron Piping

Body Material      :      Brass
Connection Type      :      FIP x Compression
Domestic/Import      :      Domestic
Finish      :      Chrome
Nominal Size      :      1/2 x 3/8 in
Pressure Rating      :      125 psi
Suitable For Use With      :      Iron Piping
Temperature Rating      :      40 to 160 deg F
  • Machined one-piece body construction for strength, durability and long-lasting performance
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Easy to remove handle protects against accidental operation during rough ins
  • One-piece shutoff mechanism provides smooth on-off operation
  • Designed, machined and assembled in the USA
  • Not intended for recirculating water systems that produce continuous use temperatures above 115 deg F
  • For those applications, use our KT™ Series ball stops
  • For use in potable water distribution systems
