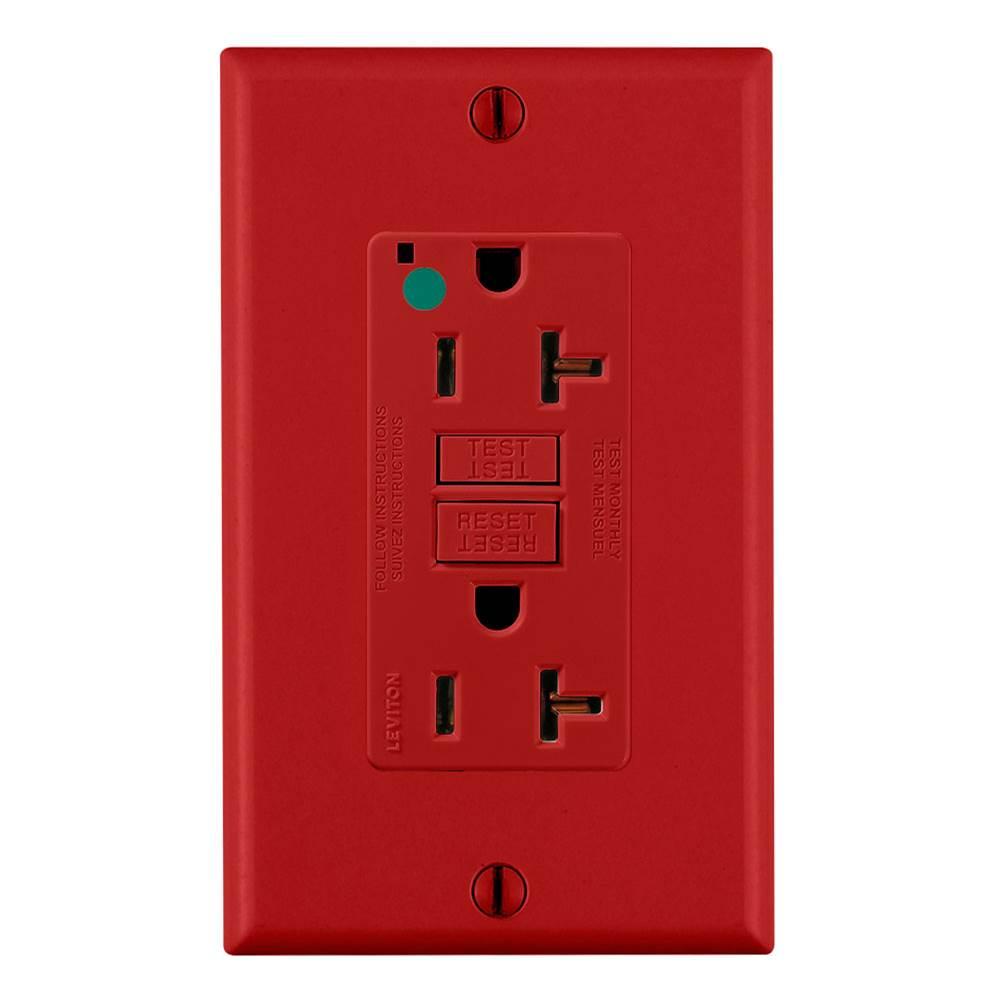

SmartlockPro® Duplex GFCI Receptacle, 125 VAC, 20 A, 1 hp, 10 kA Short Circuit, 2 Poles, 3 Wires, 14 to 10 AWG Wire, Self-Grounding Grounding, NEMA Rating: NEMA 5-20R, LED Indicator, Clamp, Screw Terminal, Polycarbonate Body, Brass Contact, Red, -35 to 66 deg C, 1.36 in Length, 1.74 in Width, 4.05 in Height
| Amperage Rating | : | 20 A |
| Body Material | : | Polycarbonate |
| Color | : | Red |
| Contact Material | : | Brass |
| Grounding | : | Self-Grounding |
| Height | : | 4.05 in |
| Indicator Type | : | LED |
| Length | : | 1.36 in |
| NEMA Rating | : | NEMA 5-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Power Rating | : | 1 hp |
| Short Circuit Rating | : | 10 kA |
| Temperature Rating | : | -35 to 66 deg C |
| Terminal Type | : | Clamp, Screw |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.74 in |
| Wire Size | : | 14 to 10 AWG |
- Self-test SmartlockPro GFCI duplex receptacle outlet
- Extra heavy-duty hospital-grade
Instruction/Installation Manual
