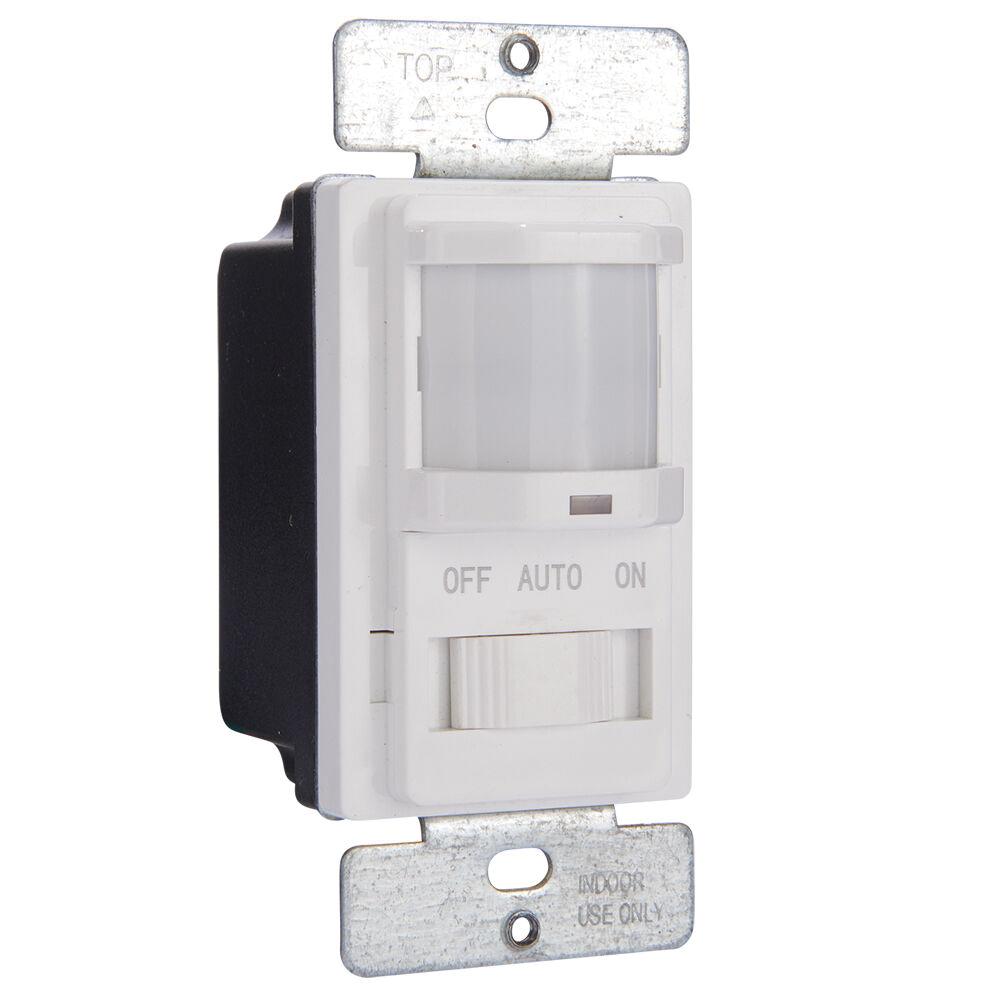

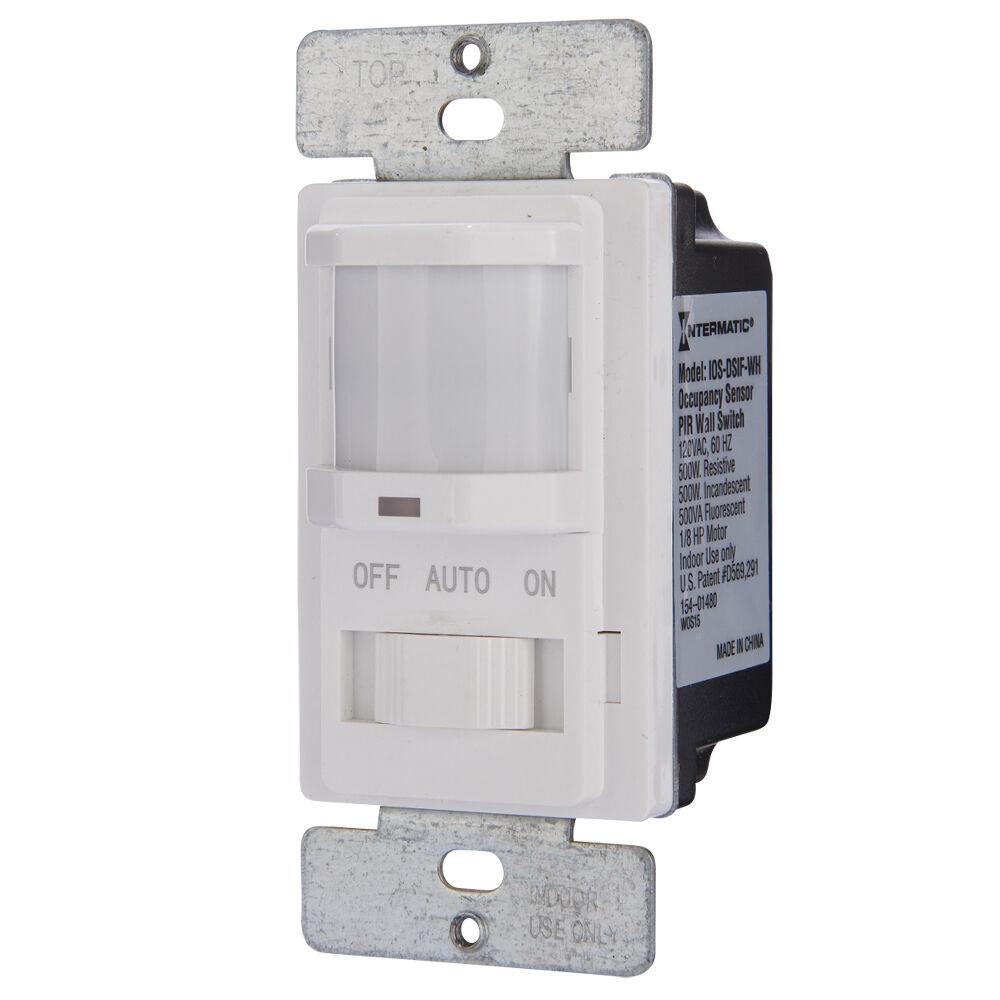

Intermatic® IOS-DSIF-WH 163260
Intermatic® IOS-DSIF Series IOS-DSIF-WH Occupancy Sensor, 120 VAC, 1 -Pole, Passive Infrared Sensor, 980 sq-ft Sensing
- Manufacturer: Intermatic
- Brand Name: Intermatic®
- Part#: 163260
- MPN: IOS-DSIF-WH
- UPC: 078275125230
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load on and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns off automatically. The sensor switch has one relay, it also includes ambient light level sensor.
Intermatic® Occupancy Sensor, Series: IOS-DSIF Series, 120 VAC, 60 Hz, 800 W, 1 Pole, Passive Infrared Sensor, 980 sq-ft Sensing Range, 150 deg Sensing, 15 s to 30 min Timer, 32 to 131 deg F, Wall Mount, White, 2-3/4 in H x 1-7/16 in W x 1-5/8 in D
| Color | : | White |
| Dimensions | : | 2-3/4 in H x 1-7/16 in W x 1-5/8 in D |
| Frequency Rating | : | 60 Hz |
| Mounting Type | : | Wall |
| Number of Poles | : | 1 |
| Sensing Angle | : | 150 deg |
| Sensing Range | : | 980 sq-ft |
| Sensor Type | : | Passive Infrared |
| Series | : | IOS-DSIF Series |
| Temperature Rating | : | 32 to 131 deg F |
| Timer Range | : | 15 s to 30 min |
| Voltage Rating | : | 120 VAC |
| Wattage | : | 800 W |
- Passive infrared sensing for presence detection
- Adjustable PIR sensitivity
- Adjustable time delay 15 s to 30 min
- Adjustable ambient light sensor override
- Coverage 150 deg, 980 sq-ft with non-obstructed views
- IOS-DSIF models are incandescent/fluorescent/CFL/LED compatible and require a neutral connection
- No neutral models offered for retrofit applications
- Fits standard decorator wallplate
