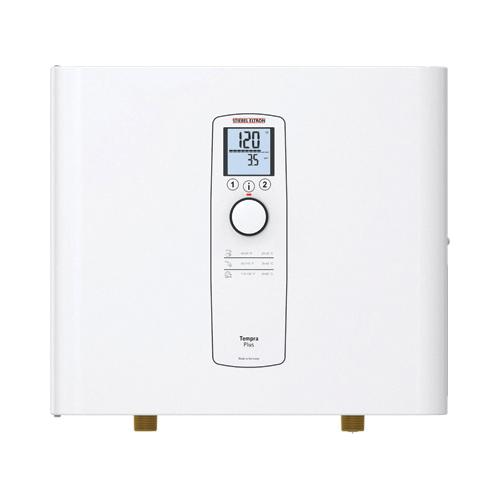

While every Stiebel Eltron model delivers superior performance, the Tempra® Plus Series represents the industry's high point of tankless water heater innovation. Manufactured by Stiebel Eltron, a pioneer and leader in tankless water heating technology for over 90 years, the Tempra® Plus line features our unique advanced flow control function, which ensures that you'll never be surprised by a cold shower. It also features two different temperature memory presets, making it easy to adjust for personalized needs. Thanks to these and other innovations, the Tempra® Plus ensures that you'll enjoy endless hot water along with unrivaled efficiency.
Stiebel Eltron Tankless Electric Water Heater, Tempra Series, Model: 36/36 Plus, 36 kW, 0.77 gpm Flow Rate, 9 Elements, 50 A, 208/240 V, 50/60 Hz, 1 ph Phase, NPT Connection, 3/4 in Connection, 30 to 150 psi, 6 AWG Wire, Steel, Gray, Lead-Free, 86 to 140 deg F, 14-1/2 in H x 16-5/8 in W x 4-5/8 in D, Copper Element
| Amperage Rating | : | 50 A |
| Color | : | Gray |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Dimensions | : | 14-1/2 in H x 16-5/8 in W x 4-5/8 in D |
| Element Material | : | Copper |
| Element Type | : | Copper Sheathed |
| Flow Rate | : | 0.77 gpm |
| Frequency Rating | : | 50/60 Hz |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Steel |
| Model | : | 36/36 Plus |
| Number of Elements | : | 9 |
| Phase | : | 1 ph |
| Power Rating | : | 36 kW |
| Pressure Rating | : | 30 to 150 psi |
| Series | : | Tempra Series |
| Temperature Rating | : | 86 to 140 deg F |
| Voltage Rating | : | 208/240 V |
| Wire Size | : | 6 AWG |
- Proven reliability from the world leader
- Unlimited supply of hot water
- Sleek design saves space
- No venting required
- Tempra® Plus features exclusive advanced flow control, invented by Stiebel Eltron and awarded German patent DE 3805441 C2 and other patents
- Easy to install
- Seismic-proof construction
- Maximum output temperature limit
- Advanced flow control
- Self-modulation energy technology
- Constant temperature output
- Easy to size for every home
Instruction/Installation Manual
Video Link
