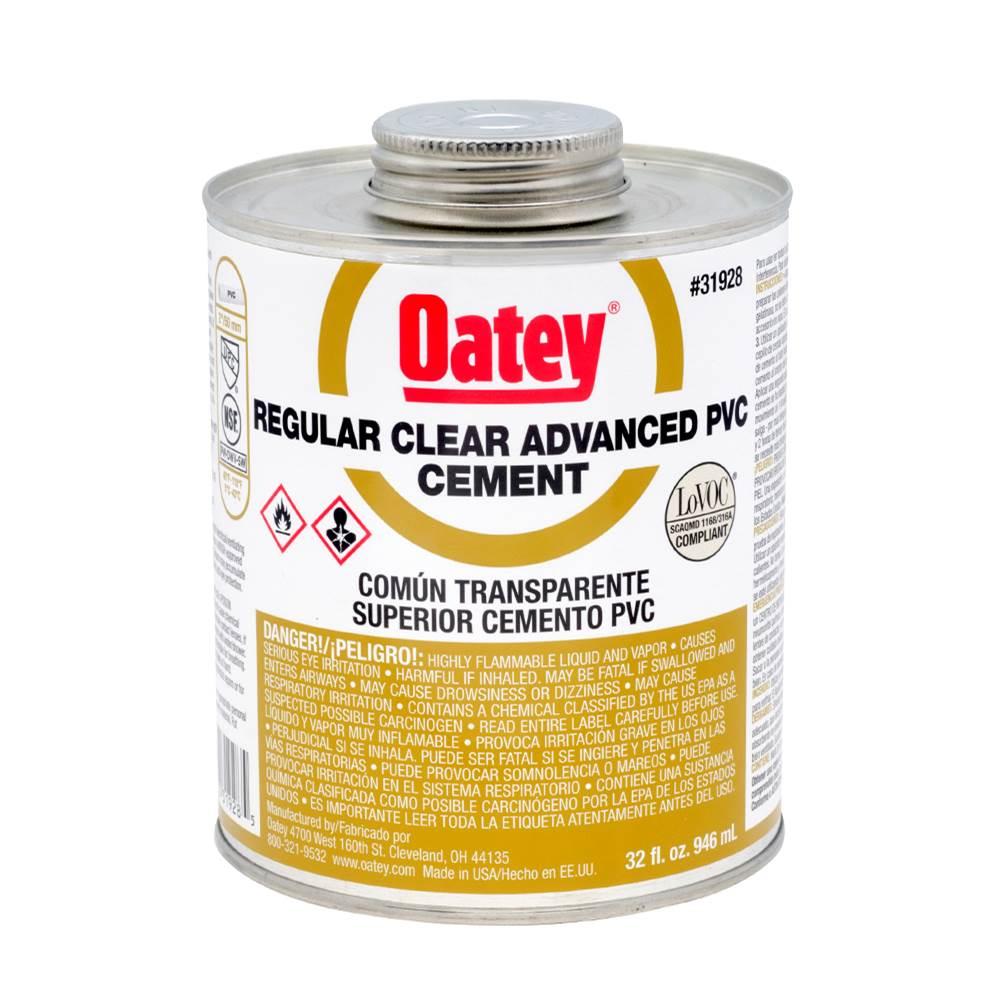

PVC SCH 40 is highly durable, with high tensile and impact strength. It is easy to install and has better sound deadening qualities than PVC SCH 40 DWV foam core. Installation requires the use of primer and solvent cement. For pressure applications, sharply angled pressure fittings must be used.

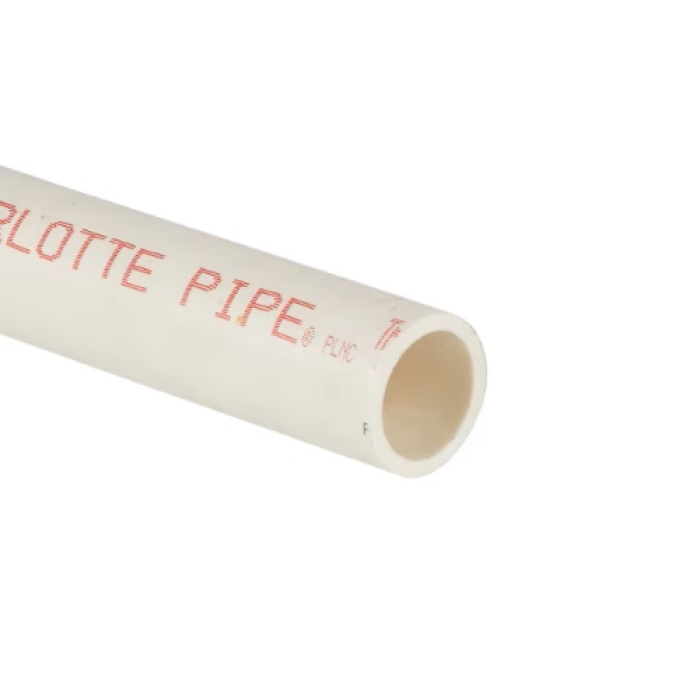

Charlotte Pipe Pipe, Nominal Pipe Size: 3/4 in, Bell End Connection, 1.05 in OD, 20 ft Length, 0.113 in Wall Thickness, 480 psi Pressure, SCH 40 Schedule, Material Standard: ASTM D1785, PVC, White, 73 deg F, Domestic/Import: Domestic
| Color | : | White |
| Connection Type | : | Bell End |
| Domestic/Import | : | Domestic |
| Length | : | 20 ft |
| Material Standard | : | ASTM D1785 |
| Material | : | PVC |
| Nominal Pipe Size | : | 3/4 in |
| Outside Diameter | : | 1.05 in |
| Pressure Rating | : | 480 psi |
| Schedule Rating | : | SCH 40 |
| Temperature Rating | : | 73 deg F |
| Wall Thickness | : | 0.113 in |
