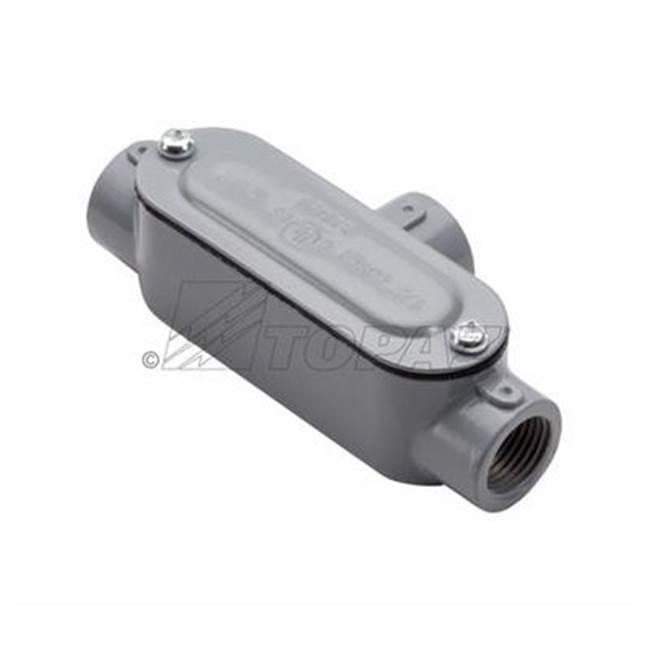

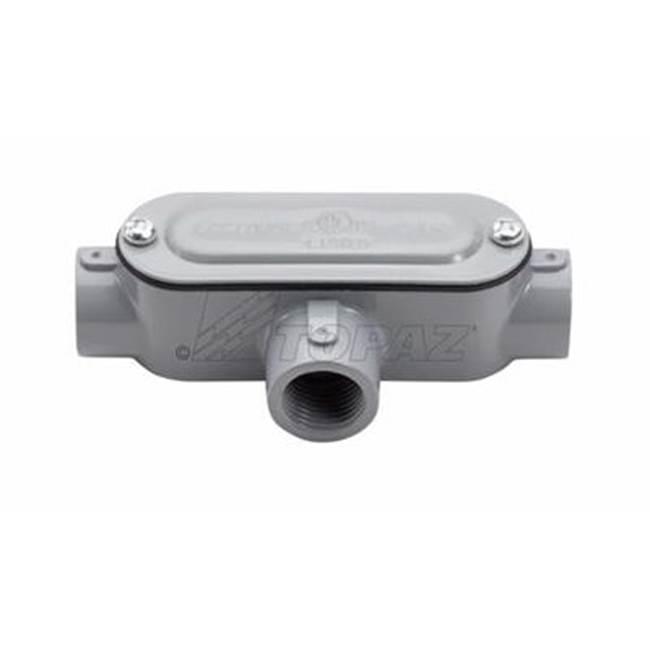

TOPAZ® rigid threaded T-type conduit body, with cover and gasket is manufactured from copper-free aluminum. T-type conduit bodies allow three-way inline access in conduit systems, provide easy access for splicing and pulling and can correct and change direction of conduit runs. Smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance, lightweight aluminum construction, cover and watertight gasket ensures weatherproof installations. UL listed.
TOPAZ® Rigid Conduit Body, 2 in Hub, 3 Hubs, NPT Connection Type, 2/0 AWG Wire, Aluminum Body, Steel Cover, Neoprene Gasket, Powder-Coated, 10.83 in Length, 3.1 in Width, 3.33 in Height
| Body Material | : | Aluminum |
| Connection Type | : | NPT |
| Cover Material | : | Steel |
| Finish | : | Powder-Coated |
| Gasket Material | : | Neoprene |
| Height | : | 3.33 in |
| Hub Size | : | 2 in |
| Length | : | 10.83 in |
| Number of Hubs | : | 3 |
| Width | : | 3.1 in |
| Wire Size | : | 2/0 AWG |
Specification Sheet
