Compression fittings are ideal for use in plumbing, instrumentation, hydraulic and pneumatic systems (gasoline, grease, oil, potable and non-potable water, vacuum and air lines). Can be used to install copper, aluminum or plastic tubing. Not recommended for use with steel tubing.

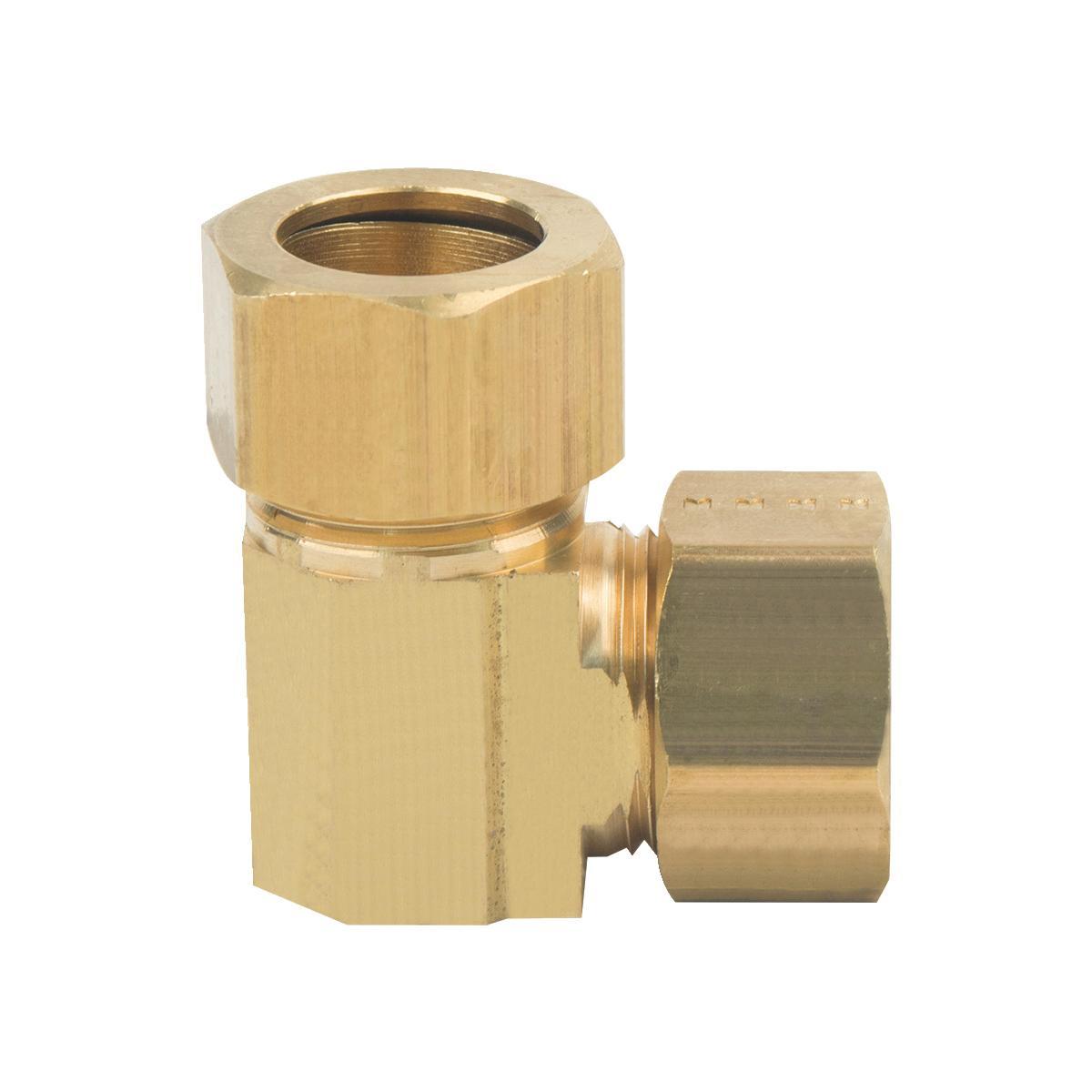

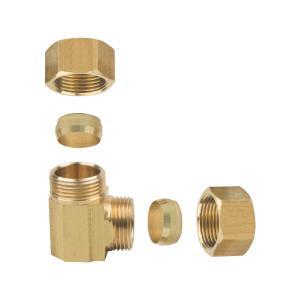

BrassCraft® Compression Union Elbow, 65 Series, Elbow Fitting, Connection Size 1: 5/8 in, Connection Type 1: OD Tube, Connection Size 2: 5/8 in, Connection Type 2: OD Tube, Tube|Tube Connection, Brass, Material Construction: Brass, Finish: Rough, 0.81 in Hex, For Use With: Aluminum, Copper and Plastic Tubes, 1.61 in H x 1.61 in W, 150 psi, -65 to 250 deg F, Additional Information: 0.035 in THK Tube Wall
| Additional Information | : | 0.035 in THK Tube Wall |
| Connection Size 1 | : | 5/8 in |
| Connection Size 2 | : | 5/8 in |
| Connection Type 1 | : | OD Tube |
| Connection Type 2 | : | OD Tube |
| Connection Type | : | Tube|Tube |
| Dimensions | : | 1.61 in H x 1.61 in W |
| Finish | : | Rough |
| Fitting Type | : | Elbow |
| For Use With | : | Aluminum, Copper and Plastic Tubes |
| Hex Size | : | 0.81 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 150 psi |
| Series | : | 65 Series |
| Temperature Rating | : | -65 to 250 deg F |
| Tube OD | : | 5/8 in |
- Machined from brass
- Not recommended for steel tubing
- Little to no tube preparation required
- Connection does not require flaring, soldering or other types of tube preparation
- Plastic and PEX tubing installations require sleeves and/or inserts
