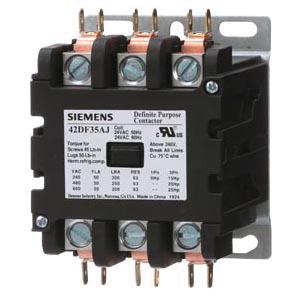

Siemens Definite Purpose Contactor, 600 VAC, 50 A, 25 hp, 60 Hz, 3 ph Phase, 120 VAC Coil, 3 Poles, Auxiliary Contact, 10 A Contact Rating, Screw Terminal, 2 AWG Wire, Open Enclosure, 250000 cycles Operating Cycles, 50 lbf-in Torque, Surface Mounting, 158 deg F, 4.04 in Height, 2.87 in Width, 3.11 in Depth
| Amperage Rating | : | 50 A |
| Coil Voltage | : | 120 VAC |
| Contact Rating | : | 10 A |
| Contact Type | : | Auxiliary |
| Depth | : | 3.11 in |
| Enclosure Type | : | Open |
| Frequency Rating | : | 60 Hz |
| Height | : | 4.04 in |
| Mounting Type | : | Surface |
| Number of Poles | : | 3 |
| Operating Cycles | : | 250000 cycles |
| Phase | : | 3 ph |
| Power Rating | : | 25 hp |
| Temperature Rating | : | 158 deg F |
| Terminal Type | : | Screw |
| Torque Rating | : | 50 lbf-in |
| Voltage Rating | : | 600 VAC |
| Width | : | 2.87 in |
| Wire Size | : | 2 AWG |
- Snap on auxiliary contacts, enclosed body design
Specification Sheet
