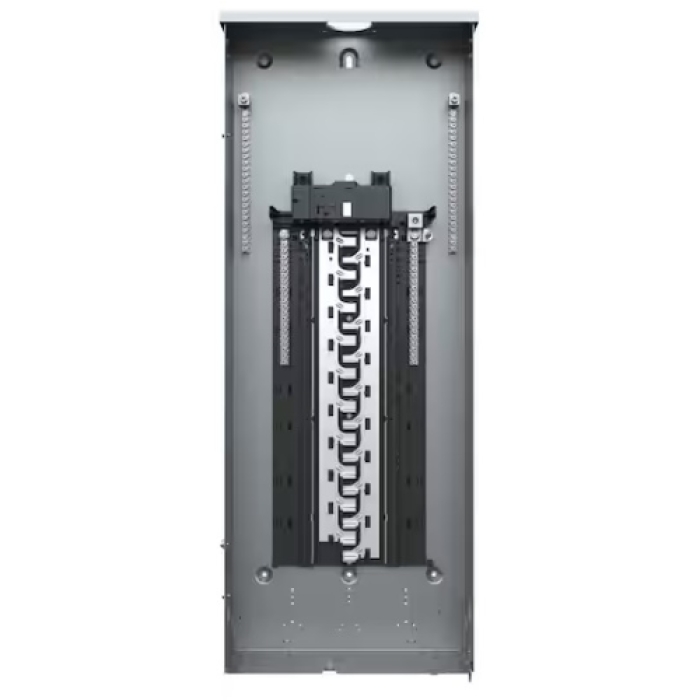

Siemens low voltage plug-on neutral ready Pro Series assembled load center. Main breaker with 40 1 in spaces allowing max 40 circuits. 1-phase 3-wire system rated 120/240 V (200 A) 22 kAIC. Special features - copper bus, gray trim NEMA Type 3R enclosure for outdoor use.
Siemens Main Breaker Load Center, Series: PN Series, 200 A, 120/240 V, 22 kAIC Interrupt, 3-Wire Wiring Configuration, 1 ph, 40 Spaces, 40 Circuits, Copper Bus, Plug-On Neutral Type, NEMA 1, 38 in L x 14-1/2 in W x 4-1/4 in D Enclosure Box, Gray
| Amperage Rating | : | 200 A |
| Bus Material | : | Copper |
| Color | : | Gray |
| Enclosure Box Size | : | 38 in L x 14-1/2 in W x 4-1/4 in D |
| Enclosure Type | : | NEMA 1 |
| Interrupt Rating | : | 22 kAIC |
| Neutral Type | : | Plug-On |
| Number of Circuits | : | 40 |
| Number of Spaces | : | 40 |
| Phase | : | 1 ph |
| Series | : | PN Series |
| Voltage Rating | : | 120/240 V |
| Wiring Configuration | : | 3-Wire |
- Invertible for bottom feed application
- All devices convertible from main lug to main breaker and vice versa
- All devices are provided with 2 factory installed ground bars
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
- The pre-positioned bond screw eliminates bond strap/screw assemblies and reduces the risk of losing components in the field
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- The patented INSTA-WIRE™ neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- The outdoor enclosure has a slide hinge door for the easiest installation and can be removed by backing out only one screw
- All devices come with an integrated neutral bus
