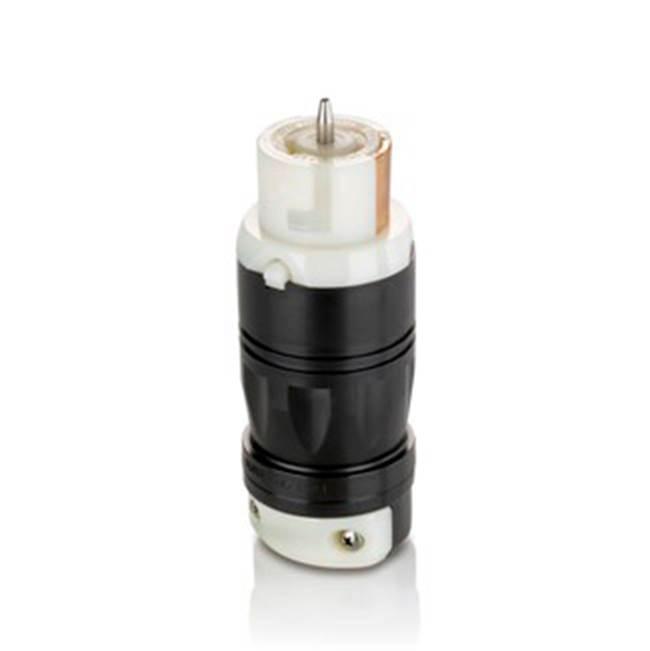

Leviton® Locking Connector, 125/250 VAC, 50 A, 3 Poles, 4 Wires, 0.68 to 1-1/8 in Cord Diameter, 10 to 4 AWG Wire, Screw Terminal, 2000 V Dielectric Strength, -40 to 75 deg C, Nylon Housing, Brass Contact, Black/White, 2.59 in Diameter, 7.1 in Height
| Amperage Rating | : | 50 A |
| Color | : | Black/White |
| Contact Material | : | Brass |
| Cord Diameter | : | 0.68 to 1-1/8 in |
| Diameter | : | 2.59 in |
| Dielectric Strength | : | 2000 V |
| Height | : | 7.1 in |
| Housing Material | : | Nylon |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 125/250 VAC |
| Wire Size | : | 10 to 4 AWG |
- One-piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
- Ratings and NEMA I.D. permanently marked on device
