TOPAZ® RDL/4GIM/9/5CTS-46 197835

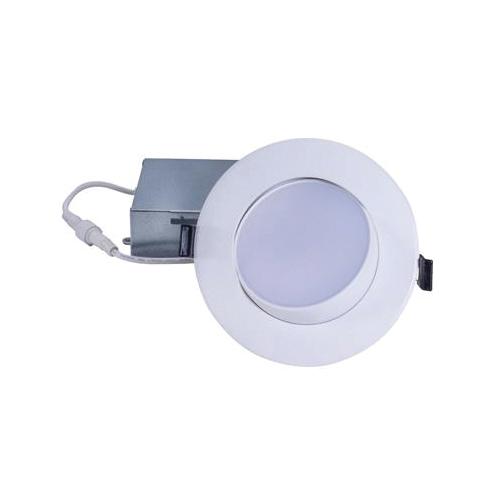

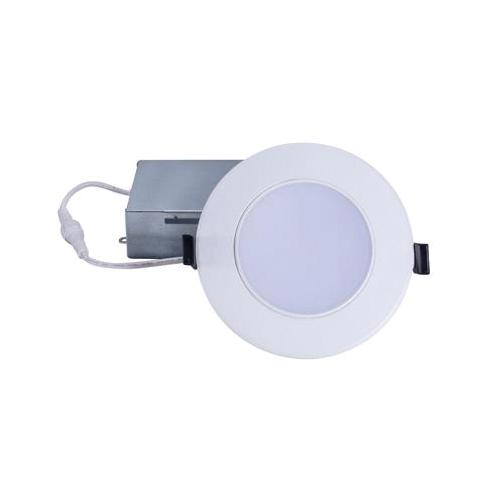

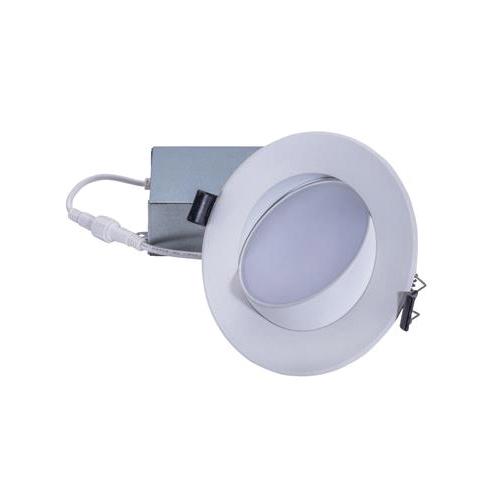

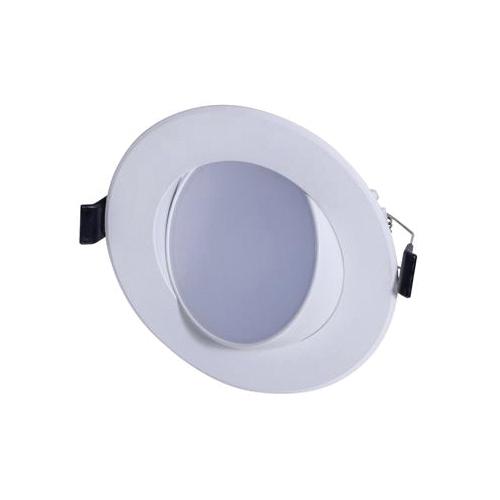

TOPAZ® RDL/4GIM/9/5CTS-46 Recessed Downlight, 9 W Fixture, 120 VAC, LED Bulb, 580 Lumens

  • Manufacturer: Southwire Company, LLC
  • Brand Name: TOPAZ®
  • Part#: 197835
  • MPN: RDL/4GIM/9/5CTS-46
  • UPC: 751338038622
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

TOPAZ® 9 W Gimbal, slim fit recessed downlight is 5 CCT selectable. With an ultra low profile of less than 2 in, this downlight has an impressive 360 deg rotation and 30 deg tilt to focus the light where you need it most. Easily installs with spring clips quick connects, to enhance kitchens, living areas, basements and hallways in both new construction and retrofit applications.

TOPAZ® Recessed Downlight, 9 W Fixture Wattage, 120 VAC, 0.09 A, 60 Hz, LED Bulb, 580 Lumens, 2700K, 3000K, 4000K, 5000K, 90 CRI, Dimmable, 4 in Dia, Additional Information: 50000 hr Runtime

Additional Information      :      50000 hr Runtime
Amperage Rating      :      0.09 A
Bulb Type      :      LED
Color Rendering Index (CRI)      :      90
Color Temperature      :      2700K, 3000K, 4000K, 5000K
Dimensions      :      4 in Dia
Dimmable/Non-Dimmable      :      Dimmable
Fixture Wattage      :      9 W
Frequency Rating      :      60 Hz
Lumens      :      580 Lumens
Voltage Rating      :      120 VAC
  • pdfCompatibility Chart https://assets.unilogcorp.com/267/ITEM/DOC/TOPAZ_RDL_3RND_8_5CTS_Compatibility_Chart.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/TOPAZ_RDL_4GIM_9_5CTS_46_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/TOPAZ_RDL_4GIM_9_5CTS_46_Specification_Sheet.pdf
  • pdfWarranty Information https://assets.unilogcorp.com/267/ITEM/DOC/TOPAZ_RTL_603WH_9W_CTS_46_Warranty.pdf
