Leviton®'s industrial-grade AC toggle switches for extra heavy-duty applications represent top of the line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

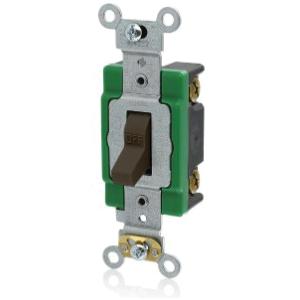

Leviton® Toggle Switch, 120/277 V, 30 A, 2 hp, 1 Pole, Screw Mount, 50000 cycles Operating Cycles, Thermoplastic Body, Polycarbonate Toggle Material, Silver Alloy Contact, 1500 V Dielectric, 14 to 12 AWG Wire, Brown, Galvanized, -40 to 65 deg C, 4.06 in Height, 1.31 in Width
| Amperage Rating | : | 30 A |
| Body Material | : | Thermoplastic |
| Color | : | Brown |
| Contact Material | : | Silver Alloy |
| Dielectric Strength | : | 1500 V |
| Finish | : | Galvanized |
| Height | : | 4.06 in |
| Mounting Type | : | Screw |
| Number of Poles | : | 1 |
| Operating Cycles | : | 50000 cycles |
| Power Rating | : | 2 hp |
| Temperature Rating | : | -40 to 65 deg C |
| Toggle Material | : | Polycarbonate |
| Voltage Rating | : | 120/277 V |
| Width | : | 1.31 in |
| Wire Size | : | 14 to 12 AWG |
