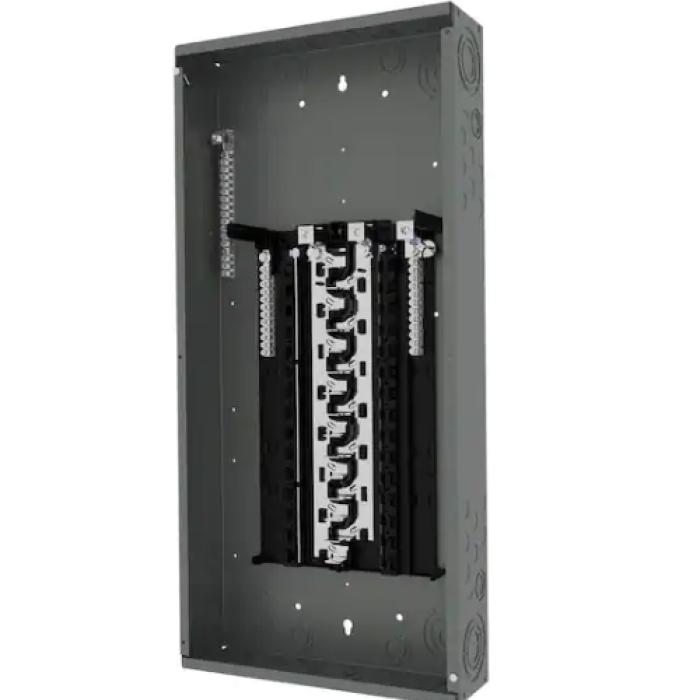

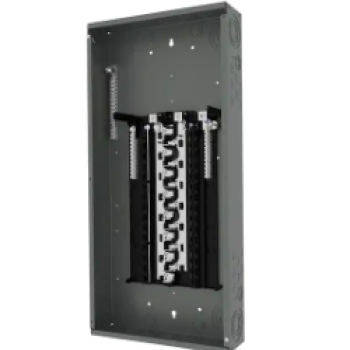

Siemens low voltage plug-on neutral ready Standard Series assembled load center. Main lug with 30 1 in spaces allowing max 30 circuits. 1-phase 3-wire system rated 120/240 V (200 A) 100 kAIC. Special features - aluminum bus, gray trim NEMA Type 1 enclosure for indoor use.
Siemens Main Lug Load Center, Series: SN Series, 200 A, 120/240 V, 100 kAIC Interrupt, 3-Wire Wiring Configuration, 1 ph, 30 Spaces, 30 Circuits, Aluminum Bus, Plug-On Neutral Type, NEMA 1, 30 in L x 14.25 in W x 3.88 in D Enclosure Type Box Size, Powder-Coated, Gray, 31.13 in L x 15.5 in W x 3.88 in D
| Amperage Rating | : | 200 A |
| Bus Material | : | Aluminum |
| Color | : | Gray |
| Dimensions | : | 31.13 in L x 15.5 in W x 3.88 in D |
| Enclosure Type Box Size | : | 30 in L x 14.25 in W x 3.88 in D |
| Enclosure Type | : | NEMA 1 |
| Finish | : | Powder-Coated |
| Interrupt Rating | : | 100 kAIC |
| Neutral Type | : | Plug-On |
| Number of Circuits | : | 30 |
| Number of Spaces | : | 30 |
| Phase | : | 1 ph |
| Series | : | SN Series |
| Voltage Rating | : | 120/240 V |
| Wiring Configuration | : | 3-Wire |
