The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load on and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns off automatically. The sensor switch has one relay, it also includes ambient light level sensor.

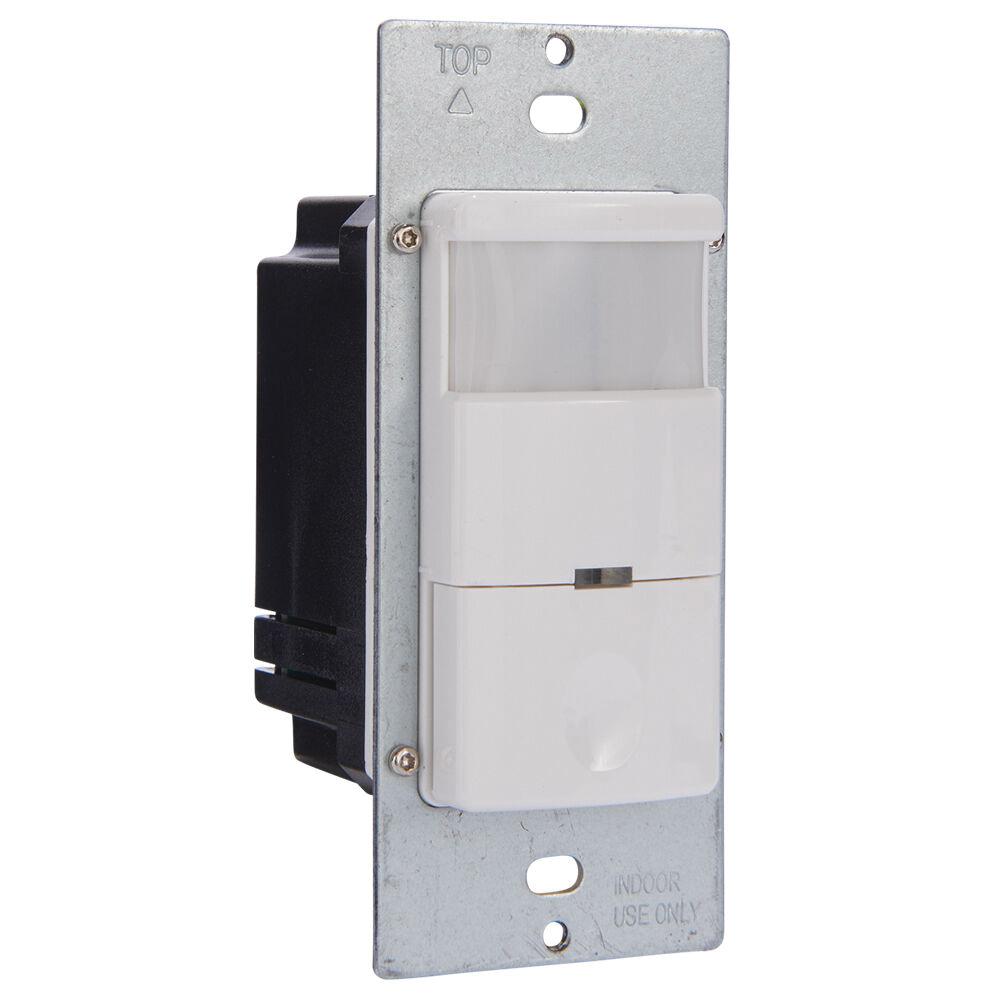

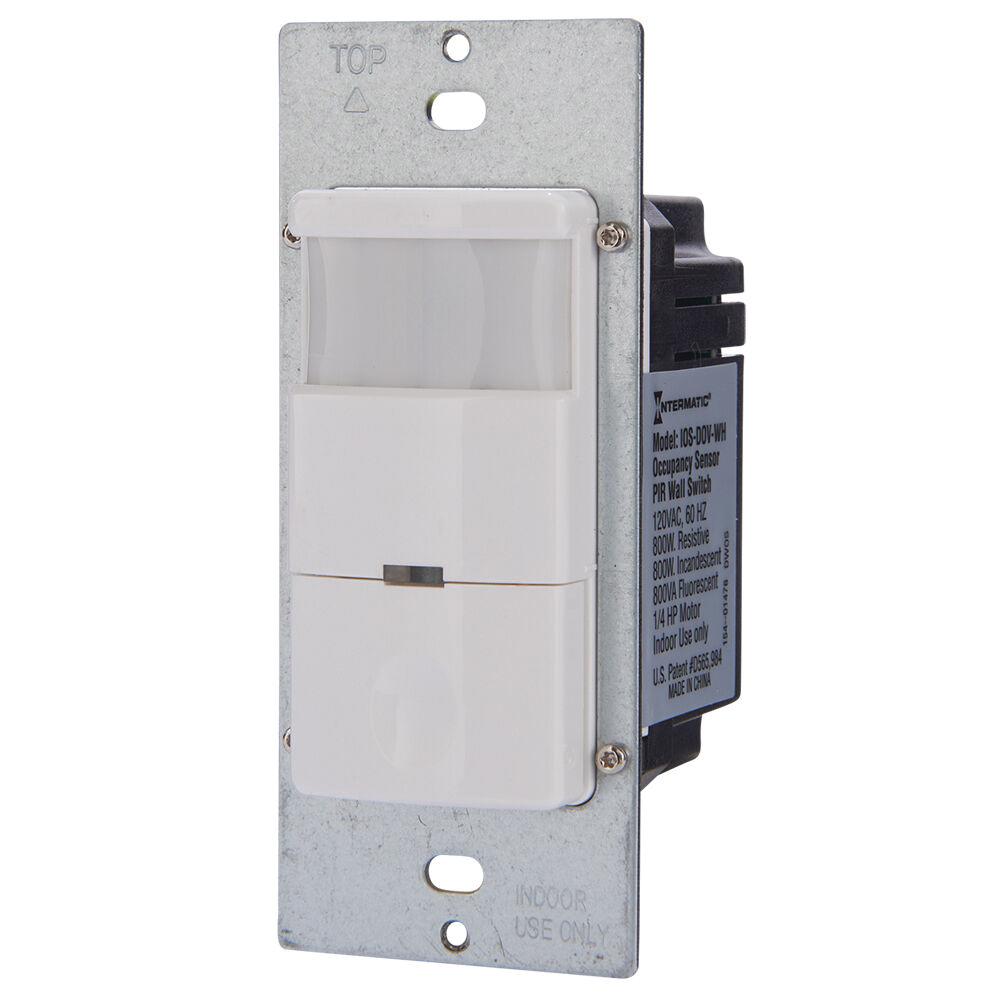

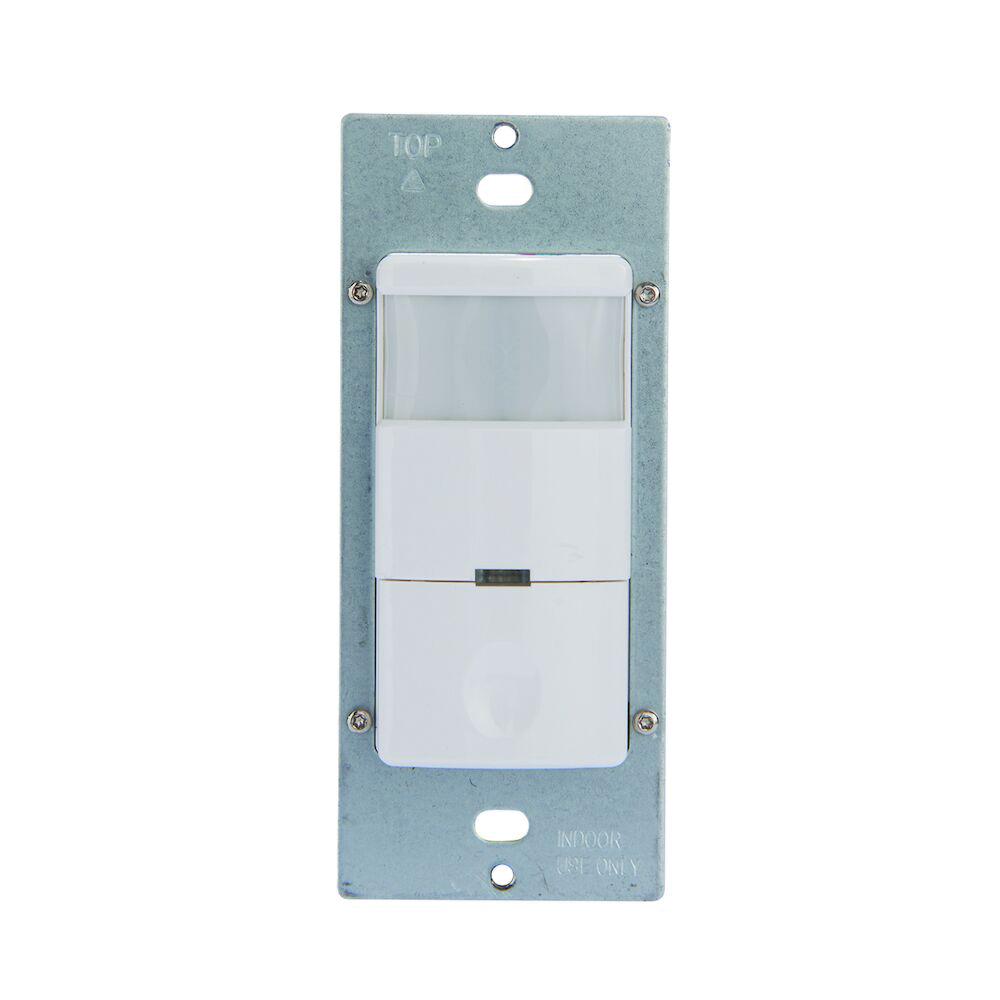

Intermatic® Occupancy/Vacancy Sensor, Series: IOS-DOV Series, 120 VAC, 60 Hz, 800 W, 1 Pole, Passive Infrared Sensor, 1200 sq-ft Sensing Range, 180 deg Sensing, 15 s to 30 min Timer, 32 to 131 deg F, Wall Mount, White, 2-5/8 in H x 1-5/16 in W x 1-3/4 in D
| Color | : | White |
| Dimensions | : | 2-5/8 in H x 1-5/16 in W x 1-3/4 in D |
| Frequency Rating | : | 60 Hz |
| Mounting Type | : | Wall |
| Number of Poles | : | 1 |
| Sensing Angle | : | 180 deg |
| Sensing Range | : | 1200 sq-ft |
| Sensor Type | : | Passive Infrared |
| Series | : | IOS-DOV Series |
| Temperature Rating | : | 32 to 131 deg F |
| Timer Range | : | 15 s to 30 min |
| Voltage Rating | : | 120 VAC |
| Wattage | : | 800 W |
- Passive infrared sensing for presence detection
- Coverage 180 deg, 1200 sq-ft with non-obstructed views
- User selectable vacancy or occupancy switch mode
- Zero crossing technology for long life and performance
- Adjustable ambient light sensor override
- Incandescent/fluorescent/CFL compatible
- IOS-DOV models require a neutral connection
- Fits standard decorator wallplate
- Adjustable sensitivity settings
- Automatic on/off control
