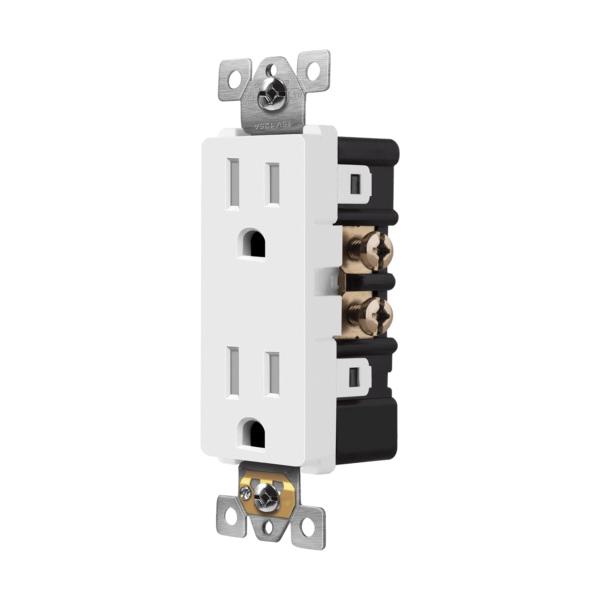

Self-grounding tamper-resistant receptacles are made of high impact-resistant polycarbonate thermoplastic for long service life. The shallow body design is for maximum wiring, with backstab or side options. These residential-grade receptacles are suitable for use in homes, apartments and condominiums. They are also applicable for commercial use in corporate buildings, hotels, restaurants and locations that only require a 15 A outlet.
ENERLITES Duplex Receptacle, Elite Series, 125 VAC, 15 A, 2 Poles, 3 Wires, Residential Grade, NEMA Rating: NEMA 5-15R, Shallow Construction, Self-Grounding Grounding, Push-In, Side Wired Terminal, 14 AWG Conductor, Screw Mounting, Thermoplastic Housing, Thermoplastic Cover, White, -104 to 160 deg F
| Amperage Rating | : | 15 A |
| Color | : | White |
| Conductor Size | : | 14 AWG |
| Construction | : | Shallow |
| Cover Material | : | Thermoplastic |
| Grade | : | Residential |
| Grounding | : | Self-Grounding |
| Housing Material | : | Thermoplastic |
| Mounting Type | : | Screw |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Series | : | Elite Series |
| Temperature Rating | : | -104 to 160 deg F |
| Terminal Type | : | Push-In, Side Wired |
| Voltage Rating | : | 125 VAC |
- Impact-resistant thermoplastic material
- Removable yoke tabs
- Slotted and Phillips® screw heads
Owners/User Manual
