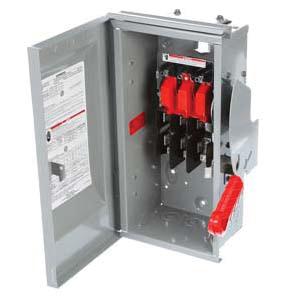

Siemens VBII Circuit Protection Safety Switch, Duty Rating: Heavy, 240 VAC, 30 A, 60 Hz, 1 ph, 3 Pole, 3 hp HP Rating, Disconnect Type: Fusible, With Neutral With Neutral/Without Neutral, 4 Wires, 14 to 6 AWG Wire, Mechanical Lug Electrical Connection Type, NEMA 3R, -29 to 85 deg C, Surface Mount, Steel, 14.34 in L x 7.02 in W x 5.25 in D, 3 Number of Fuses
| Amperage Rating | : | 30 A |
| Dimensions | : | 14.34 in L x 7.02 in W x 5.25 in D |
| Disconnect Type | : | Fusible |
| Duty Rating | : | Heavy |
| Electrical Connection Type | : | Mechanical Lug |
| Enclosure Type | : | NEMA 3R |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3 hp |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Number of Fuses | : | 3 |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Phase | : | 1 ph |
| Temperature Rating | : | -29 to 85 deg C |
| Voltage Rating | : | 240 VAC |
| Wire Size | : | 14 to 6 AWG |
| With Neutral/Without Neutral | : | With Neutral |
- Quick make and break switching action
- Double break visible blade design
- Highly visible on/off indication
- Rugged installer friendly enclosure design
- Modular design allows quick and easy replacement of parts
- Front removable lugs which can easily be converted to copper body or compression type lugs
- Defeatable dual cover interlock
