Klein Tools® CL220 59878
  1. pin-int

Klein Tools® CL220 59878

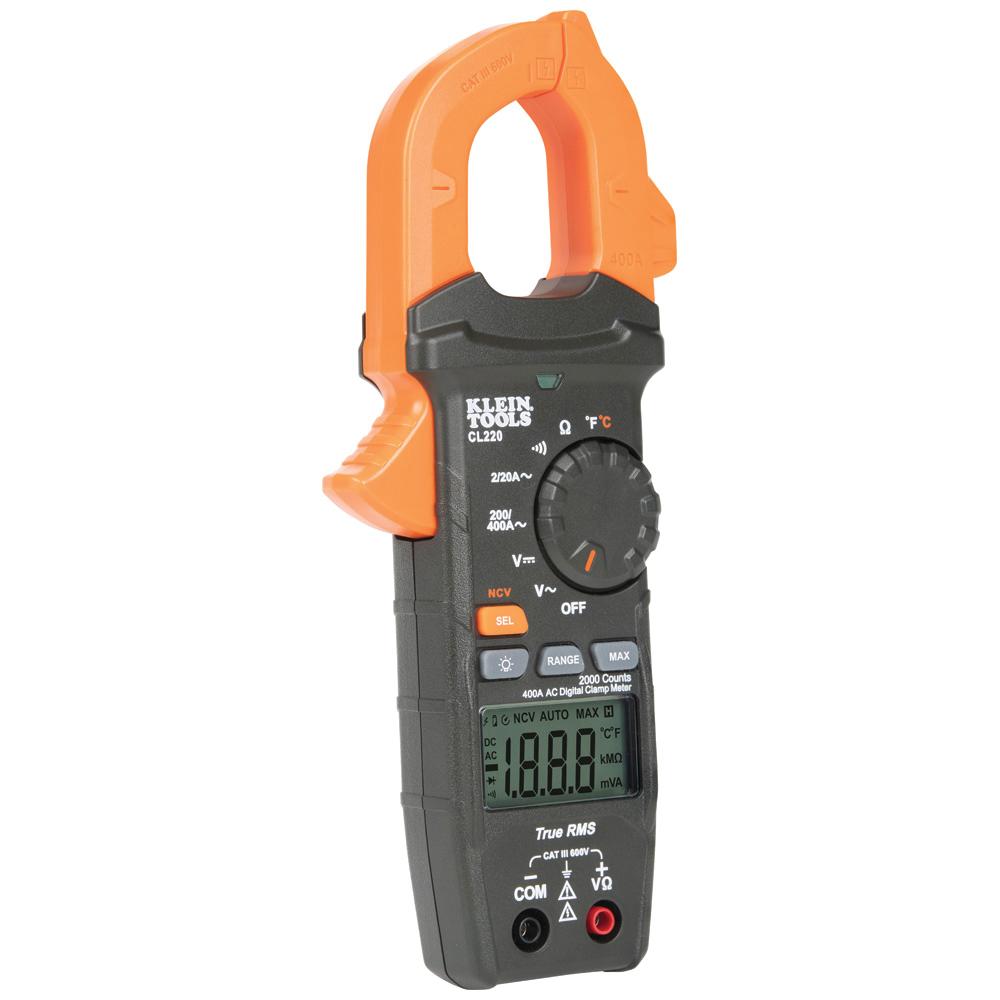

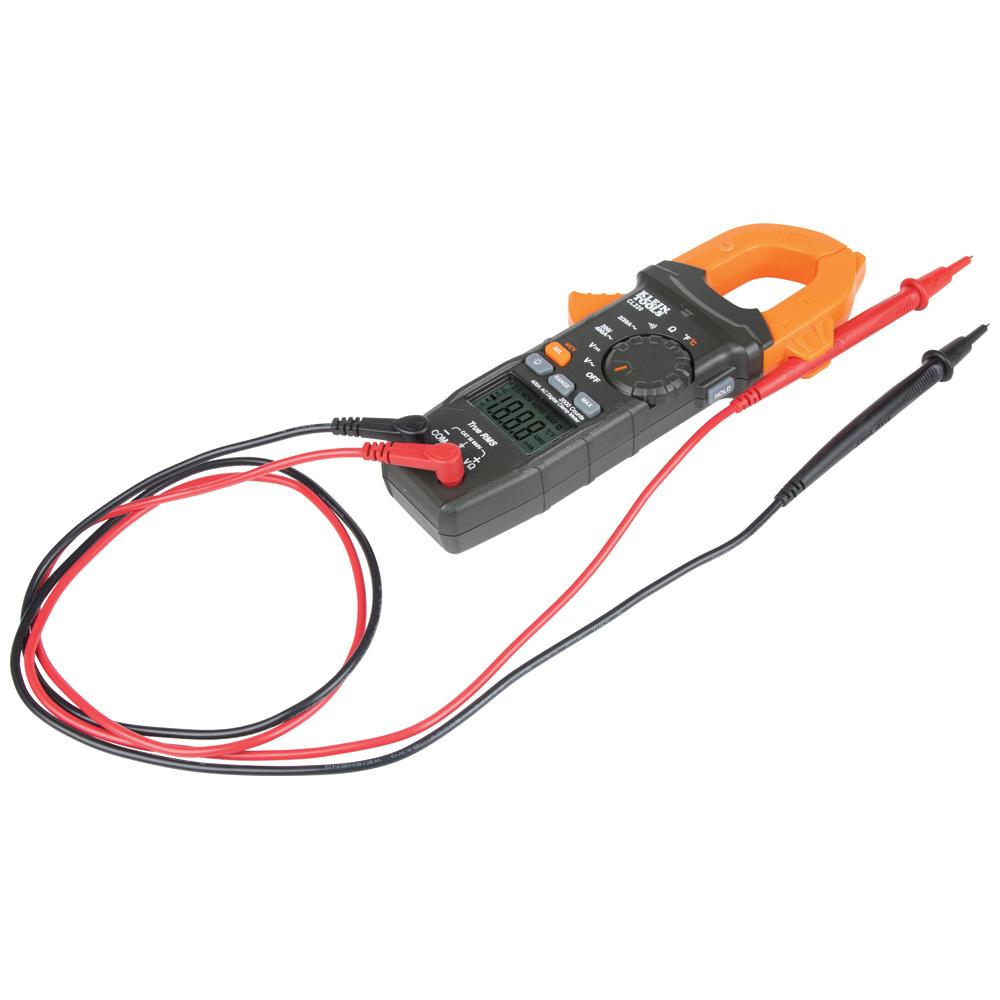

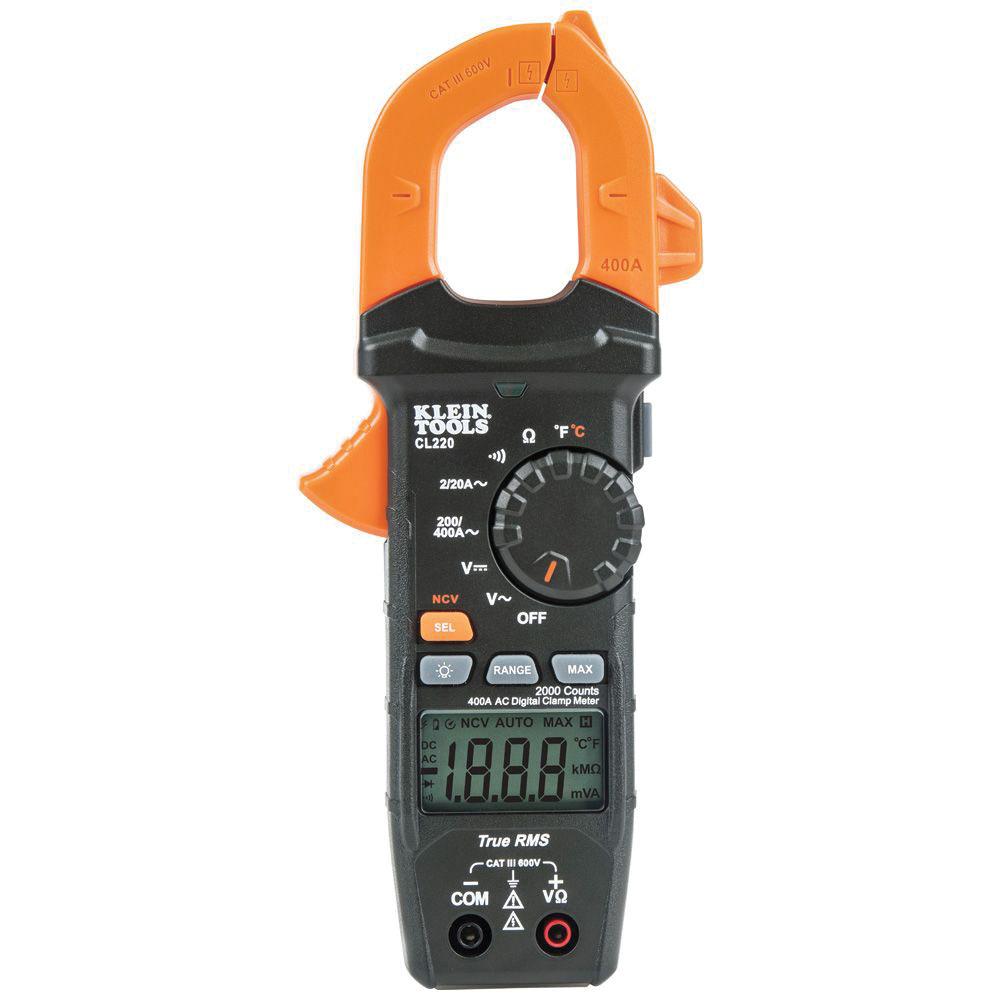

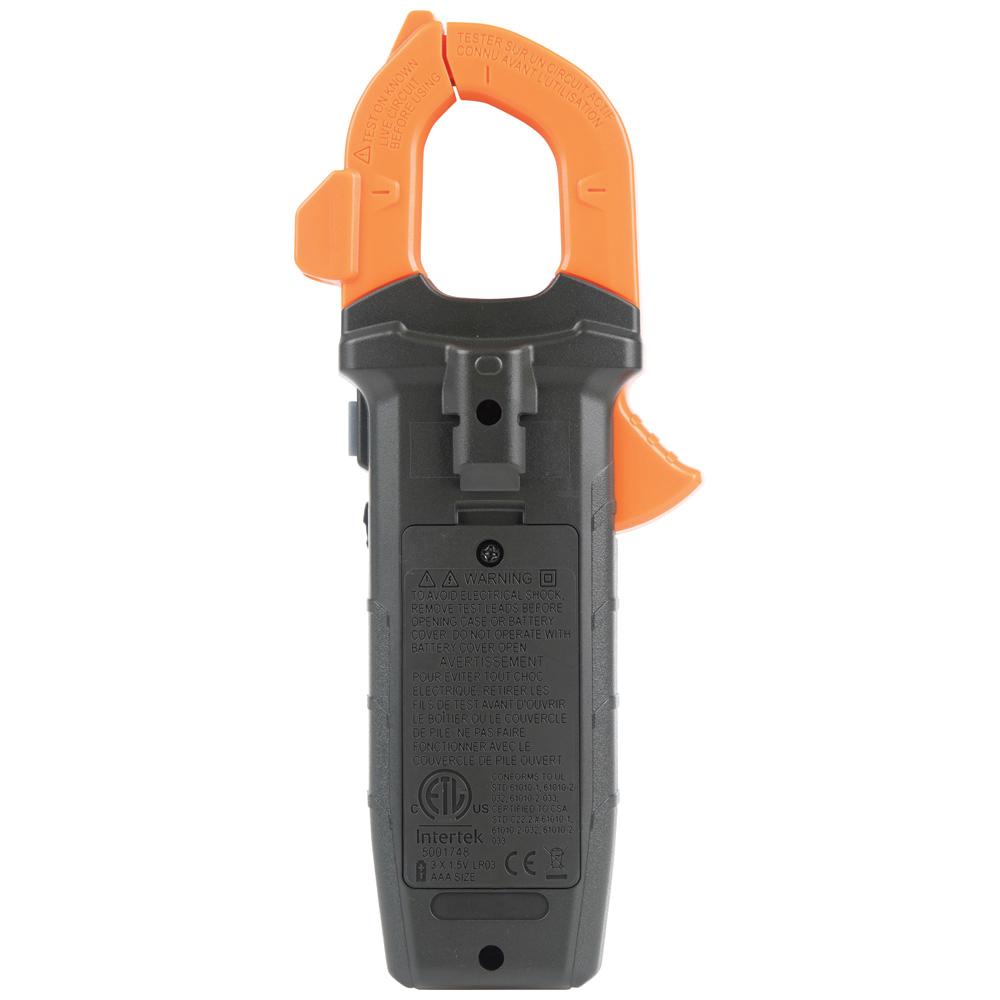

KLEIN TOOLS® CL220 Digital Clamp Meter, 600 VAC/VDC, 400 A, 20 MOhm, 1.6 in Jaw, 50/60 Hz, LCD Display

  • Manufacturer: Klein Tools, Inc
  • Brand Name: Klein Tools®
  • Part#: 59878
  • MPN: CL220
  • UPC: 092644692857
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance and continuity via test leads and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.

KLEIN TOOLS® Digital Clamp Meter, 600 VAC/VDC, 400 A, 20 MOhm Resistance, 1.6 in Jaw, 2000, 50/60 Hz, LCD Display, +/-2 to 2.5 % AC Current Accuracy, +/-2 to 2.5 % VAC, +/-1 % VDC Voltage Accuracy, CAT III 600 V, Class 2, -40 to 1832 deg F Operating, <95 % Humidity Rating, +/-1.2 to 2 % Resistance Accuracy, +/-1.2 % Temperature Accuracy, ABS, 8.45 in L x 3.5 in W x 1.5 in H

AC Current Accuracy      :      +/-2 to 2.5 %
Amperage Rating      :      400 A
Counts      :      2000
Dimensions      :      8.45 in L x 3.5 in W x 1.5 in H
Display Type      :      LCD
Frequency Rating      :      50/60 Hz
Humidity Rating      :      <95 %
Jaw Capacity      :      1.6 in
Material      :      ABS
Operating Temperature      :      -40 to 1832 deg F
Resistance Accuracy      :      +/-1.2 to 2 %
Resistance      :      20 MOhm
Safety Rating      :      CAT III 600 V, Class 2
Temperature Accuracy      :      +/-1.2 %
Voltage Accuracy      :      +/-2 to 2.5 % VAC, +/-1 % VDC
Voltage Rating      :      600 VAC/VDC
  • Measures AC current and NCVT via clamp and AC/DC voltage, resistance and continuity via test leads and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Test lead holder on side of clamp and optional magnetic hanger for meter for hands-free operation
  • Measures temperature with a K-type thermocouple probe
  • Auto range, hold, data hold and max value
  • Auto power off after 10 min to conserve battery life
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 6.6 ft (2 m) drop
  • CAT III 600 V, Class 2, double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light industrial locations
