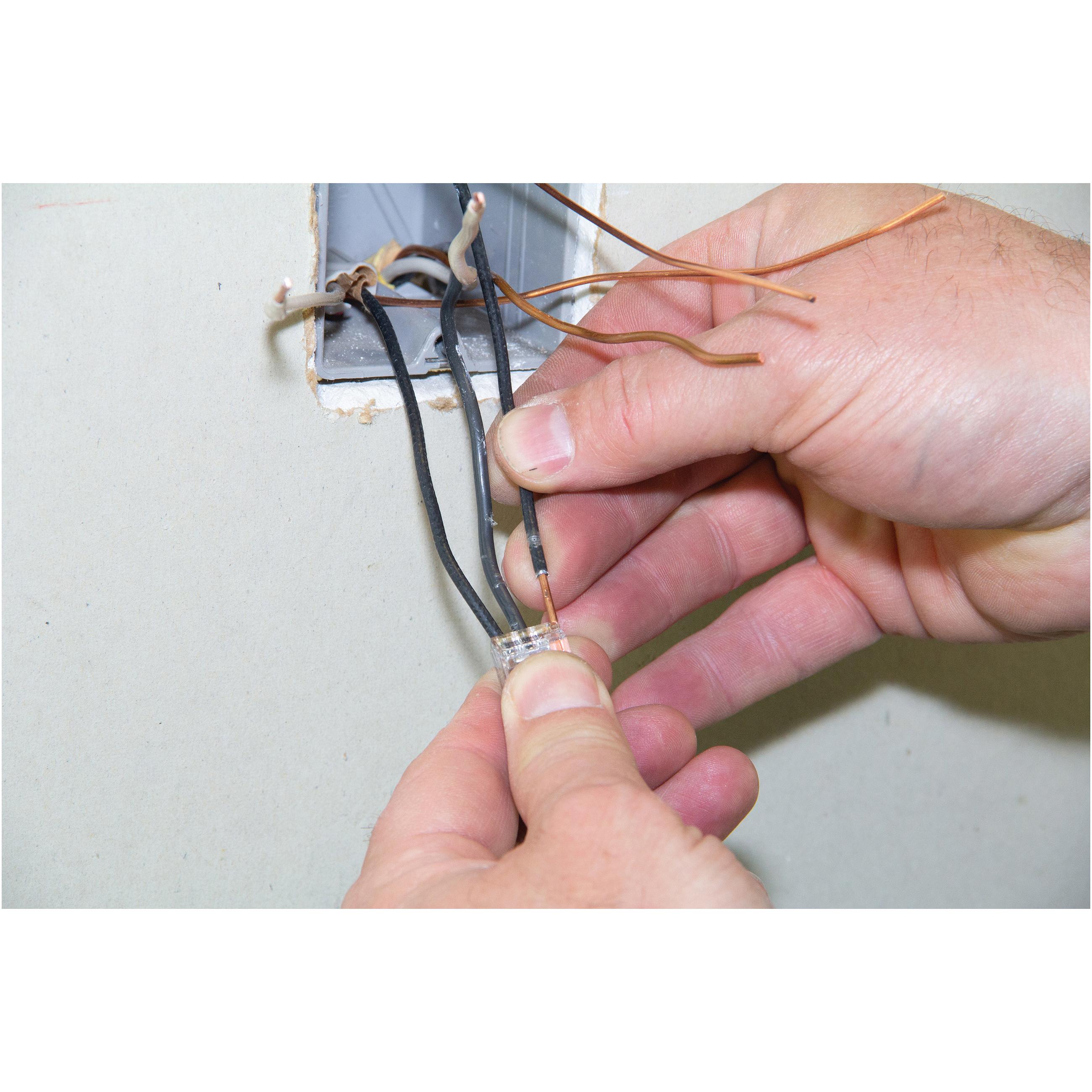

Gardner Bender wire connectors are engineered to exceed the expectations of professional electricians. Perfect for commercial or residential applications GB® wire connectors offer world class quality, performance and application versatility. Our connectors provide maximum application flexibility by offering contractors and do it yourselfers myriad packaging options, ergonomic designs and wire ranges. Easy and fast to use, just strip and push conductors into PushGard connectors to make reliable, secure connections.

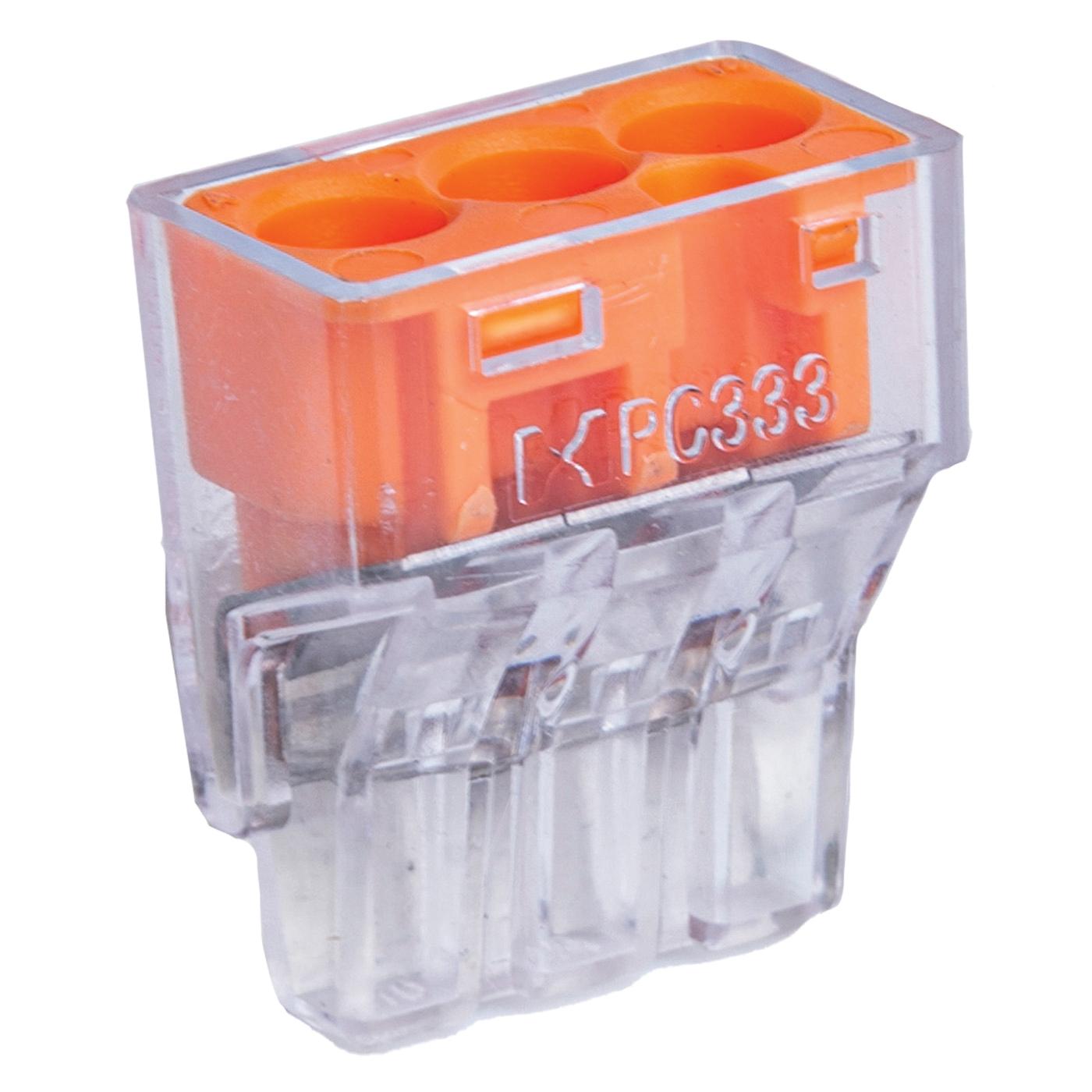

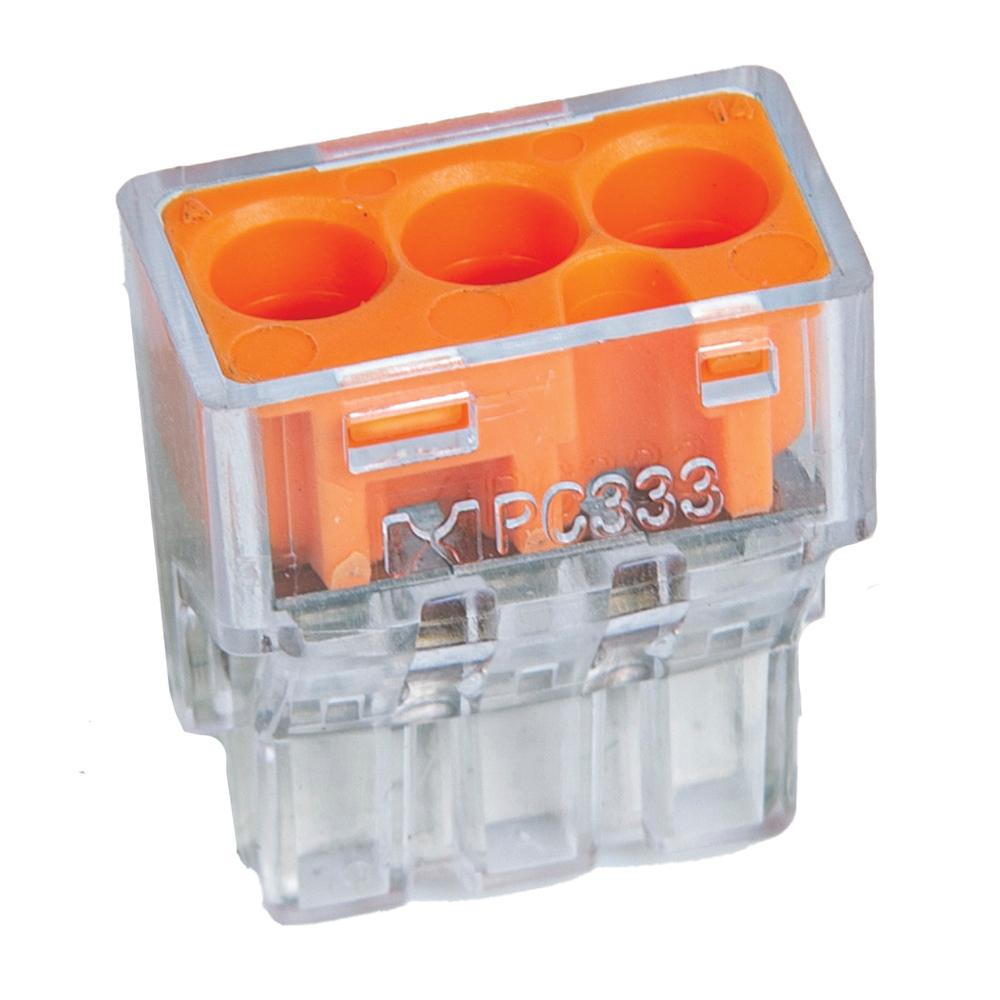

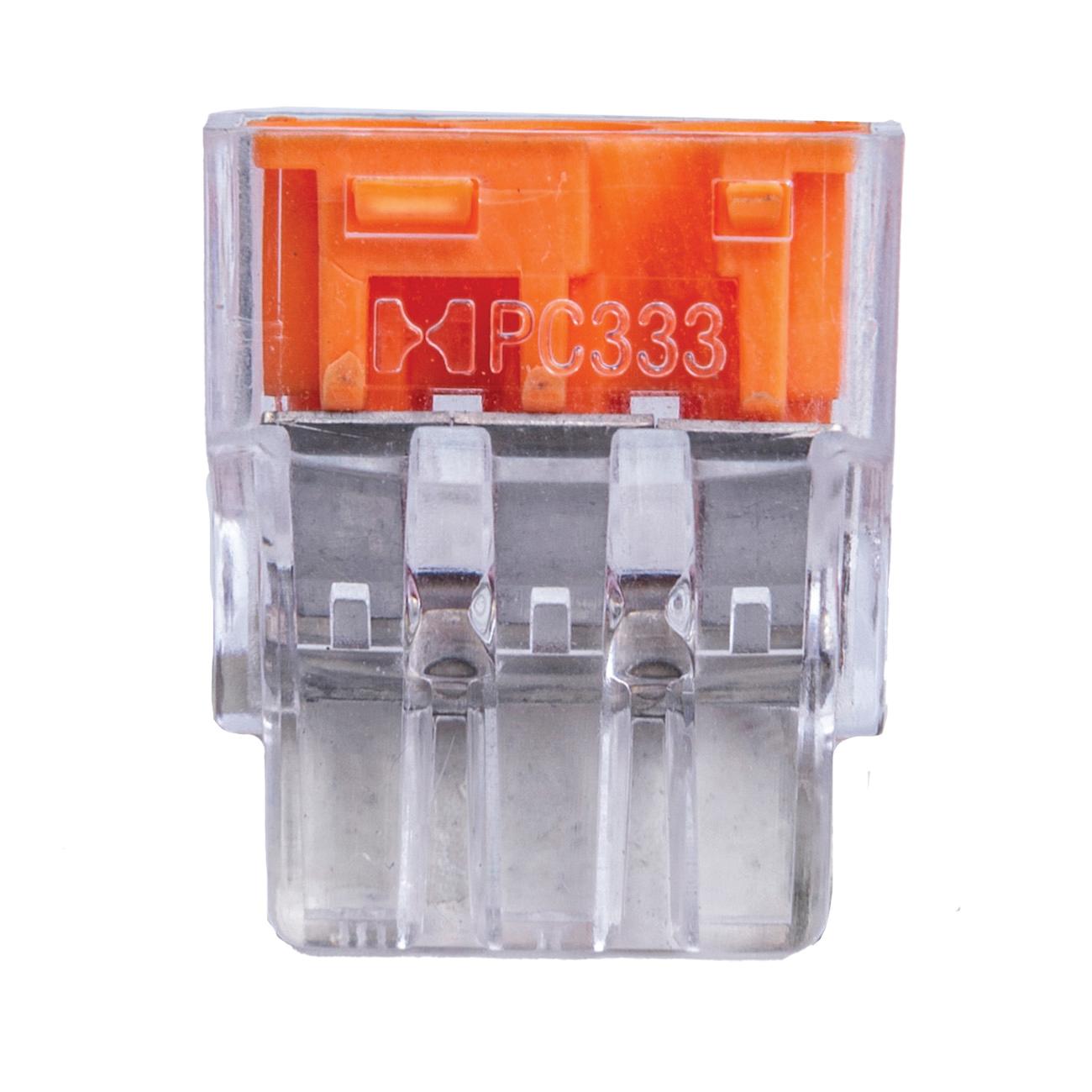

GB® PushGard Wire Connector, Model: PC3, 22 to 12 AWG Wire, Copper Connection Type, Polycarbonate, Orange, 0.78 in Length, 0.53 in Width, 0.37 in Height
| Color | : | Orange |
| Connection Type | : | Copper |
| Height | : | 0.37 in |
| Length | : | 0.78 in |
| Material | : | Polycarbonate |
| Model | : | PC3 |
| Width | : | 0.53 in |
| Wire Size | : | 22 to 12 AWG |
- Simplified insertion and compact size helps in tight locations
- Clear polycarbonate housings have color-coded side panels for connection verification and identification
- Copper to copper connections only
- Continuity test point for easy voltage checks
- With corrosion-resistant stainless steel springs, PushGard connectors restrict wire pull-out, yet corrections are possible with a simple left right twist and pull
- 3-port configuration
