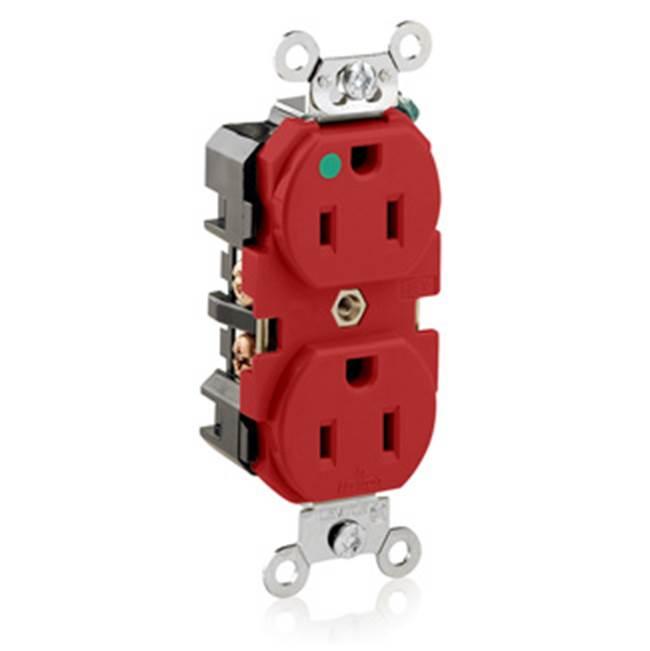

Leviton® Duplex Receptacle, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, Extra Heavy-Duty, Hospital Grade, NEMA Rating: NEMA 5-15R, 2000 V Dielectric Strength, Self-Grounding Grounding, Back Wired, Side Wired Terminal, 14 to 10 AWG Conductor, Nylon Housing, Brass Contact, Brass Strap, Red, -40 to 60 deg C, 1.53 in Length, 1.11 in Width, 4.06 in Height
| Amperage Rating | : | 15 A |
| Color | : | Red |
| Conductor Size | : | 14 to 10 AWG |
| Contact Material | : | Brass |
| Dielectric Strength | : | 2000 V |
| Grade | : | Extra Heavy-Duty, Hospital |
| Grounding | : | Self-Grounding |
| HP Rating | : | 1/2 hp |
| Height | : | 4.06 in |
| Housing Material | : | Nylon |
| Length | : | 1.53 in |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Strap Material | : | Brass |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Back Wired, Side Wired |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.11 in |
