The Tork® 1100 Series Electric Timers offer 24 hour time switches with automatic On-Off control when operation is required at the same time every day, seven days a week. Applications include On-Off control of heating, air conditioning, display lighting, ventilating, pumps and fans. Tork Electric Timers are sold exclusively through Robertshaw® to HVACR wholesalers.
Tork® Mechanical Time Switch, 120 VAC, 40 A Resistive, 20 A Inductive, 2 hp at 120 VAC, 3 W, 1 Poles, Contact Configuration: SPST, 24 hr Time Settings, 20 min On, 75 min Off Pulse, 1000 VA Pilot Duty, 14 to 8 AWG Wire, NEMA 1 Enclosure, Metal Enclosure Type, -40 to 165 deg F, 7.8 in L x 4.5 in W x 3 in H
| Amperage Rating | : | 40 A Resistive, 20 A Inductive |
| Contact Configuration | : | SPST |
| Dimensions | : | 7.8 in L x 4.5 in W x 3 in H |
| Enclosure Type Material | : | Metal |
| Enclosure Type | : | NEMA 1 |
| Number of Poles | : | 1 |
| Pilot Duty Rating | : | 1000 VA |
| Power Rating | : | 2 hp at 120 VAC, 3 W |
| Pulse Duration | : | 20 min On, 75 min Off |
| Temperature Rating | : | -40 to 165 deg F |
| Time Settings | : | 24 hr |
| Voltage Rating | : | 120 VAC |
| Wire Size | : | 14 to 8 AWG |
- Heavy-duty synchronous, self-starting high torque timing motor
- Power consumption: 3 Watts maximum
- Automatic operation for 24 hour timers with one pair of On-Off trippers supplied - accommodates up to 12 pairs
- Multilingual dial markings - English, French and Spanish
- Temporary manual override

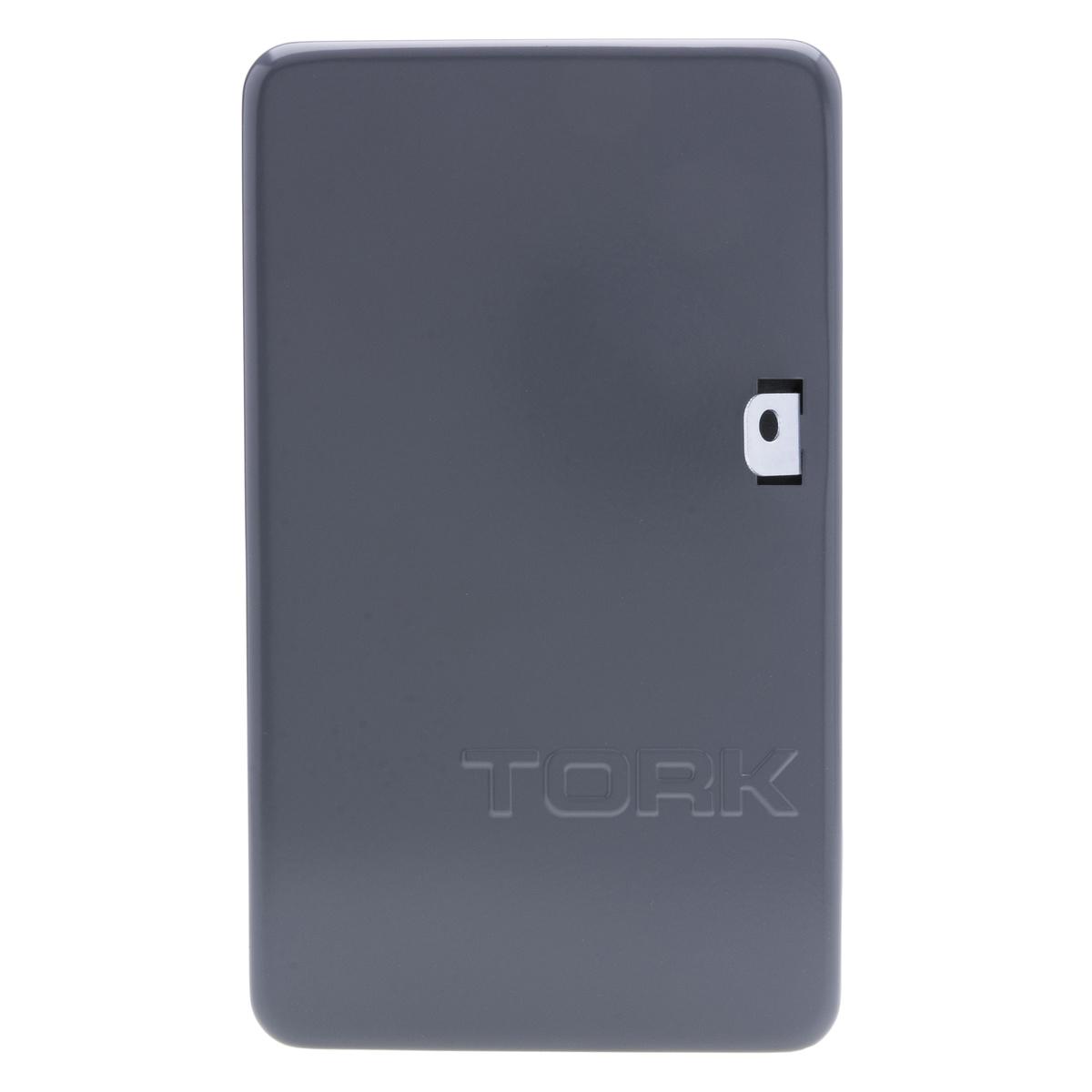

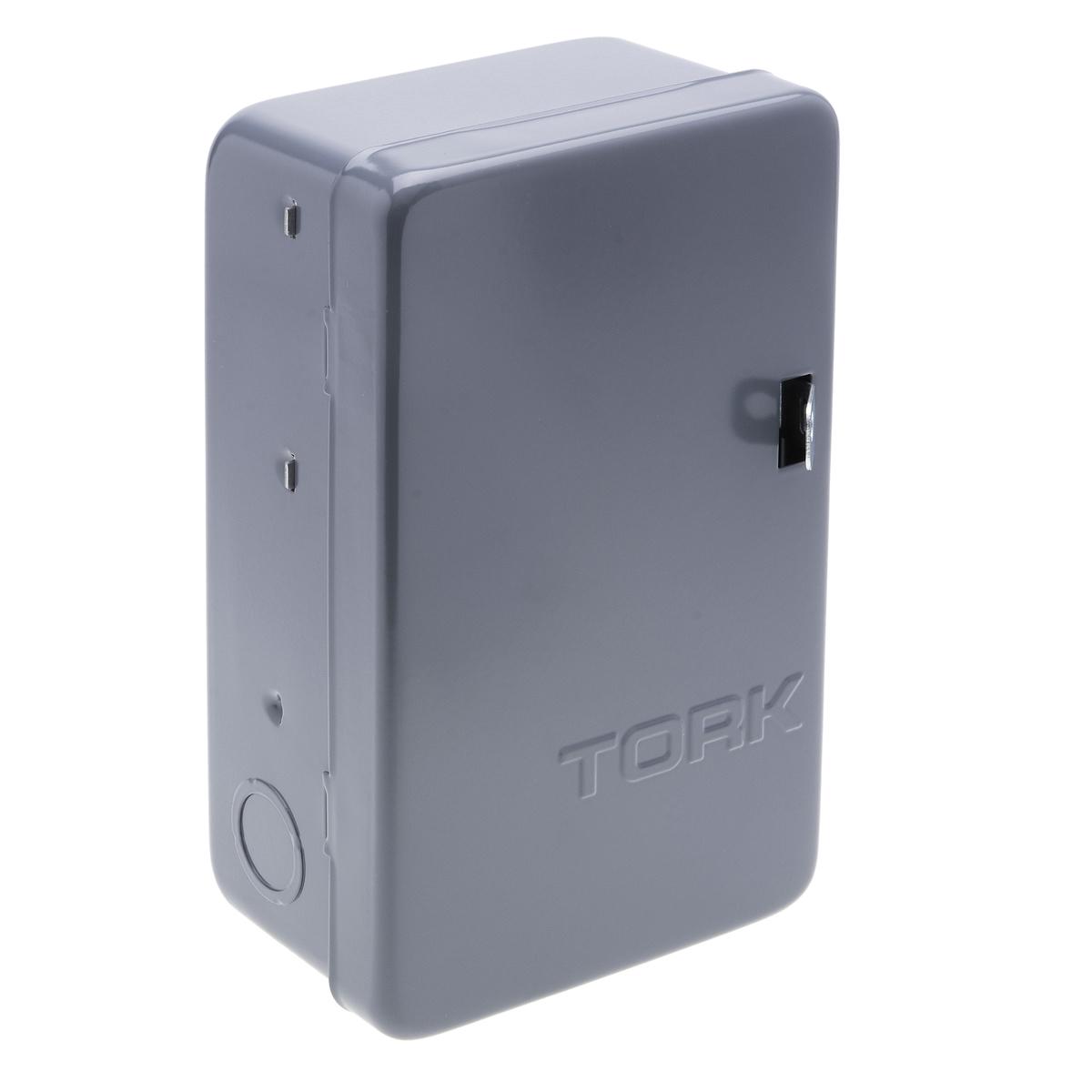

- General purpose (NEMA 1) metal enclosure of deep-drawn steel, enamel coated and lockable hasp

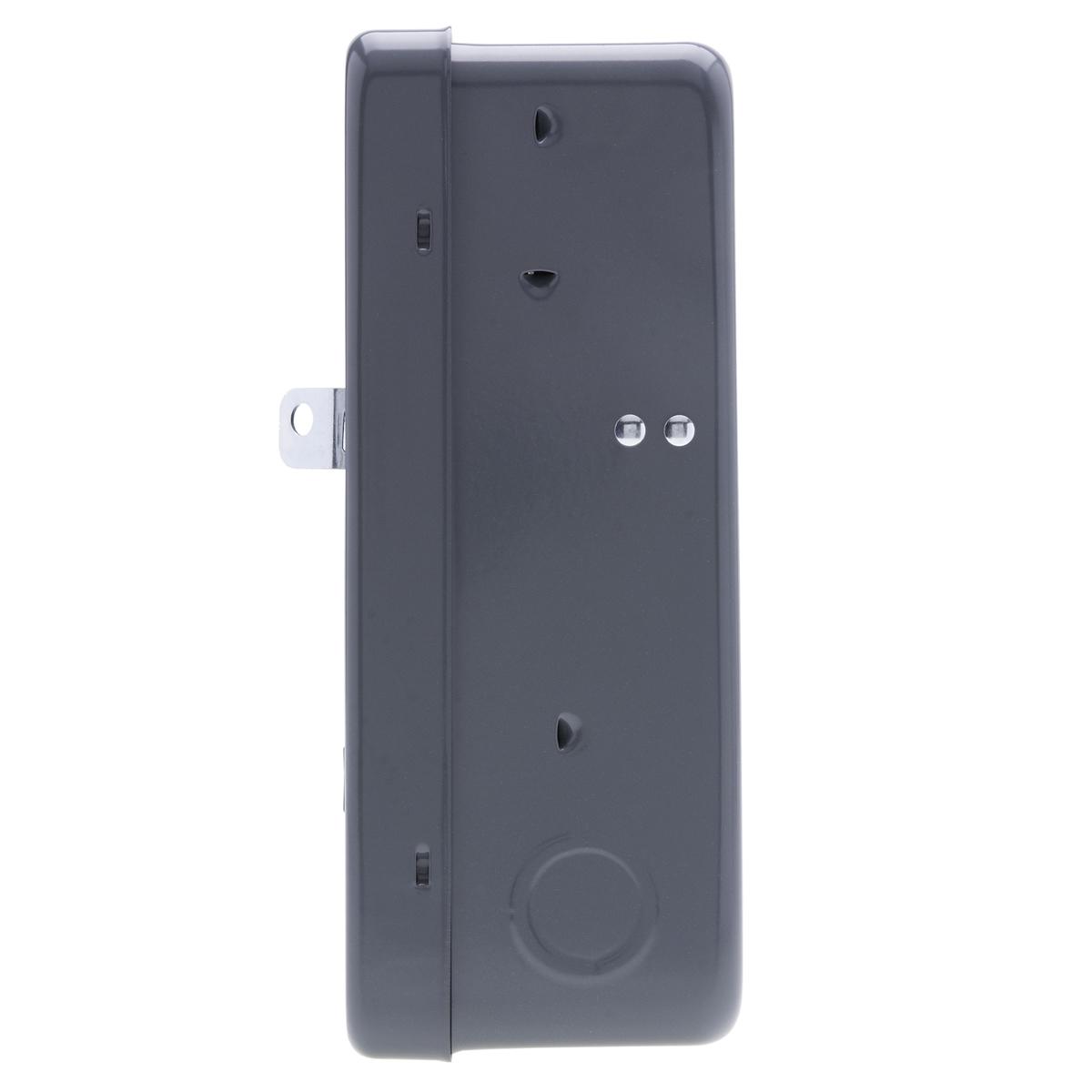

- Combination 1/2 in and 3/4 in knockouts on both sides, bottom and back
