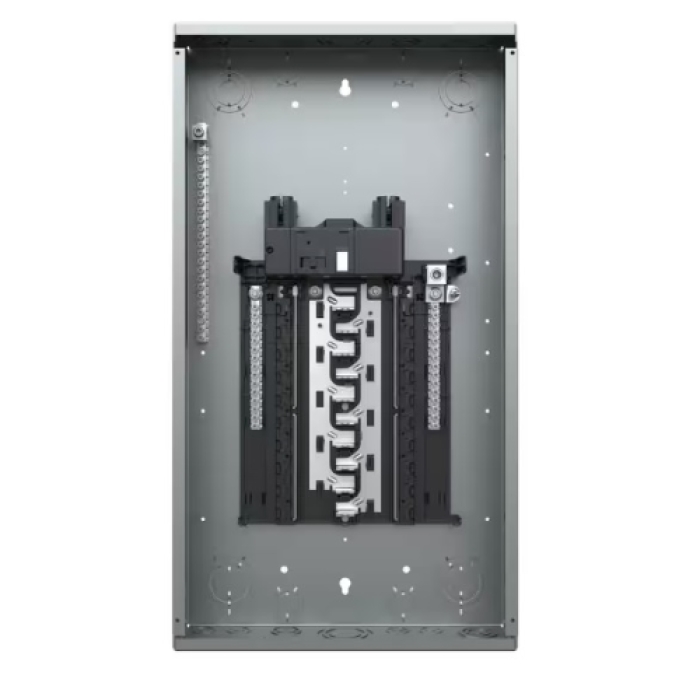

Siemens low voltage plug-on neutral ready Standard Series assembled load center. Main breaker with 20 1 in spaces allowing max 40 circuits. 1-phase 3-wire system rated 120/240 V (200 A) 22 kAIC. Special features - aluminum bus, gray trim NEMA Type 1 enclosure for indoor use.
Siemens Main Breaker Load Center, Series: SN Series, 200 A, 120/240 V, 22 kAIC Interrupt, 3-Wire Wiring Configuration, 1 ph, 20 Spaces, 40 Circuits, Aluminum Bus, Plug-On Neutral Type, NEMA 1, 26 in L x 14.25 in W x 3.88 in D Enclosure Box, 27.13 in L x 15.5 in W x 3.88 in D, Powder-Coated, Gray
| Amperage Rating | : | 200 A |
| Bus Material | : | Aluminum |
| Color | : | Gray |
| Dimensions | : | 27.13 in L x 15.5 in W x 3.88 in D |
| Enclosure Box Size | : | 26 in L x 14.25 in W x 3.88 in D |
| Enclosure Type | : | NEMA 1 |
| Finish | : | Powder-Coated |
| Interrupt Rating | : | 22 kAIC |
| Neutral Type | : | Plug-On |
| Number of Circuits | : | 40 |
| Number of Spaces | : | 20 |
| Phase | : | 1 ph |
| Series | : | SN Series |
| Voltage Rating | : | 120/240 V |
| Wiring Configuration | : | 3-Wire |
- Invertible for bottom feed application
- SN Series plug-on neutral load centers come with one factory installed ground bar
- All devices come with an integrated neutral bus
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- The pre-positioned bond screw eliminates bond strap/screw assemblies and reduces the risk of losing components in the field
- The patented INSTA-WIRE™ neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- The outdoor enclosure has a slide hinge door for the easiest installation and can be removed by backing out only one screw
