Leviton®'s commercial specification-grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions.

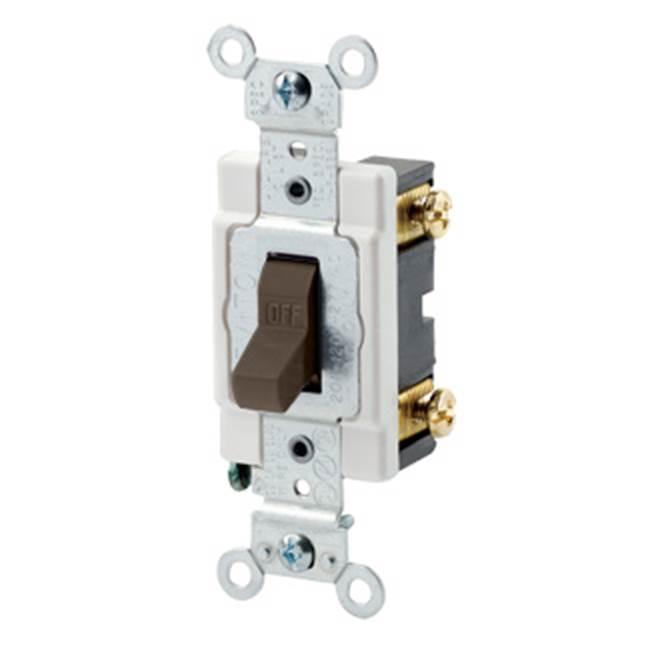

Leviton® Toggle Switch, 120/277 V, 20 A, 1 hp, 1 Pole, Screw Mount, Thermoplastic Body, Polycarbonate Toggle Material, Silver Cadmium Contact, Thermoplastic Actuator Material, 1500 V Dielectric, 14 to 12 AWG Wire, Brown, -40 to 65 deg C, 4.06 in Height, 1.31 in Width, 0.9 in D
| Actuator Material | : | Thermoplastic |
| Amperage Rating | : | 20 A |
| Body Material | : | Thermoplastic |
| Color | : | Brown |
| Contact Material | : | Silver Cadmium |
| Depth | : | 0.9 in |
| Dielectric Strength | : | 1500 V |
| Height | : | 4.06 in |
| Mounting Type | : | Screw |
| Number of Poles | : | 1 |
| Power Rating | : | 1 hp |
| Temperature Rating | : | -40 to 65 deg C |
| Toggle Material | : | Polycarbonate |
| Voltage Rating | : | 120/277 V |
| Width | : | 1.31 in |
| Wire Size | : | 14 to 12 AWG |
Instruction/Installation Manual
