BrassCraft® CSSD44-24 15867
  1. pin-int

BrassCraft® CSSD44-24 15867

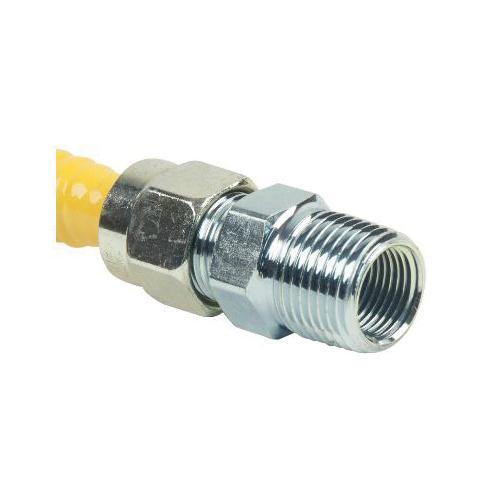

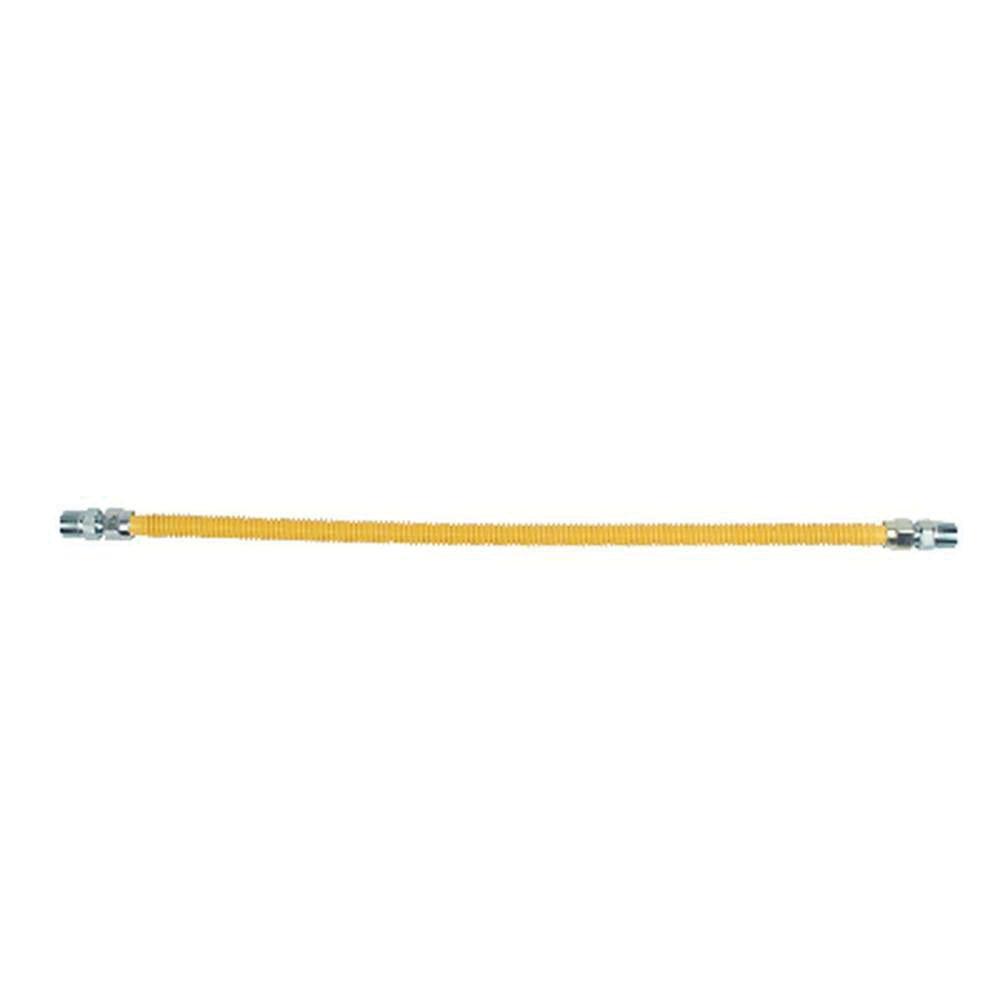

BrassCraft® CSSD Series CSSD44-24 Gas Appliance Connector, 1/2 in, 24 in L, 3/8 in ID, 1/2 in OD, MIP, Stainless Steel

  • Manufacturer: BrassCraft Manufacturing Company
  • Brand Name: BrassCraft®
  • Part#: 15867
  • MPN: CSSD44-24
  • UPC: 026613112336
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

BrassCraft® ProCoat® stainless steel gas connector is engineered with added safety in mind. The proprietary polymer-coating is designed to withstand prolonged exposure to harsh household chemicals, UV-rays and salt. ProCoat® is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat® coating is baked directly onto the connector surface at high-temperatures to provide a uniform-coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion-resistance available.

BrassCraft® Gas Appliance Connector, CSSD Series, MIP Connection, 1/2 in Fitting, 85000 Btu/hr, 136000 Btu/hr, 24 in Length, 3/8 in Inside Diameter, 1/2 in Outside Diameter, 0.5 psi, Stainless Steel, Yellow, Finish: Polymer Blend, -40 to 150 deg F, Domestic/Import: Domestic

BTU Rating      :      85000 Btu/hr, 136000 Btu/hr
Color      :      Yellow
Connection Type      :      MIP
Domestic/Import      :      Domestic
Finish      :      Polymer Blend
Fitting Size      :      1/2 in
Inside Diameter      :      3/8 in
Length      :      24 in
Material      :      Stainless Steel
Outside Diameter      :      1/2 in
Pressure Rating      :      0.5 psi
Series      :      CSSD Series
Temperature Rating      :      -40 to 150 deg F
  • Corrugated stainless steel with corrosion-resistant coating
  • Designed, machined and assembled in the USA
  • Superior corrosion-resistance to harsh chemicals found in most common household cleaning, plumbing repair and masonry products when compared with uncoated gas connectors
  • Strong and flexible with greater depth and number of corrugations to withstand greater torque and bend cycles
  • Meets industry standards for torsion without compromising the integrity of the coating or connector
  • Meets industry standards for repeated bending without compromising the integrity of the coating or connector
  • One-piece construction has no soldered of brazed joints
  • Smoother, burnished flare on connector ends seal with less torque
  • Uniform coat over entire length of connector for complete corrosion-resistance of the stainless steel core
  • 100% factory leak tested
