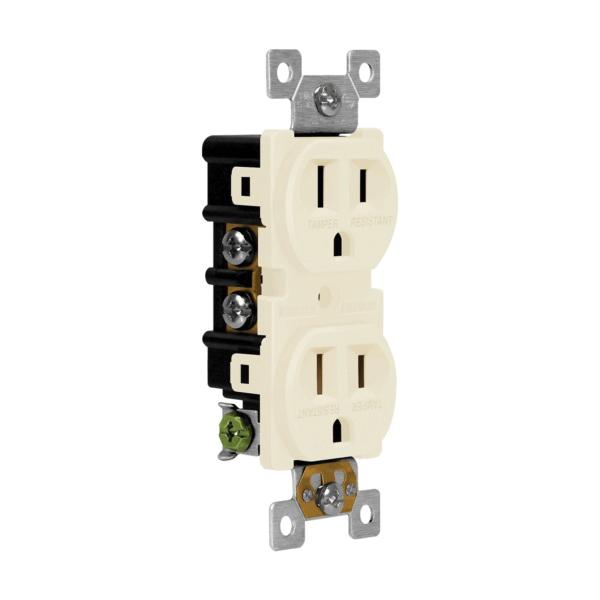

Self-grounding tamper-resistant receptacles are made of high impact-resistant polycarbonate thermoplastic for long service life. The shallow body design is for maximum wiring, with backstab or side options. These residential-grade receptacles are suitable for use in homes, apartments and condominiums. They are also applicable for commercial use in corporate buildings, hotels, restaurants and locations that only require a 15 A outlet.
ENERLITES Duplex Receptacle, 125 V, 15 A, 2 Poles, 3 Wires, Residential Grade, NEMA Rating: NEMA 5-15R, Shallow Construction, Self-Grounding Grounding, Push-In, Side Wired Terminal, Thermoplastic Housing, Steel Strap, Thermoplastic Cover, Light Almond, -104 to 160 deg F, 1.31 in Length, 4.06 in Height
| Amperage Rating | : | 15 A |
| Color | : | Light Almond |
| Construction | : | Shallow |
| Cover Material | : | Thermoplastic |
| Grade | : | Residential |
| Grounding | : | Self-Grounding |
| Height | : | 4.06 in |
| Housing Material | : | Thermoplastic |
| Length | : | 1.31 in |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Strap Material | : | Steel |
| Temperature Rating | : | -104 to 160 deg F |
| Terminal Type | : | Push-In, Side Wired |
| Voltage Rating | : | 125 V |
- Impact-resistant thermoplastic material
- Optional grounding with self-grounding clip or green terminal screw
