Gardner Bender™ switches are available in many different styles and sizes. They are used in countless applications, from basic ON-OFF to multifunction applications. Most of our electrical switches are suitable for marine, industrial or automotive applications. They are available in a variety of characteristics including actuator type, handle shape, body construction and size, terminal type, voltage rating, sealing properties and illumination. Gardner Bender™ switches are leading the industry in quality and durability.

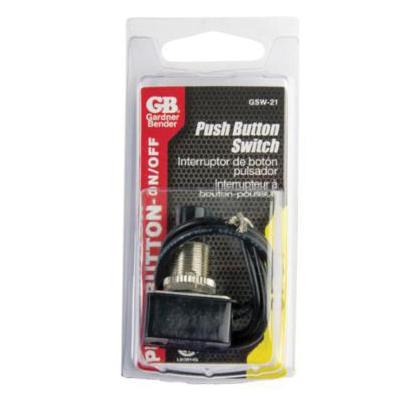

GB® Pushbutton Switch, 125/250 VAC, 4/8 A, Contact Configuration: SPST, 1 Poles, 18 AWG Wire, 1500 VAC Dielectric Strength, 105 deg C, Black Housing
| Amperage Rating | : | 4/8 A |
| Contact Configuration | : | SPST |
| Dielectric Strength | : | 1500 VAC |
| Housing Color | : | Black |
| Number of Poles | : | 1 |
| Temperature Rating | : | 105 deg C |
| Voltage Rating | : | 125/250 VAC |
| Wire Size | : | 18 AWG |

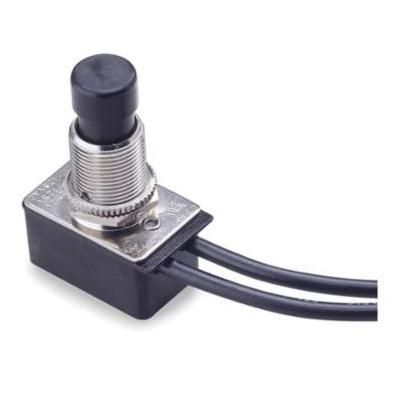

- Maintained-contact, pushbutton switch for easy and secure operation
- Push-on and push-off SPST circuitry
- 10 A/125 VAC and 4 A/250 VAC or 1/3 hp at 125 VAC
- 6 in 18 AWG wire leads
- Black finish coordinates with most decors
Specification Sheet
