The FD Series decorator countdown timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the om times for fans, lighting, motors, heaters and other energy consuming loads.

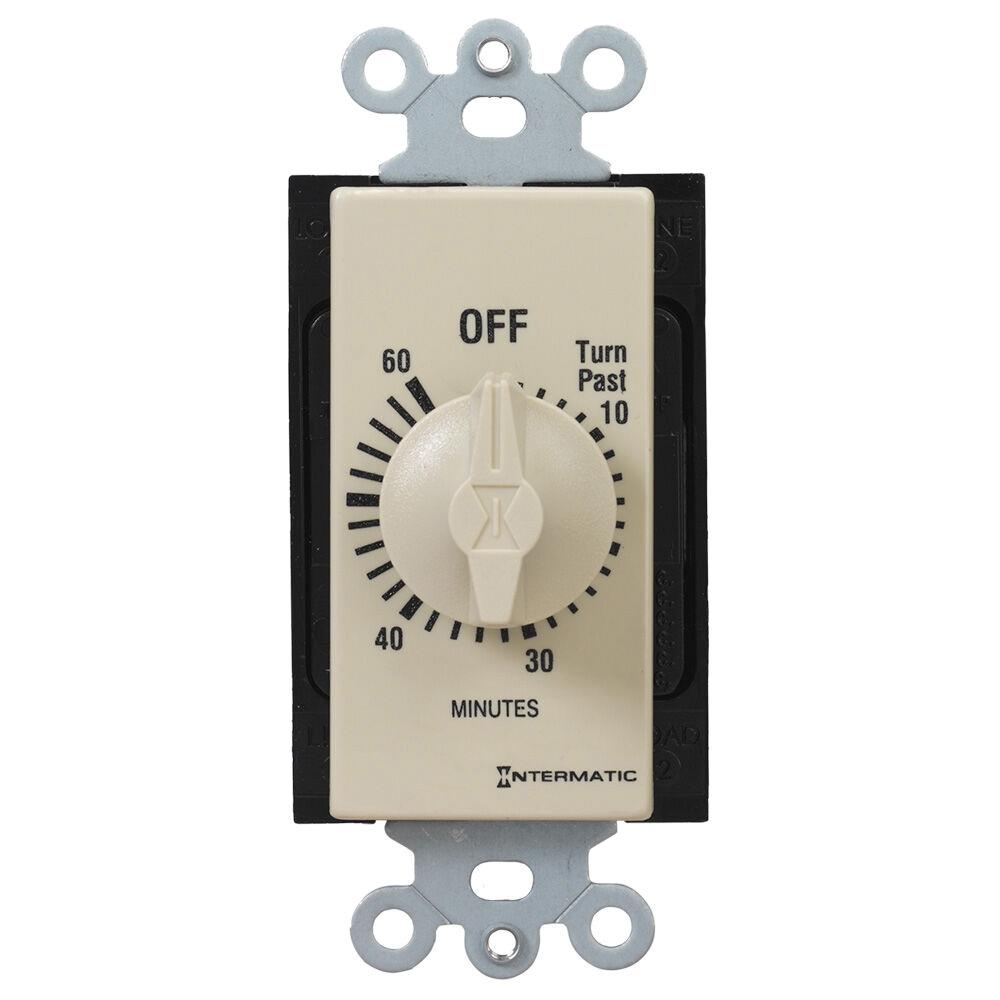

Intermatic® Decorator Spring Wound Timer, Series: FD Series, 125 to 277 VAC, 15 A, 50/60 Hz, 2 hp, 1 Pole, SPST, 60 min, Switch Rating: 10 A, 10 A, 20 A, 2500 W at 125 VAC, 2500 W at 250 VAC, 2770 W at 277 VAC Resistive Heater, 7 A at 125 VAC 50 Hz, 7 A at 125 VAC 60 Hz, 875 W Tungsten Incandescent, Wall Mount, Teeter Terminal, Countdown Operating Modes, Ivory, 40 to 120 deg F, 4-1/8 in H x 1-3/4 in W x 1-1/4 in D
| Amperage Rating | : | 15 A |
| Color | : | Ivory |
| Contact Configuration | : | SPST |
| Dimensions | : | 4-1/8 in H x 1-3/4 in W x 1-1/4 in D |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Wall |
| Number of Poles | : | 1 |
| Operating Modes | : | Countdown |
| Power Rating | : | 2 hp |
| Series | : | FD Series |
| Switch Rating | : | 10 A, 10 A, 20 A, 2500 W at 125 VAC, 2500 W at 250 VAC, 2770 W at 277 VAC Resistive Heater, 7 A at 125 VAC 50 Hz, 7 A at 125 VAC 60 Hz, 875 W Tungsten Incandescent |
| Temperature Rating | : | 40 to 120 deg F |
| Terminal Type | : | Teeter |
| Timing Range | : | 60 min |
| Voltage Rating | : | 125 to 277 VAC |
- Breaks circuit at end of timing cycle
- No electricity required to operate
- Replaces any standard or decorator single or multi-gang wall switch
- Automatically limits on time for energy consuming loads
- Quick and easy installation
- Time saving up front terminal connection with teeter type terminals
- Incandescent/fluorescent/CFL/LED compatible
- No neutral connection is required
