Broan-NuTone® Losone Select Ventilation Fan, 120 V, 1.6 A, 60 Hz, 100 W Rated, 20 ga Steel, Polymeric, Galvanized Housing, White Grille, Ceiling Mount, 12-1/4 in Length, 12-1/4 in Width, 11-3/4 in Height, 14 in L x 14 in W Grille, 161 cfm at 0.1 in SP, 6 in Duct, 710 rpm Speed Rating
| Amperage Rating | : | 1.6 A |
| CFM Rating | : | 161 cfm at 0.1 in SP |
| Color | : | White Grille |
| Duct Size | : | 6 in |
| Finish | : | Galvanized Housing |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 14 in L x 14 in W |
| Height | : | 11-3/4 in |
| Length | : | 12-1/4 in |
| Material | : | 20 ga Steel, Polymeric |
| Mounting Type | : | Ceiling |
| Power Rating | : | 100 W Rated |
| Speed Rating | : | 710 rpm |
| Voltage Rating | : | 120 V |
| Width | : | 12-1/4 in |

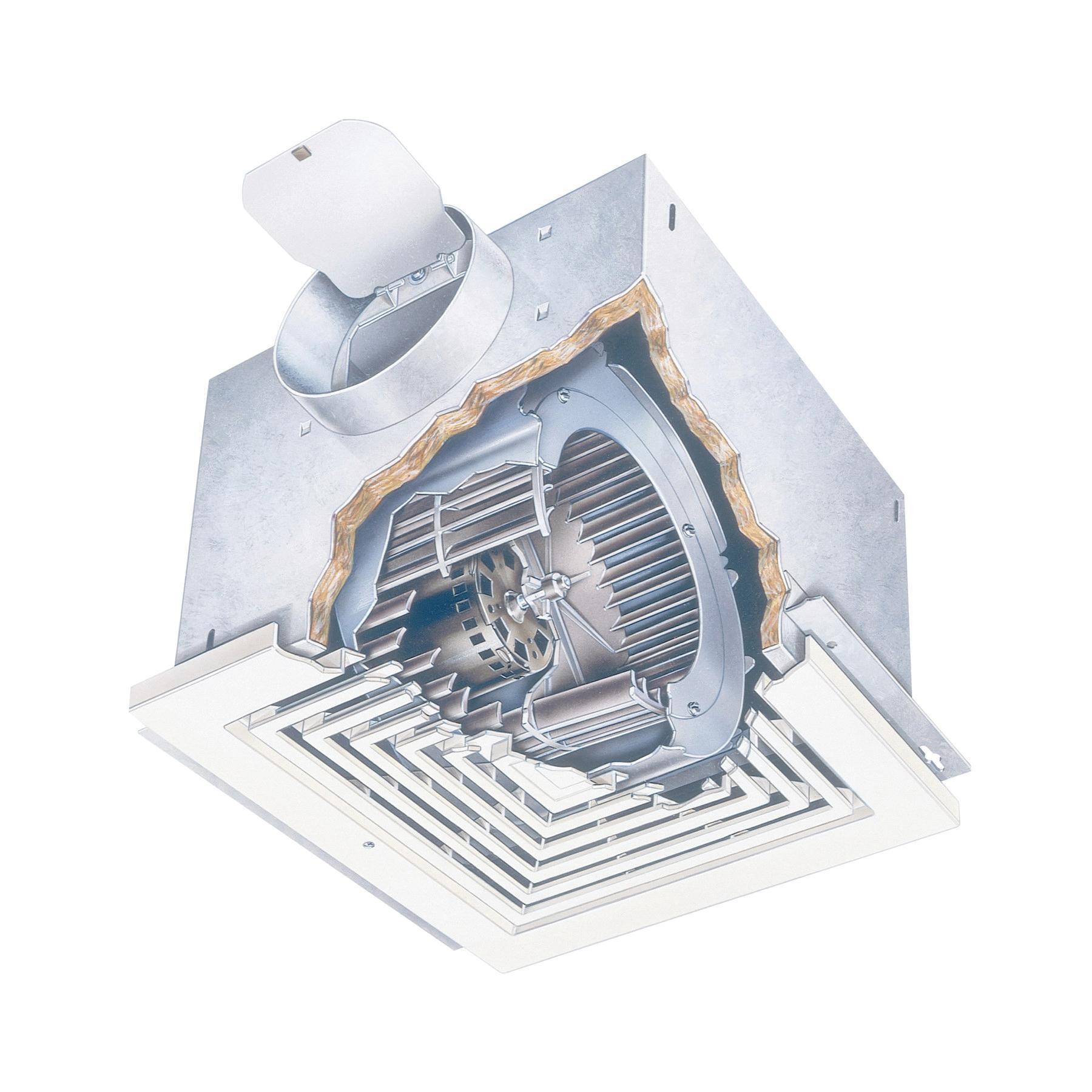

- Losone Select Ventilation Fan
- Low rpm for quiet operation
- Resilient anti-vibration-mounts
- Dynamically balanced, polymeric, centrifugal blower wheel for quiet, efficient performance
- Permanently lubricated, thermally protected motor
- Plug-in motor rated at 120 VAC
- Designed for continuous operation
- 1/2 in acoustic insulation inside
- 8-position-mounting brackets for easy installation and greater adaptability to various-mounting requirements
- Automatic backdraft damper located within duct connector
- Factory shipped in horizontal discharge position easily converted to vertical discharge
- Conceals interior

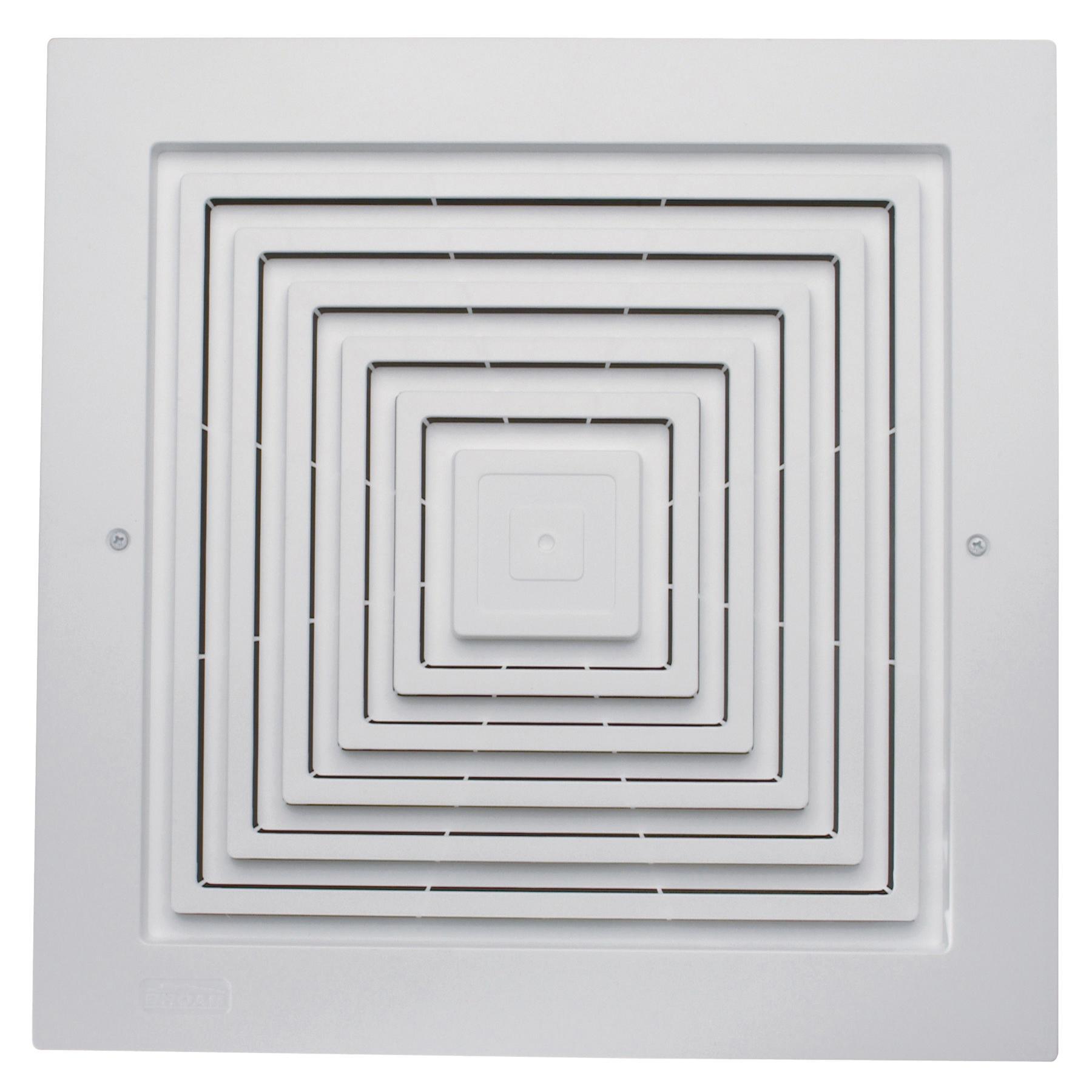

- Low profile styling blends with any decor
