These multi-range hex head connectors cover 95% of everyday applications making them the simple choice for all of your wire connection needs. Don't worry about using a hex tool to install - you can't over torque this connector because it's patented hex head design strips out at UL torque saving the wires and your fingers. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires.

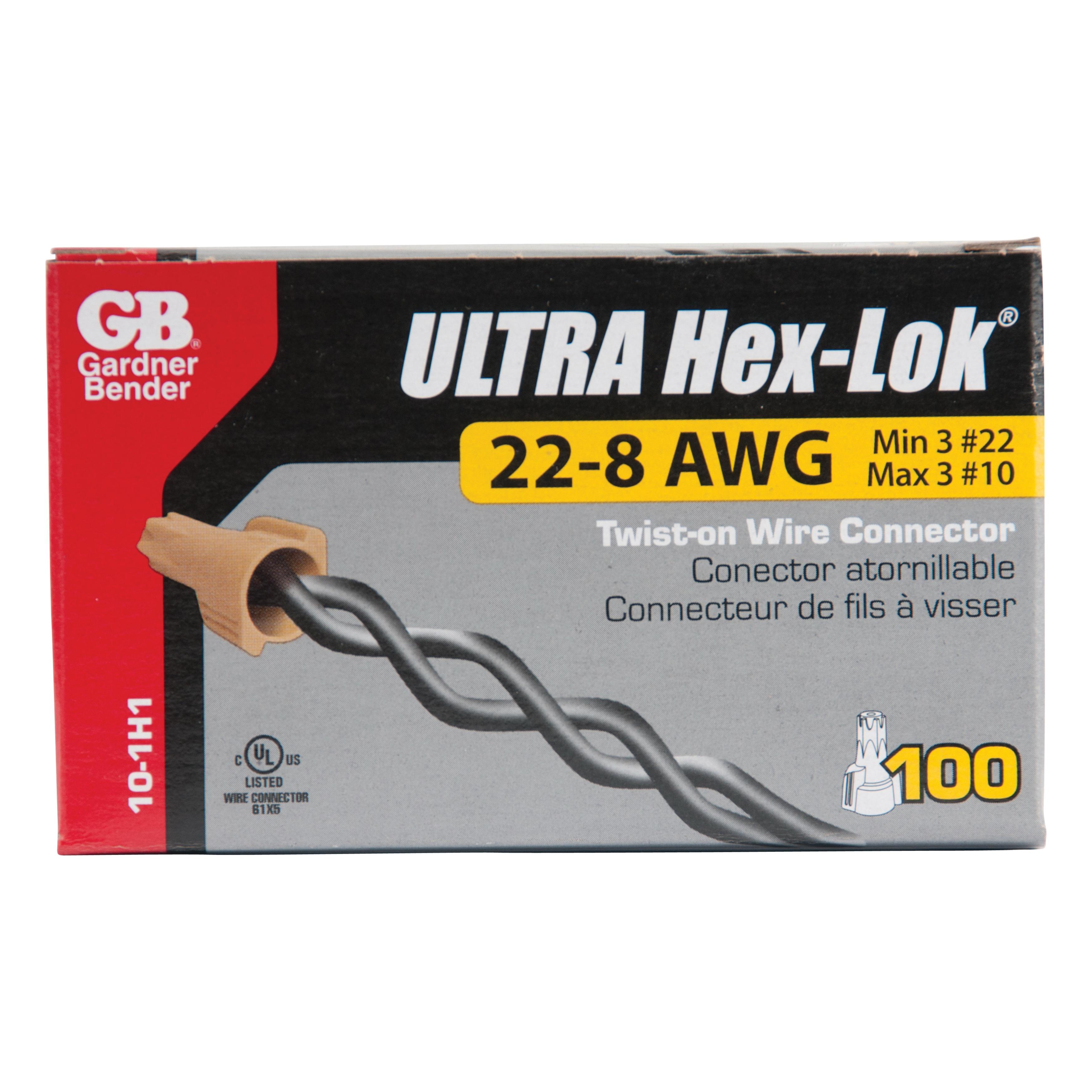

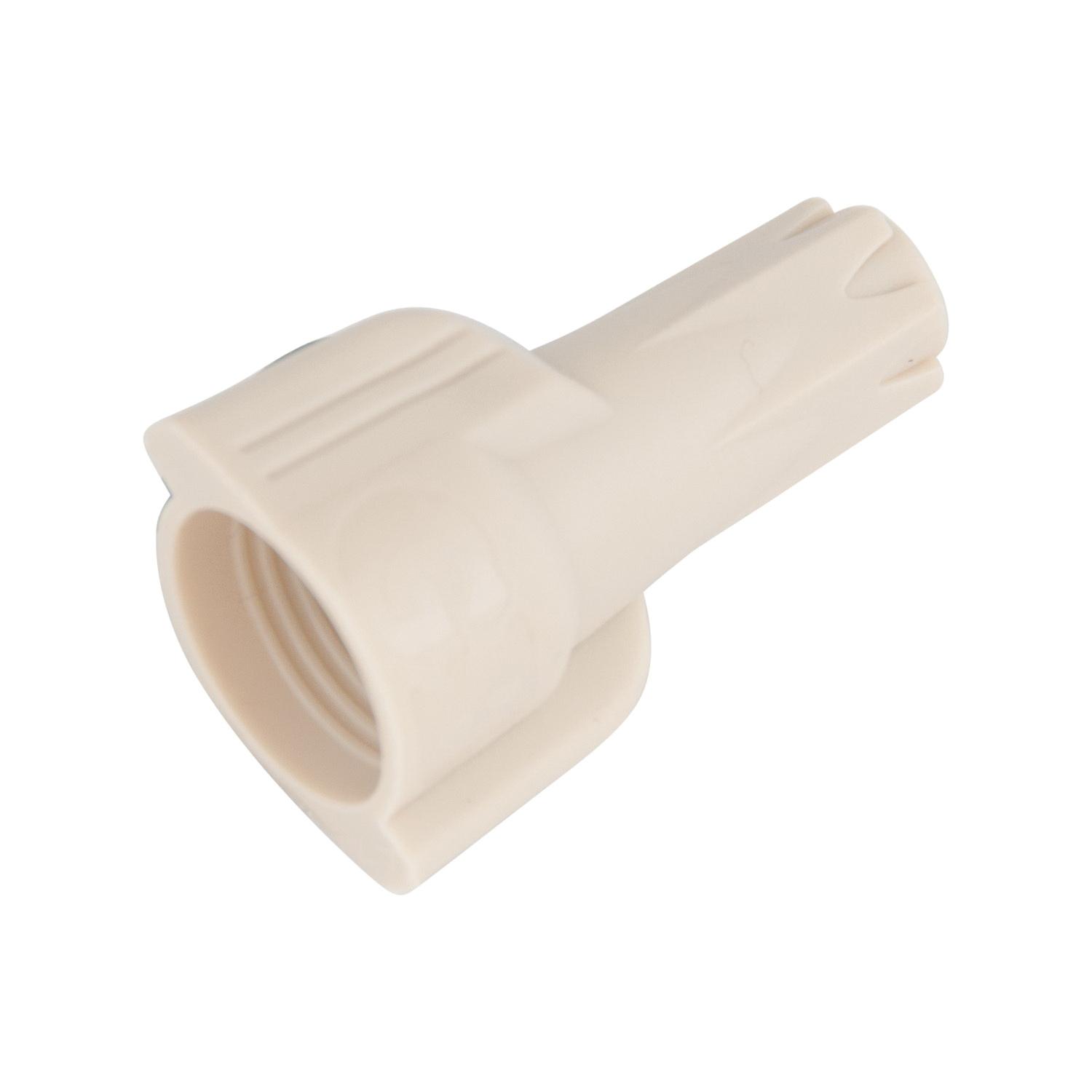

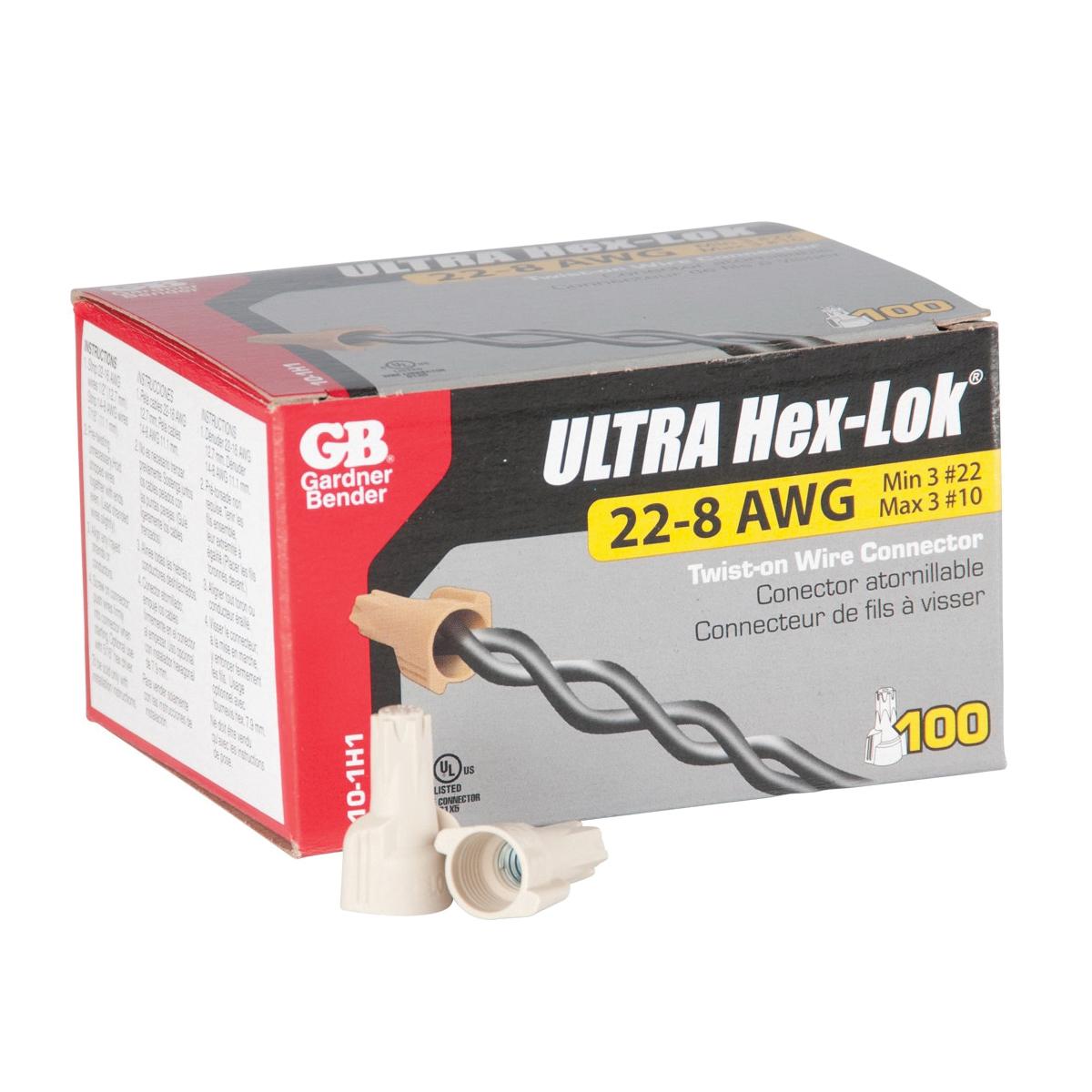

GB® Wire Connector, Model: H1, 22 to 8 AWG Wire, 600/1000 V, Thermoplastic, Finish: Zinc-Plated, Tan, 0.73 in Length, 0.34 in Width, 1.15 in Height
| Color | : | Tan |
| Finish | : | Zinc-Plated |
| Height | : | 1.15 in |
| Length | : | 0.73 in |
| Material | : | Thermoplastic |
| Model | : | H1 |
| Series | : | Hex-Lok® Series |
| Voltage Rating | : | 600/1000 V |
| Width | : | 0.34 in |
| Wire Size | : | 22 to 8 AWG |

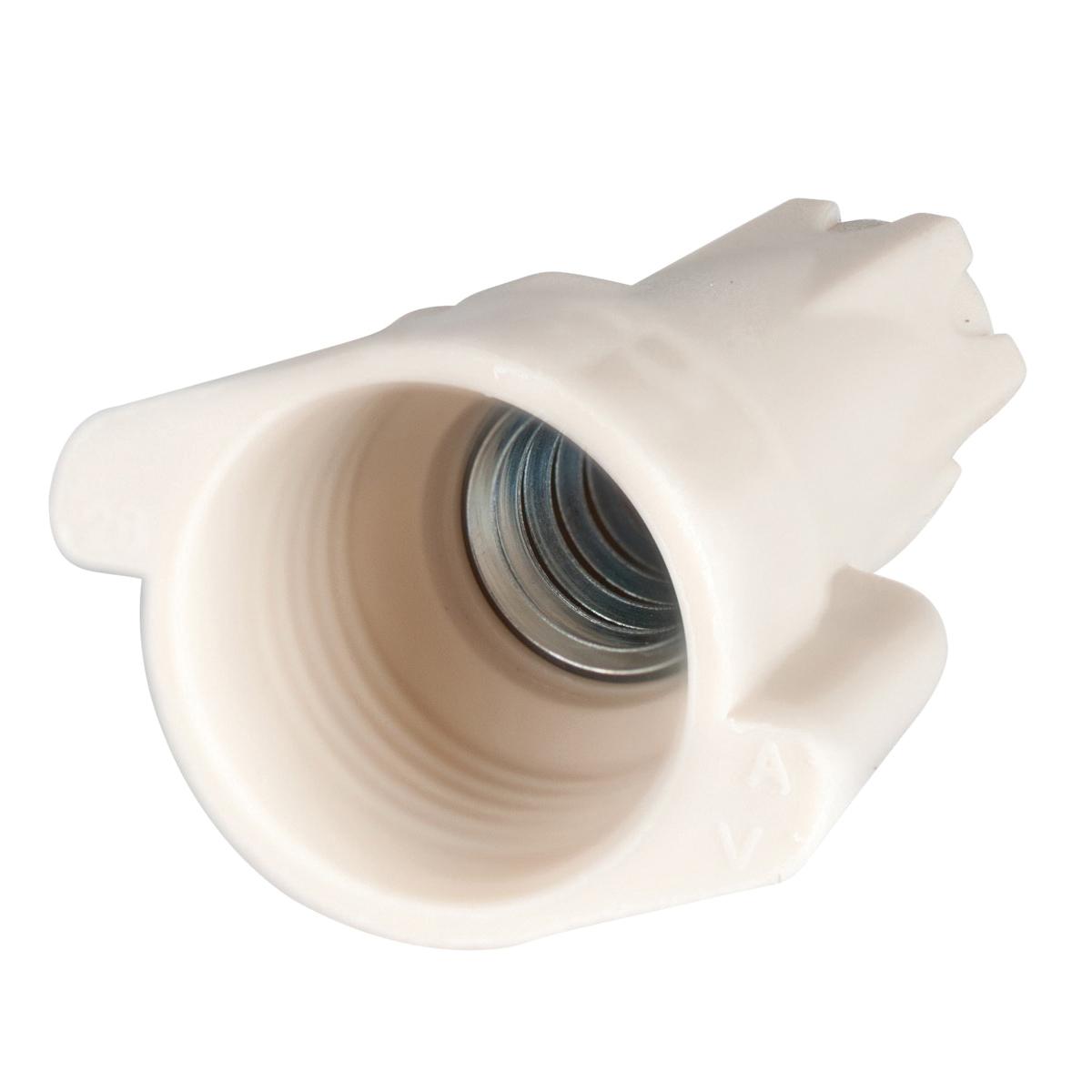

- Square wire spring grabs and holds wires for secure connections
- Long skirt covers stripped wires
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
