Sioux Chief 832 Series FinishLine™ adjustable floor drain shall be used where necessary in drainage systems. Floor drain shall allow adjustment before and after the concrete pour. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2 in FIP for optional connection. Designed in accordance with ASME A112.6.3-2001.

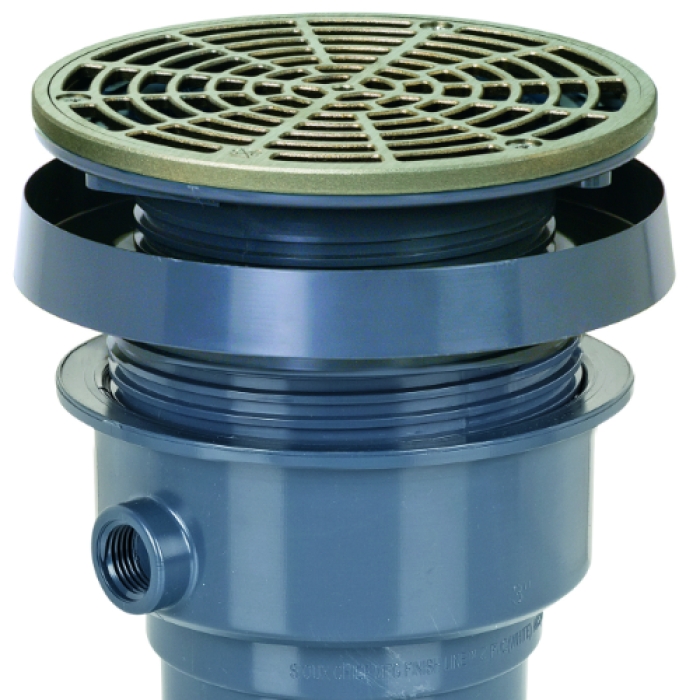

Sioux Chief FinishLine™ Floor Drain, 832 Series, 3 x 4 in Nominal, Hub Connection, PVC Drain, 6-1/2 in Grid, Finish: Nickel Bronze-Coated, 6-1/2 in Dia, Domestic/Import: Domestic, Additional Information: 1000 lb Strainer Load Rating, 5-1/2 in Dia Strainer
| Additional Information | : | 1000 lb Strainer Load Rating, 5-1/2 in Dia Strainer |
| Collection | : | FinishLine™ |
| Connection Type | : | Hub |
| Dimensions | : | 6-1/2 in Dia |
| Domestic/Import | : | Domestic |
| Drain Material | : | PVC |
| Finish | : | Nickel Bronze-Coated |
| Grid Material | : | Nickel Bronze |
| Grid Size | : | 6-1/2 in |
| Nominal Size | : | 3 x 4 in |
| Series | : | 832 Series |
- Patented system is adjustable after the pour
- ABS/PVC base adapter, ABS coring sleeve and head adapter and poly coring plug
- Nickel bronze and stainless steel strainers for use in pedestrian traffic areas
