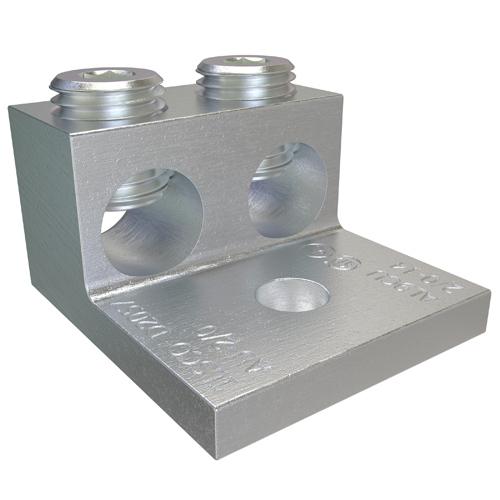

ILSCO® Lug, 35 kV, 14 to 2/0 AWG Conductor, Solid, Stranded Conductor, Mechanical Connection Type, 3/16 in Hex, 0.272 in, 1 Mounting Holes, 2 Conductors, 1 Pole, 1/4 in Stud, 120 in-lb Tightening, 0.844 in L x 1.125 in W x 0.187 in THK Tongue, Straight Tongue, Aluminum/Copper, Tin-Plated, Silver, 90 deg C, 1.469 in Length, 1-1/8 in Width, 0.794 in Height
| Color | : | Silver |
| Conductor Size | : | 14 to 2/0 AWG |
| Conductor Type | : | Solid, Stranded |
| Connection Type | : | Mechanical |
| Finish | : | Tin-Plated |
| Height | : | 0.794 in |
| Hex Size | : | 3/16 in |
| Length | : | 1.469 in |
| Material | : | Aluminum/Copper |
| Mounting Size | : | 0.272 in |
| Number of Conductors | : | 2 |
| Number of Mounting Holes | : | 1 |
| Number of Poles | : | 1 |
| Stud Size | : | 1/4 in |
| Temperature Rating | : | 90 deg C |
| Tightening Torque | : | 120 in-lb |
| Tongue Size | : | 0.844 in L x 1.125 in W x 0.187 in THK |
| Tongue Type | : | Straight |
| Voltage Rating | : | 35 kV |
| Width | : | 1-1/8 in |
