Tried and true toggle designs, Leviton® residential-grade AC quiet switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic and they feature large head, hardened triple drive screws for easy installation. Leviton's traditional switches are compatible with a wide range of Leviton® plastic and metal wallplates.

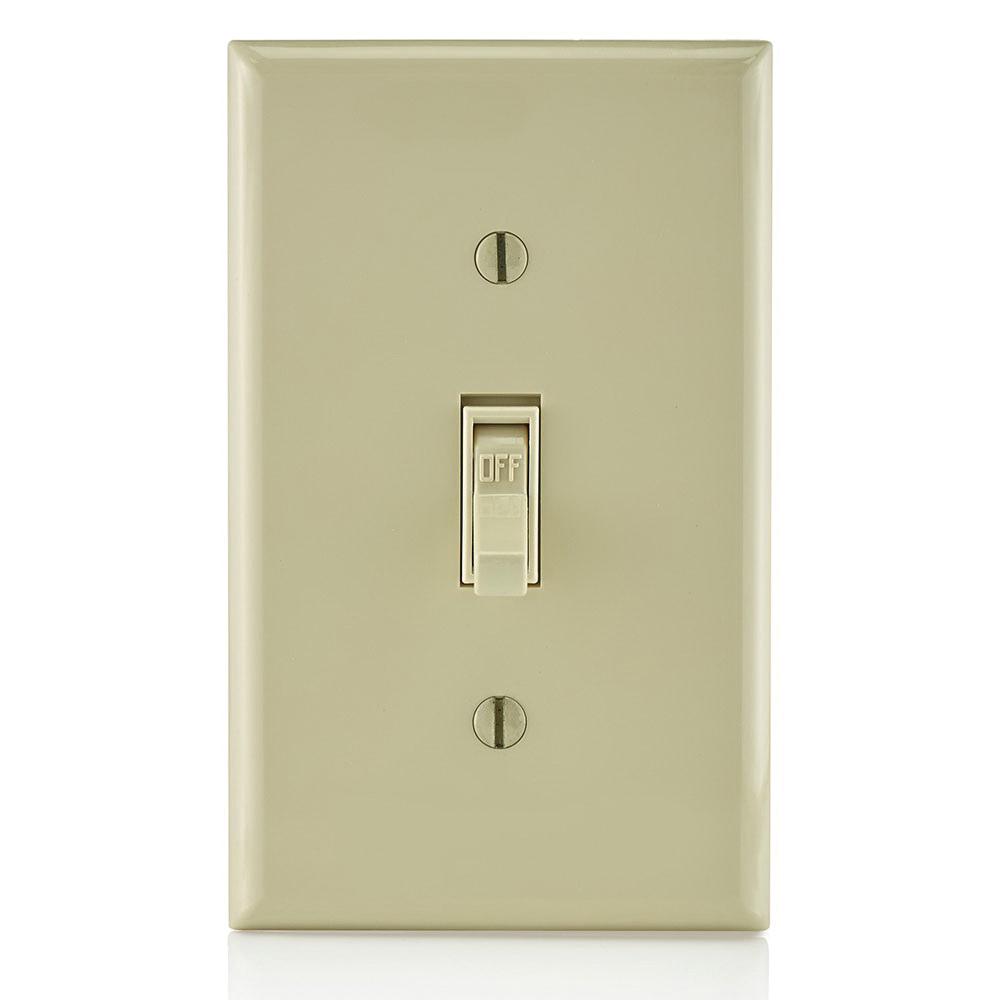

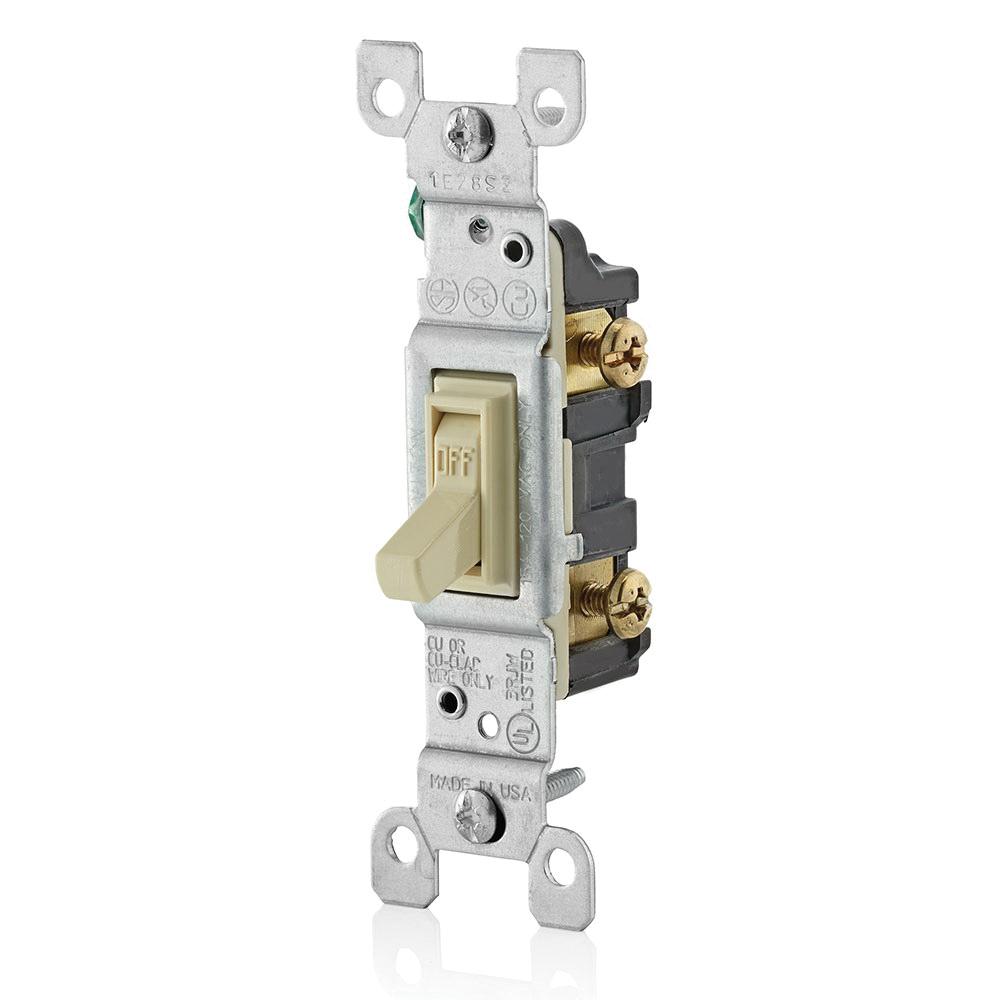

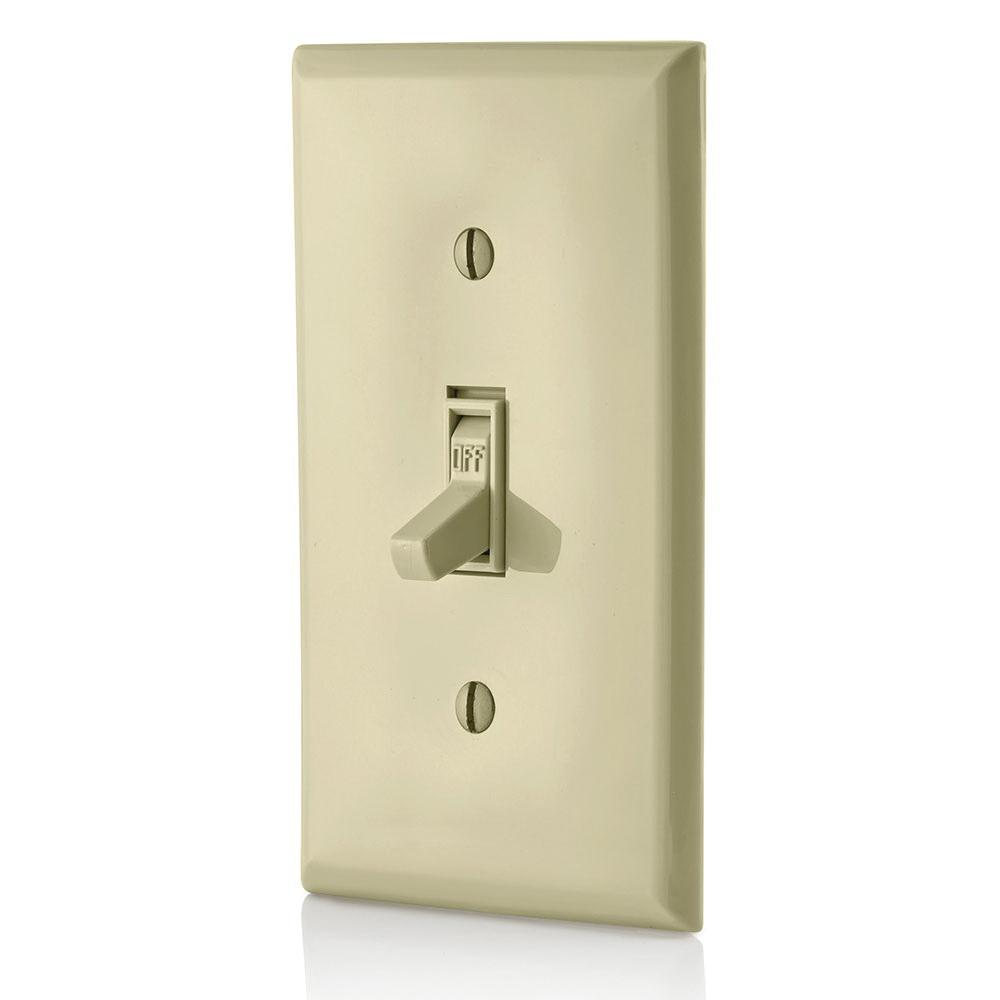

Leviton® Grounding AC Quiet Toggle Switch, 120 VAC, 15 A, 1/2 hp, Quickwire Push-In Wired, Side Wired Connection Type, 1 Pole, Residential Grade, Screw Mount, Thermoplastic Body, Thermoplastic Toggle Material, Thermoplastic Actuator Material, 14 to 12 AWG Wire, Ivory, -40 to 65 deg C, 4.2 in Height, 1.31 in Width, 1.01 in D
| Actuator Material | : | Thermoplastic |
| Amperage Rating | : | 15 A |
| Body Material | : | Thermoplastic |
| Color | : | Ivory |
| Connection Type | : | Quickwire Push-In Wired, Side Wired |
| Depth | : | 1.01 in |
| Grade | : | Residential |
| Height | : | 4.2 in |
| Mounting Type | : | Screw |
| Number of Poles | : | 1 |
| Power Rating | : | 1/2 hp |
| Temperature Rating | : | -40 to 65 deg C |
| Toggle Material | : | Thermoplastic |
| Voltage Rating | : | 120 VAC |
| Width | : | 1.31 in |
| Wire Size | : | 14 to 12 AWG |
- Faster installation with combination of side wiring and quick wire push-in wiring
- Quick wire accepts conductors up to #14 AWG
- Side wire accepts conductors up to #12 AWG
- Large head triple drive combination screws (standard, Phillips, Robertson) for fast wiring installation
- Impact-resistant, durable thermoplastic toggle and frame
