Broan-NuTone® Ventilation Fan and Light Combination, 120 V, 2 A, 26 ga Steel, Polymeric, Galvanized, Matte White Grille, Ceiling Mount, 8 in Length, 8-1/4 in Width, 5-3/4 in Height, 10-5/8 in L x 11-1/8 in W Grille, 70 cfm, 4 in Duct
| Amperage Rating | : | 2 A |
| CFM Rating | : | 70 cfm |
| Color | : | Matte White Grille |
| Duct Size | : | 4 in |
| Finish | : | Galvanized |
| Grille Size | : | 10-5/8 in L x 11-1/8 in W |
| Height | : | 5-3/4 in |
| Length | : | 8 in |
| Material | : | 26 ga Steel, Polymeric |
| Mounting Type | : | Ceiling |
| Voltage Rating | : | 120 V |
| Width | : | 8-1/4 in |
- Ventilation Fan and Light Combination
- Up to 65 sq-ft bathrooms
- Horizontal duct direction

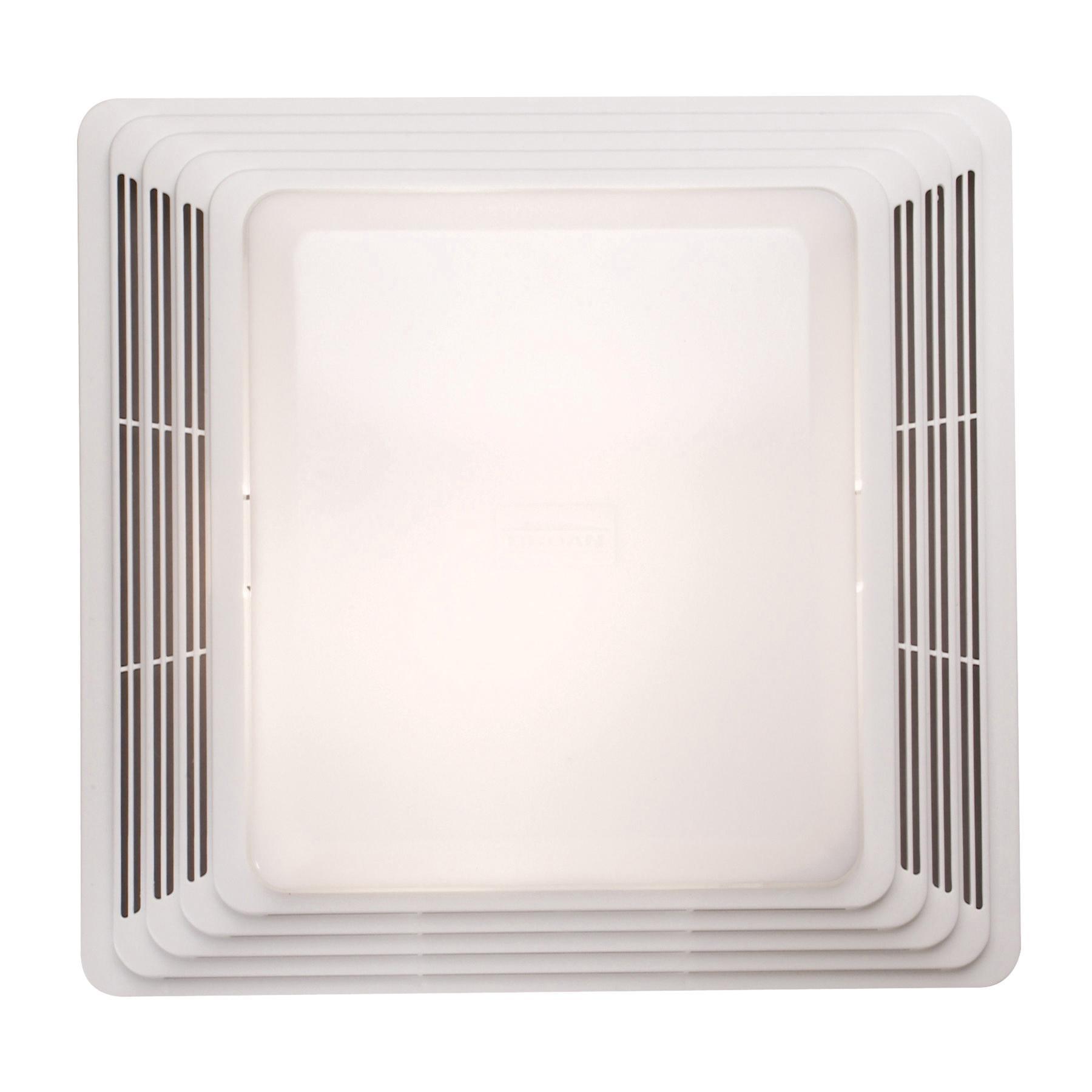

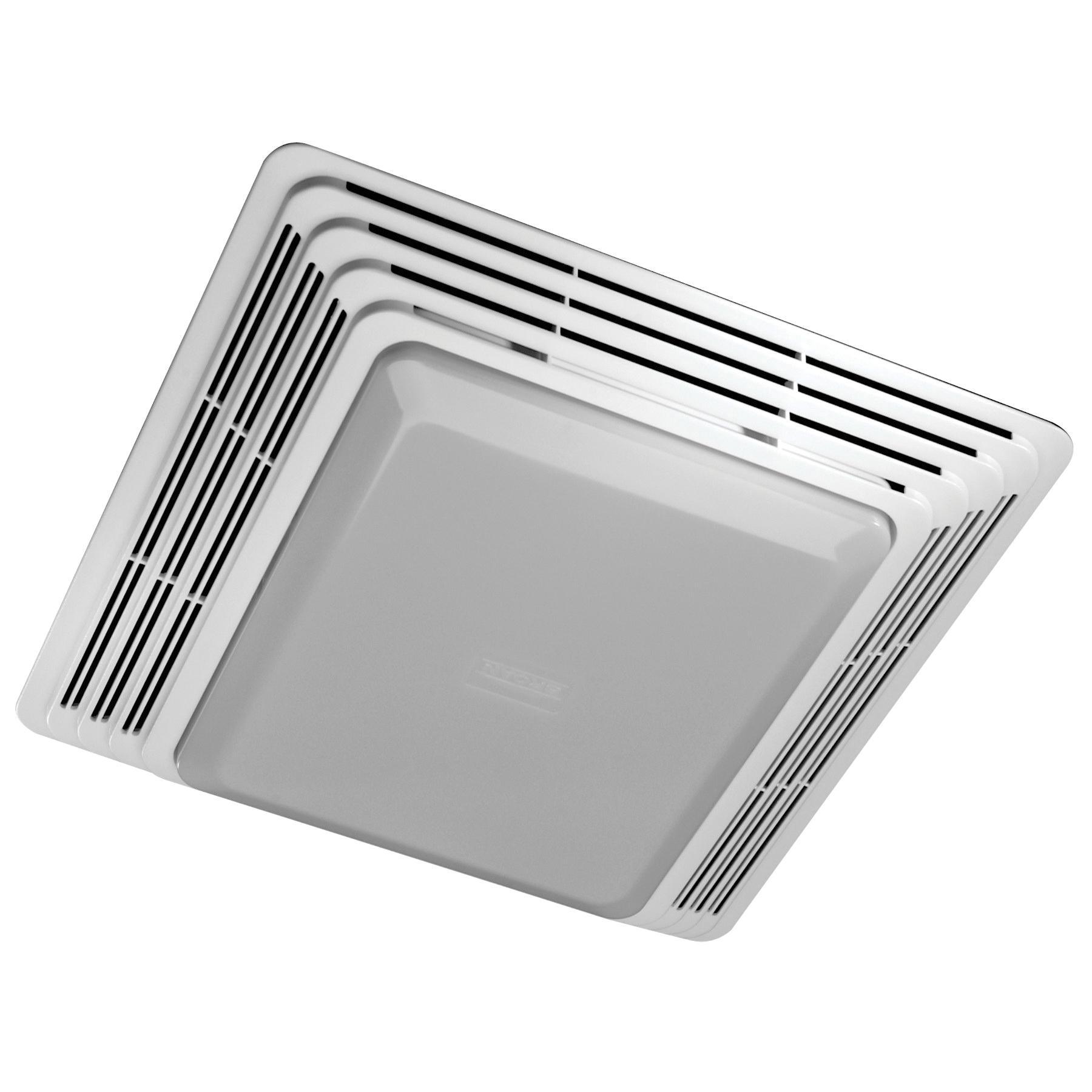

- Designer styled white polymeric grille complements virtually any decor
- Bright 100 W light capacity
- Shatter-resistant light diffusing lens
- Type IC (insulation contact)
- Plug-in, permanently lubricated motor
- Efficient polymeric fan impeller
- Mounting ears offer quick, sturdy installation
- Polymeric duct fitting with tapered sleeve for easy, positive duct connection
Instruction/Installation Manual
