GB® 554561 163582

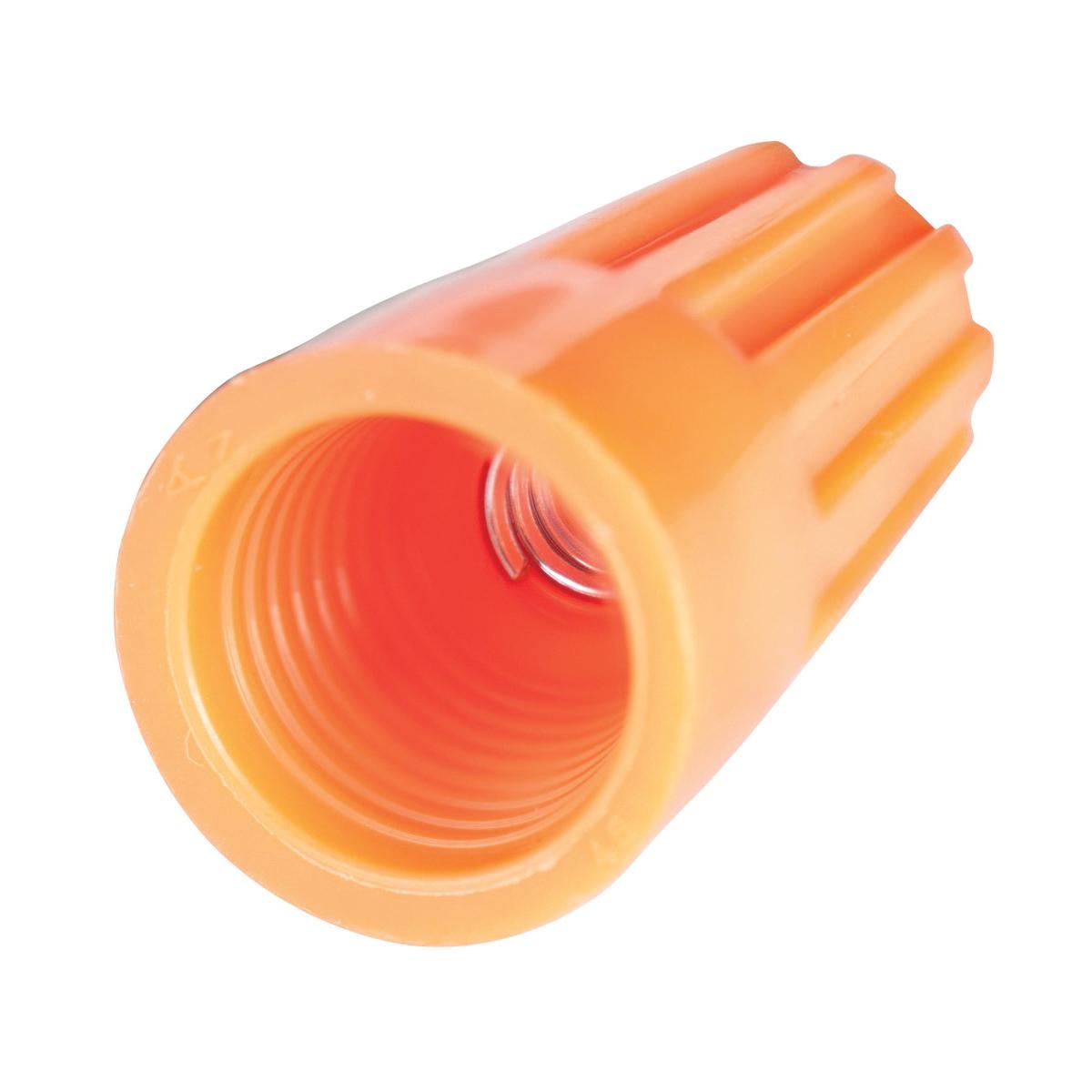

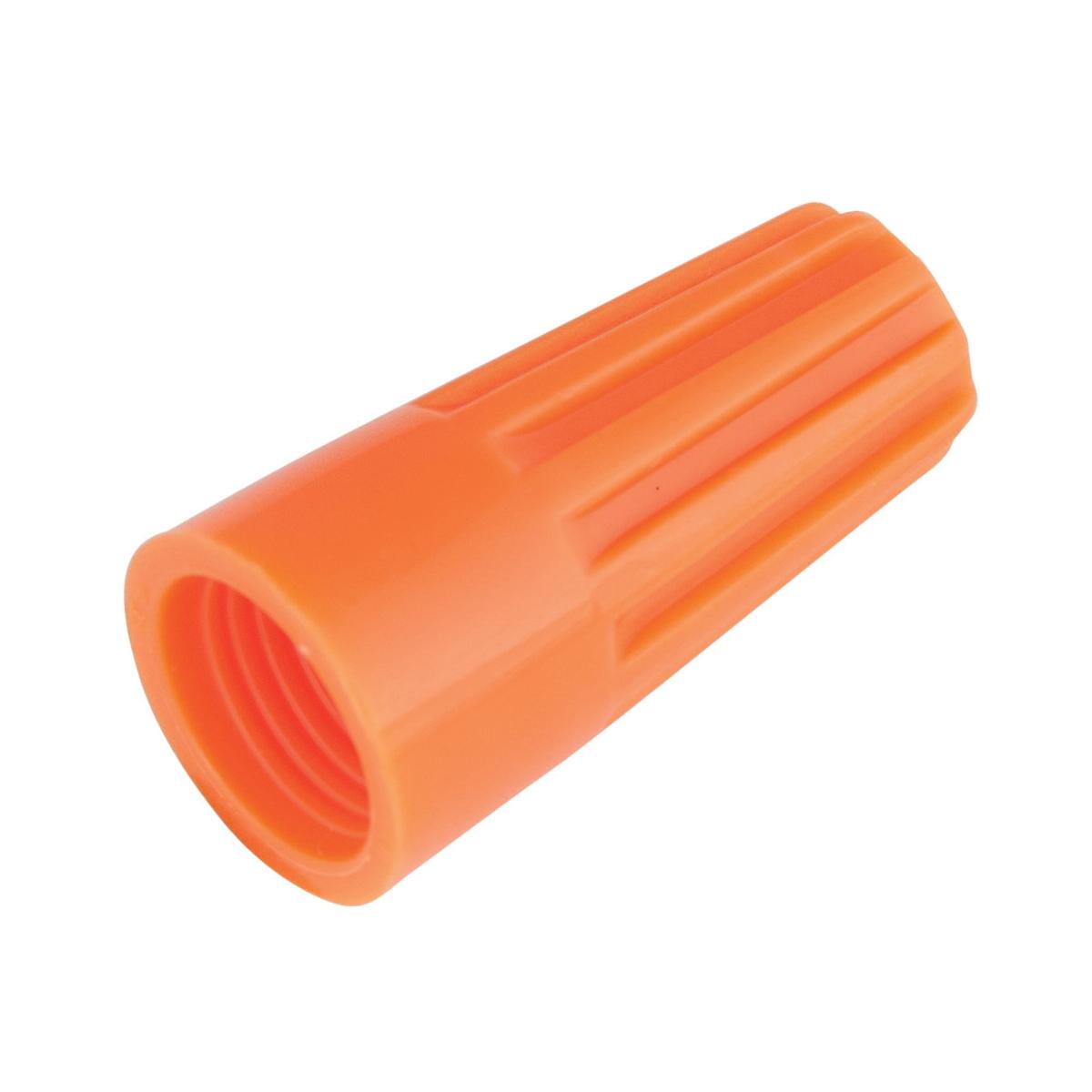

WireGard™ twist-on wire connectors are designed for general purpose applications requiring the connection of two or more copper wires. WireGard™ connectors feature a straight type polypropylene shell with side knurling for an easy grip. The inner spring is zinc-plated to resist corrosion and has a tight square profile to make quick secure contact with wires and ensure connections with positive continuity. These all-purpose connectors require fewer turns to meet required torque and meet or exceed UL pull out and dielectric test requirements. The tough thermoplastic shell shields against environmental extremes and resists chemical action from hydrocarbons, diluted acid or alkaline solutions. The high dielectric shell also features a deep skirt design to prevent exposure of bare wire. Flame-retardant properties resist heat distortion up to 105 deg C (221 deg F). Color-coded for quick and easy size selection.

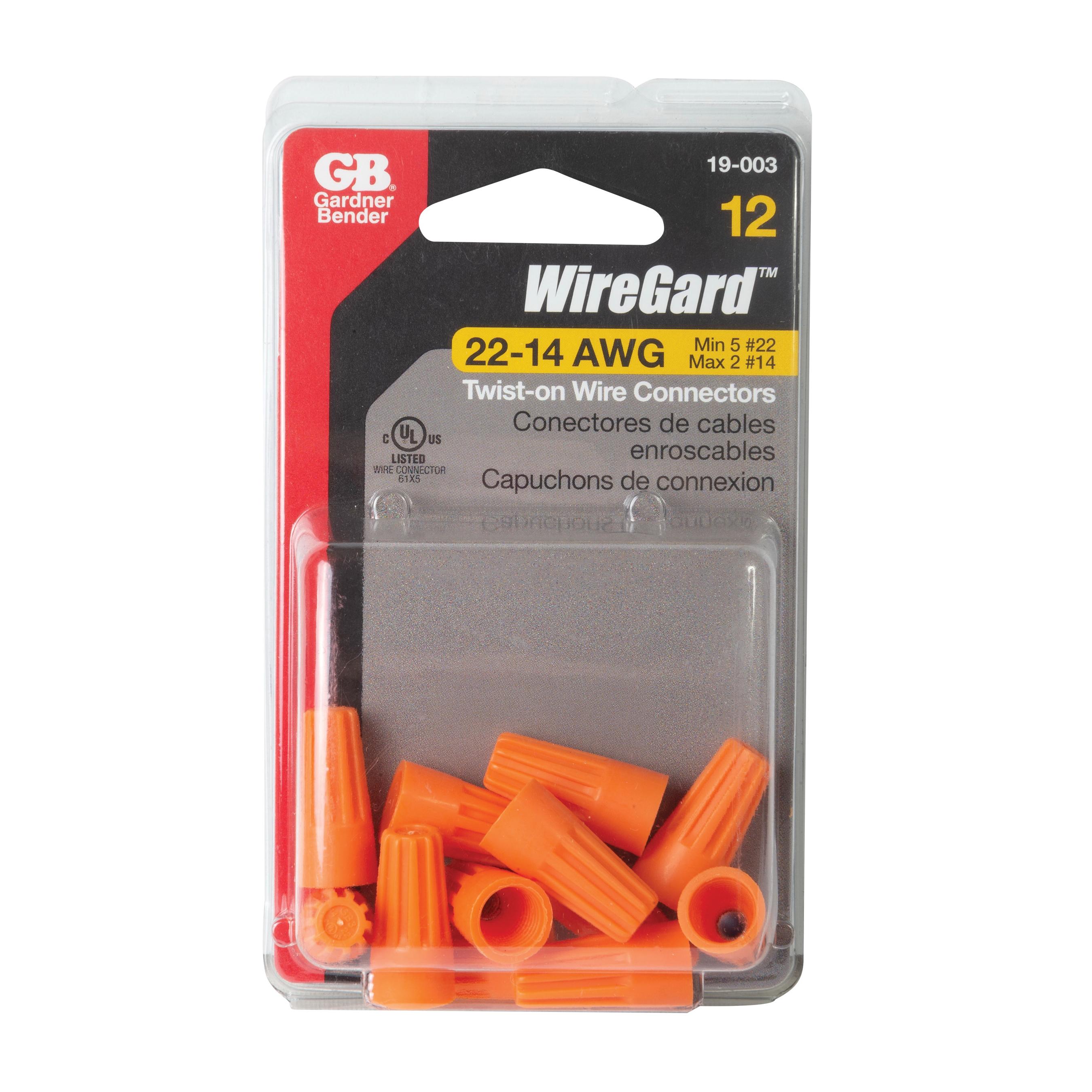

GB® High Performance Wire Connector, Model: GB-3, 22 to 14 AWG Wire, 600/1000 V, Solid, Stranded Cable, Twist-On Connection, 5/16 in Wire Strip Length, Thermoplastic, Finish: Zinc-Plated, Orange, 0.43 in Length, 0.33 in Width, 0.84 in Height, 221 deg F

• Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
• Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
• Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
• High dielectric shell features deep skirt design to prevent exposure of bare wire
• Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
• Copper to copper connections only

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/GB_554561_Specification_Sheet.pdf
