Leviton®'s line of heavy-duty specification-grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these commercial-grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

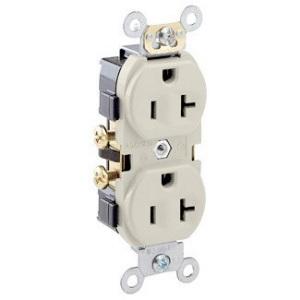

Leviton® Indented Face Straight Blade Duplex Receptacle, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, 1 ph Phase, Commercial, Specification Grade, NEMA Rating: NEMA 5-20R, 2000 V Dielectric Strength, Self-Grounding Grounding, Side Wired Terminal, 14 to 10 AWG Conductor, Thermoplastic Housing, Brass Contact, Steel Strap, Light Almond, -40 to 60 deg C, 4.06 in Length, 1.53 in Width, 0.84 in Height
| Amperage Rating | : | 20 A |
| Color | : | Light Almond |
| Conductor Size | : | 14 to 10 AWG |
| Contact Material | : | Brass |
| Dielectric Strength | : | 2000 V |
| Grade | : | Commercial, Specification |
| Grounding | : | Self-Grounding |
| HP Rating | : | 1 hp |
| Height | : | 0.84 in |
| Housing Material | : | Thermoplastic |
| Length | : | 4.06 in |
| NEMA Rating | : | NEMA 5-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Phase | : | 1 ph |
| Strap Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Side Wired |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.53 in |
